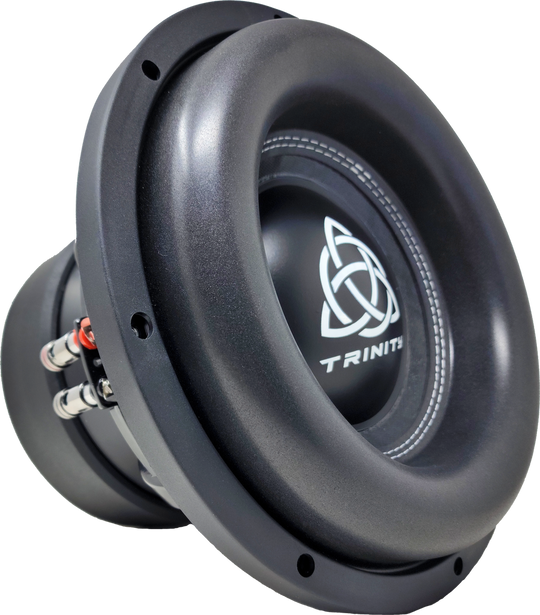

Trinity Audio M series 12" Front

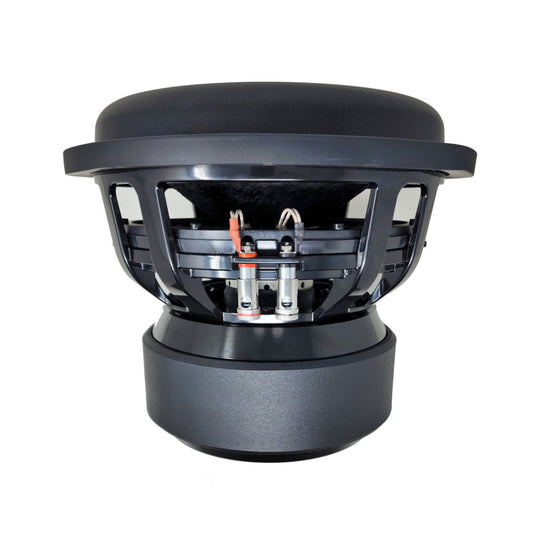

Trinity Audio M series 12" Terminals

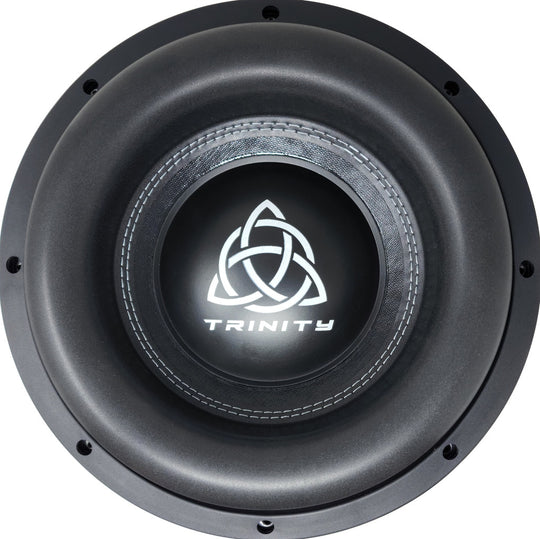

Trinity Audio M series 12" Top

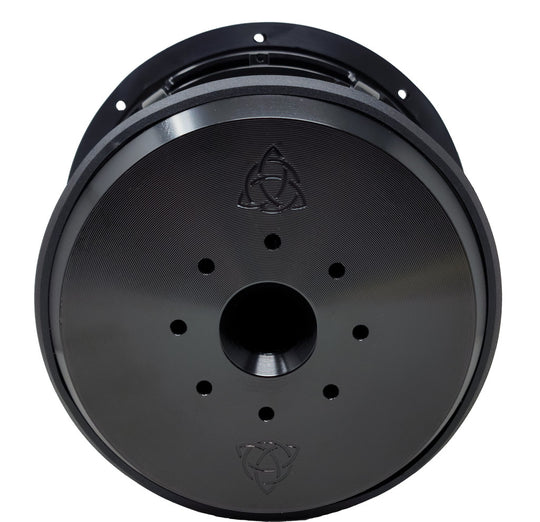

Trinity Audio M series 12" Bottom

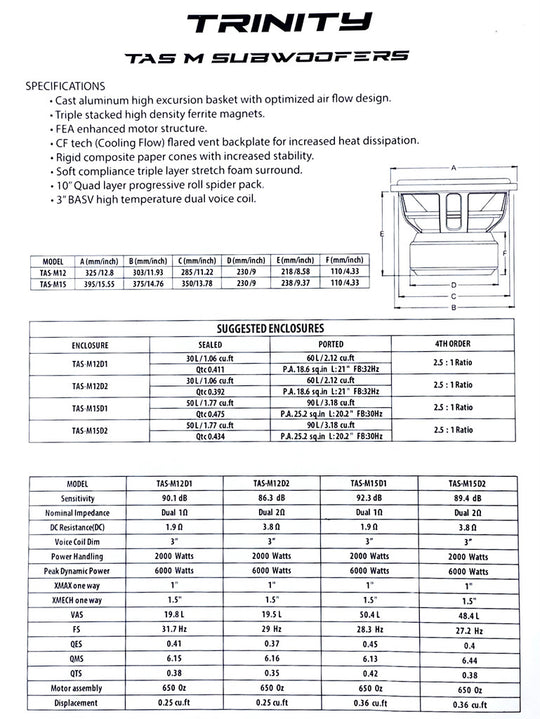

Trinity Audio M series 12" PaperWork
Trinity Audio M series 12" Front
Trinity Audio M series 12" Terminals
Trinity Audio M series 12" Top
Trinity Audio M series 12" Bottom
Trinity Audio M series 12" PaperWork
Trinity Audio - SHCA

Trinity Audio 12" Subwoofer 2000 Watts

  • Free shipping*
$559.99
/

Trinity Audio Solutions

M-Series 12" Subwoofer

TAS-M12

SPECIFICATIONS

  • Available in Dual 1 ohm or Dual 2 ohm
  • Cast aluminum high excursion basket with optimized air flow design.
  • Triple stacked high density ferrite magnets.
  •  FEA enhanced motor structure.
  •  CF tech (Cooling Flow) flared vent backplate for increased heat dissipation.
  •  Rigid composite paper cones with increased stability.
  •  Soft compliance triple layer stretch foam surround.
  •  10" Quad layer progressive roll spider pack.
  •  3" BASV high temperature dual voice coil.
Suggested Enclosures
Enclosures Sealed  Ported 4th Order
TAS-M12D1 30L/ 1.06 cu.ft 60L/ 2.12 cu.ft 2.5:1 Ratio
Qtc 0.411 P.A. 18.6 sq.in L:21" FB:32hz 2.5:1 Ratio
TAS-M12D2 30L/ 1.06 cu.ft 60L/ 2.12 cu.ft 2.5:1 Ratio
Qtc 0.392 P.A. 18.6 sq.in L:21" FB:32hz 2.5:1 Ratio




Model TAS-M12D1 TAS-M12D2
Sensitivity 90.1 dB 86.3 dB
Norminal Impedance Dual 1 Ohm Dual 2 ohm
DC Resistance

1.9 ohm

 3.8 ohm

Voice Coil Dim

 3" 3"
Power Handling 2000 Watts 2000 Watts
Peak Dynamic Power 6000 Watts 6000 Watts
XMAX one way

1"

 1"
Xmech one way  1.5"

1.5"
VAS

19.8L

 19.5L
FS 31.7 Hz 29 Hz
QES 0.41 .037
QMS 6.15 6.16
QTS 0.38 0.35
Motor Assembly 650 oz 650 oz
Displacement  .25 cu.ft .25 cu.ft

As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.

*Shipping is free in the lower 48 states, unless otherwise stated.
