G8H- 2 way Coaxial Horn 8" Speaker (pair)
Gately Audio G8H Speaker
Neodymium magnet motor structure
Rubber speaker surround
Aluminum Basket
Exceptional Power handling
Carbon Fiber Cone Material With Coating
-Comes with Two Way Crossovers
Nominal Power | 150W*2
Peak Power | 300W*2
Sensitivity | 92dB
Cone | Carbon Fiber
Basket | Aluminum
Surround | Rubber
Impedance | 4 Ohms
Frequency Response | 40Hz-20KHz
VC Diameter | 50mm (1.9685")
Winding material | EIVS
Magnet | Neodymium
Magnet Diameter | 115mm (4.52756")
Fs | 66.4 Hz
Qms | 3.03
Qes | 0.36
Qts | 0.32
Cms | 0.26mm/N
Vas | 12.34L
Overall Diameter | 200mm / 7.87"
Bolt Circle Diameter | 185mm / 7.28"
Mounting Depth | 92.5mm / 3.64"
Cutout Diameter | 172mm / 6.77"
The relentless pursuit of awesomeness
Bobby Gately built his first subwoofer enclosure at 14 on the front lawn of his family home — borrowed tools, Home Depot wood, and a relentless drive to make something great. That hasn’t changed. Gately Audio is the result of decades of obsession, innovation, and a refusal to settle for anything less than the best
Gately Neo 4 Carhartt Hoodie
Rep the brand in serious style with the Gately Neo 4 Carhartt Hoodie. Built on Carhartt's legendary Iconic K288 Logo Sweatshirt in Atomic Blue, this hoodie features the Gately logo over the heart and a bold Relentless NEO4 subwoofer graphic across the back. Bobby wearing a size Large. While supplies last.
Gately Swag
Built to Hit Hard. Designed to Last.
Alpha & Relentless
850w

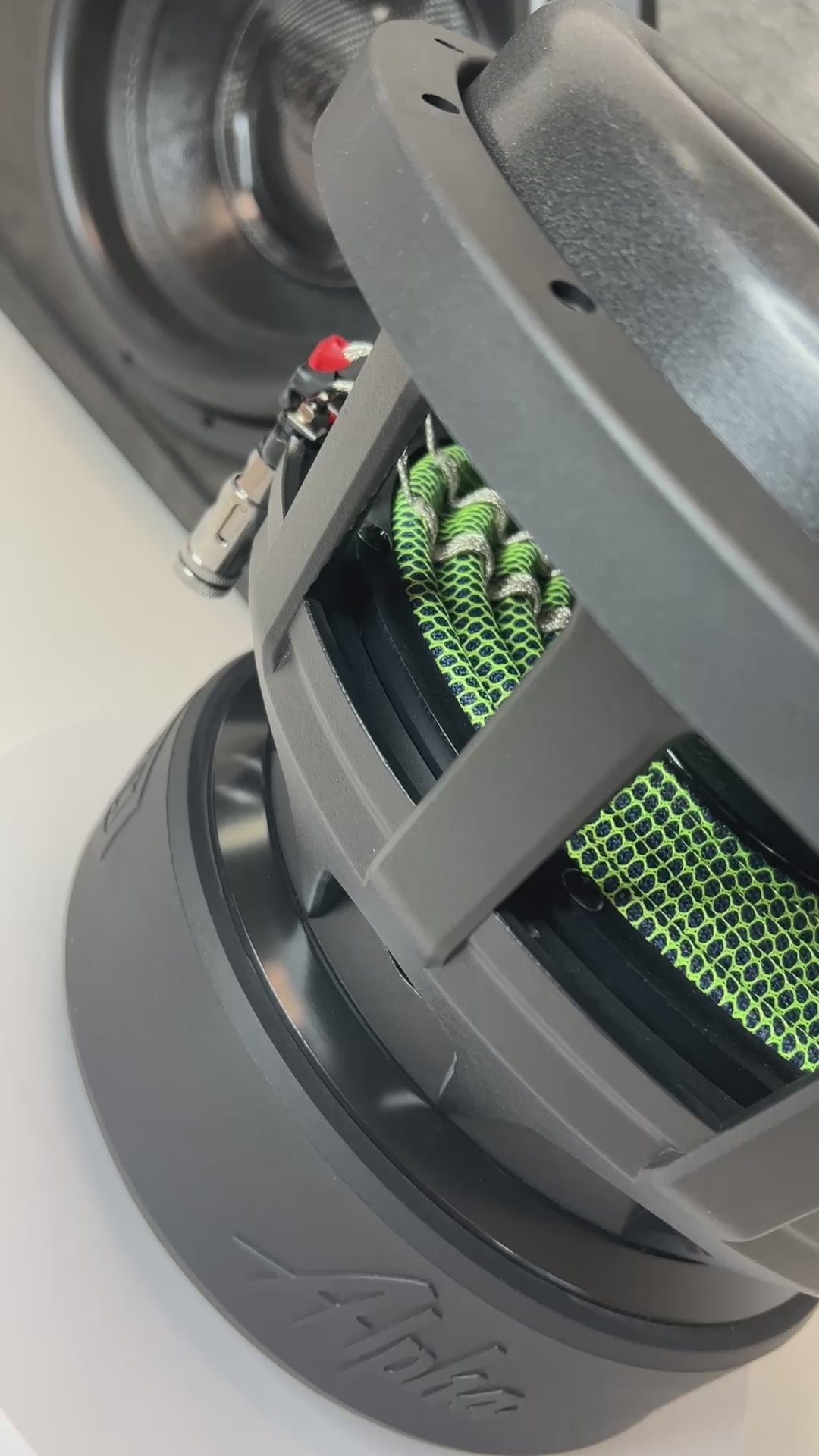

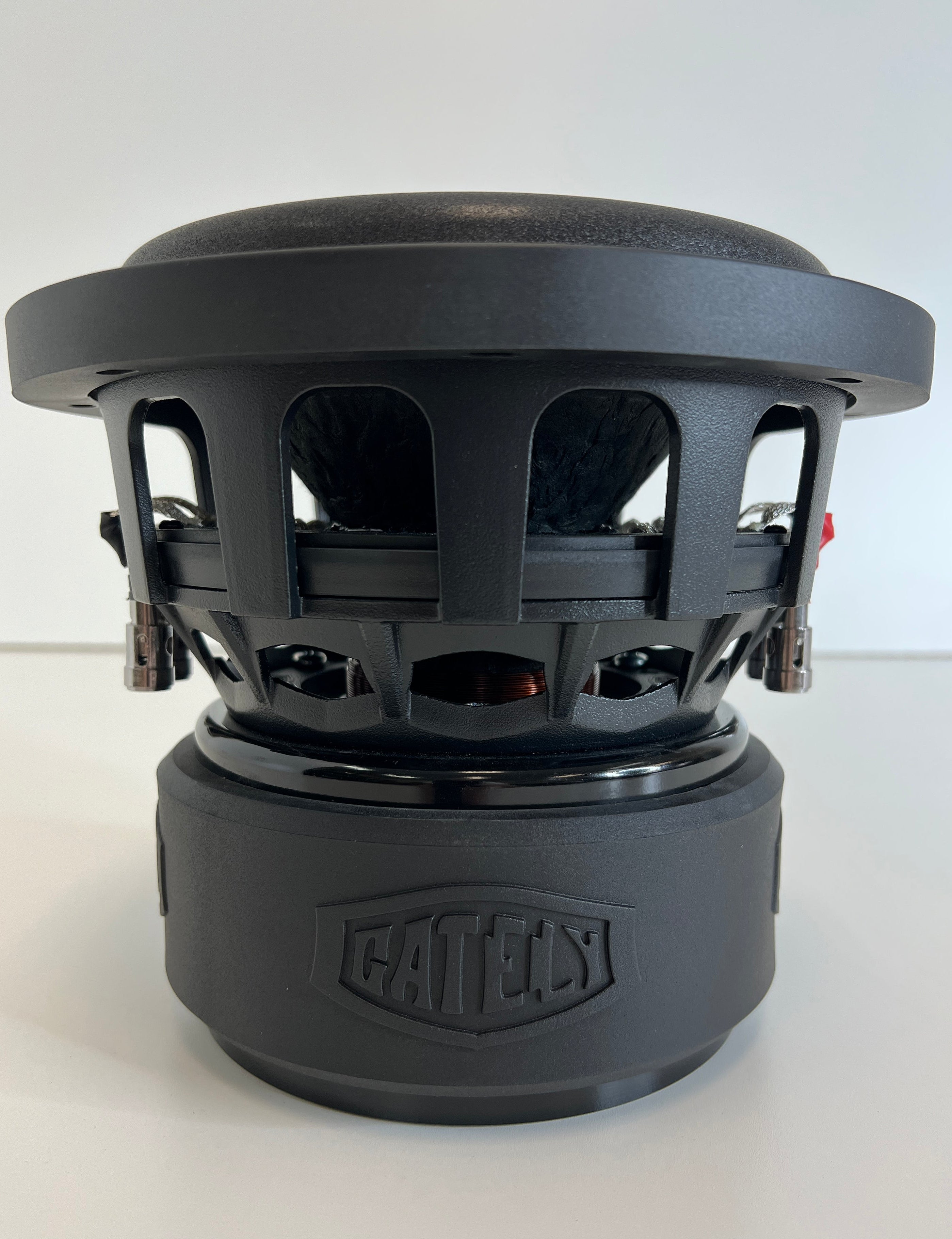

Alpha 8"
1200w

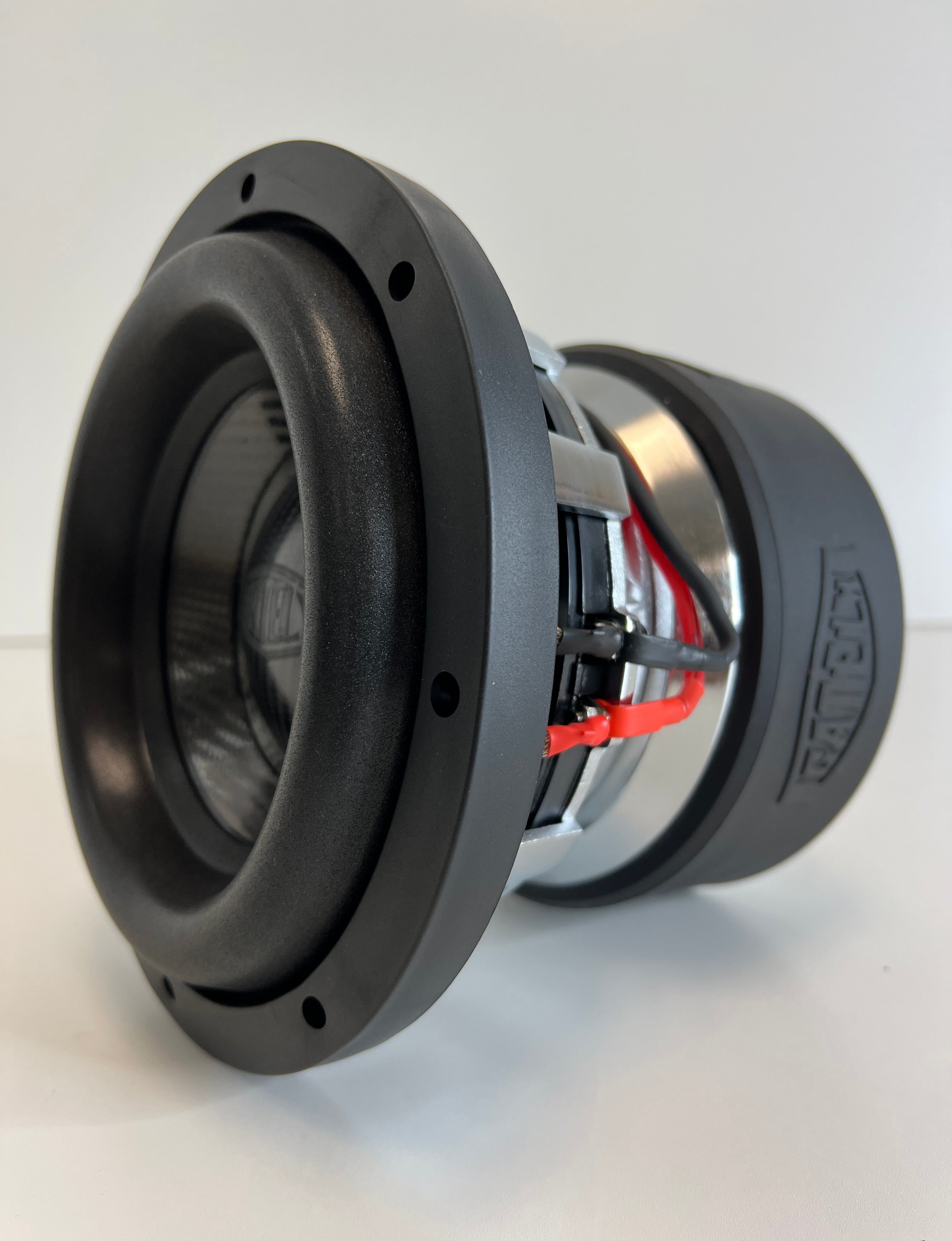

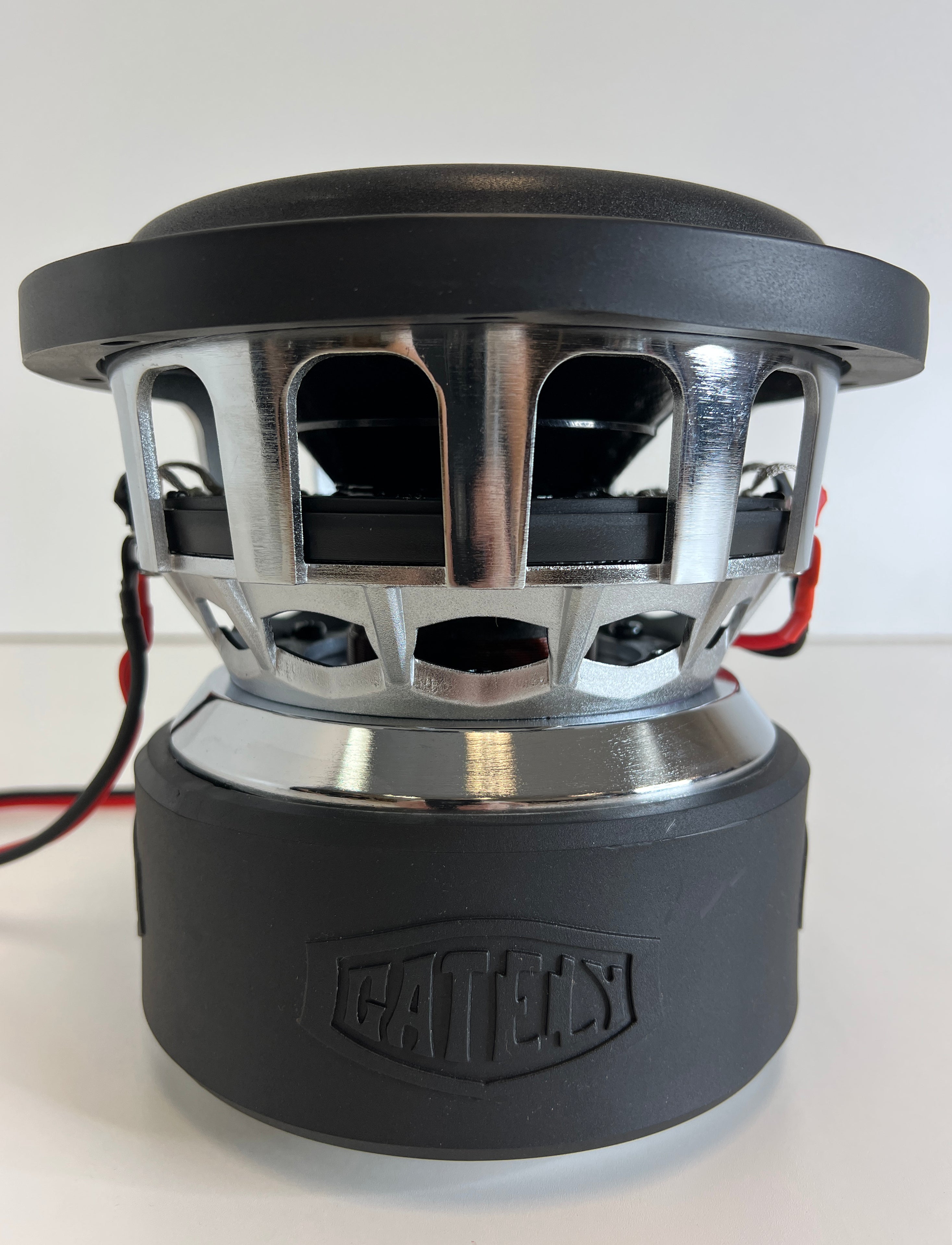

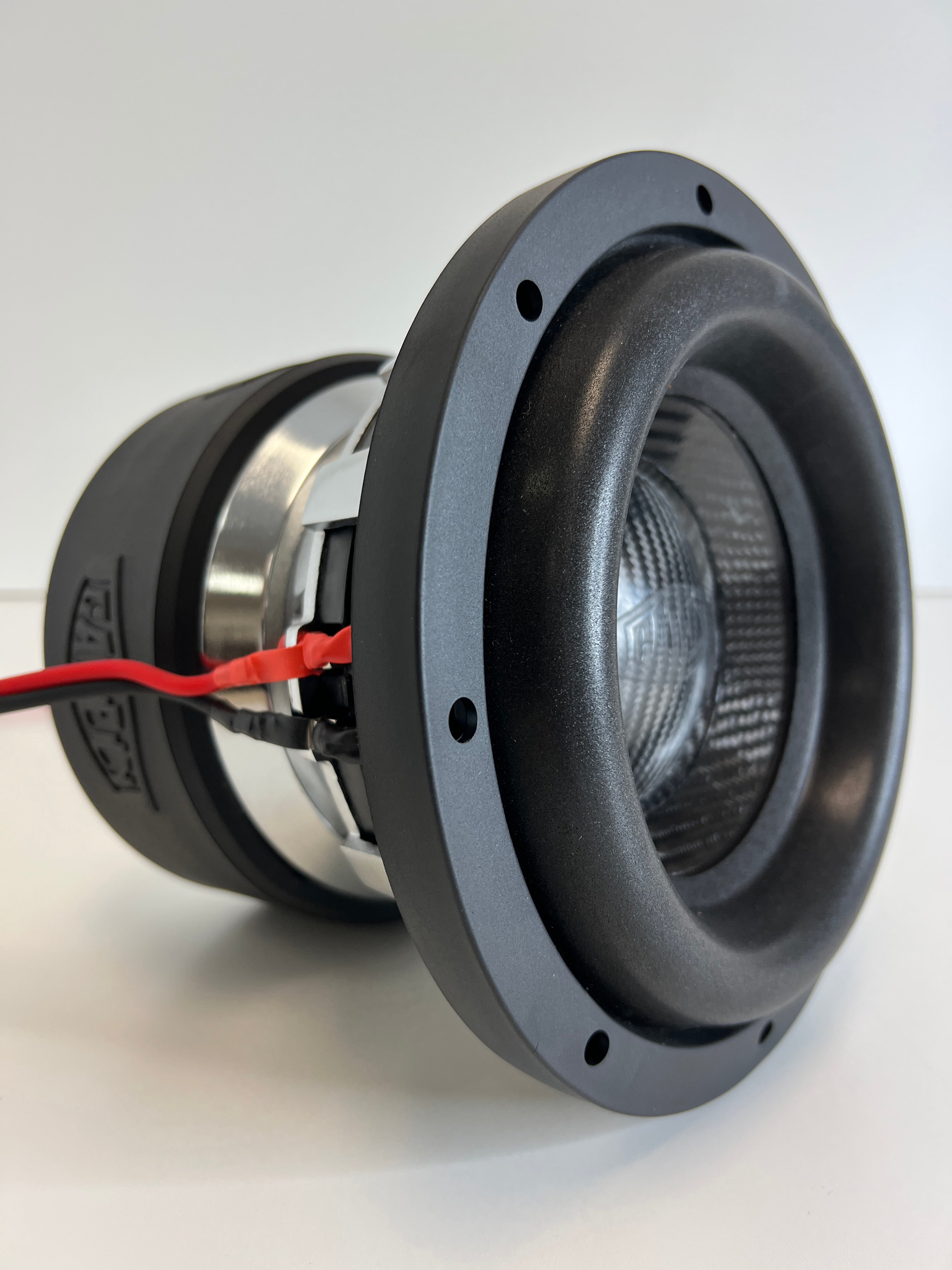

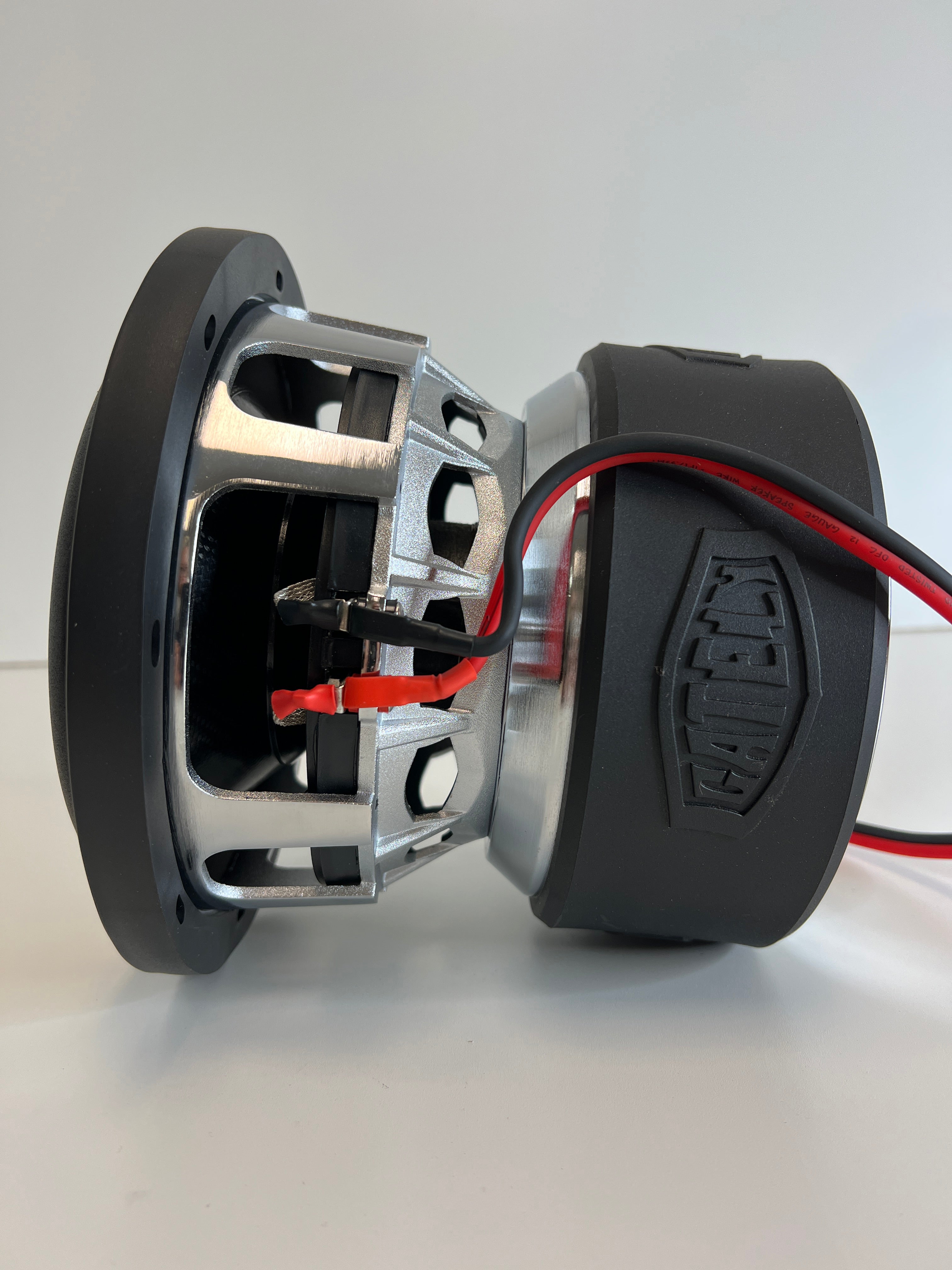

Relentless 8"
