Gately Audio

Gately - Alpha 12" V2 Subwoofer (2000w)

  • Free shipping*
$619.00
/

GATELY AUDIO Alpha series V2 12" subwoofer.

Cutout Diameter 11.125"
Mounting Depth 7.75"

3" 4 layer voice coil


8.5" Y35 250oz Ferrite Motor

GATELY shield embossed carbon fiber dustcap

2000 watt RMS

 Weight: 50 lbs

 SPECIFICATIONS



Watts

2000 RMS
MIN INTERNAL VOL 1.75 cubic feet
MAX INTERNAL VOL 2.25 cubic feet
MIN Port Area 27 sq inches
MAX Port Area 33 sq inches

Alpha 12" V2 D1
f(s) = 47.24 Hz
Q(ts) = 0.6364
V(as) = 13.64 liters (0.4817 cubic feet)
SPL = 85.1 dB SPL 1W/1m
Nominal Diam. = 0 mm (12 in.)
Model: Alpha 12 D1
R(e) = 2.227 Ohms
Q(es) = 0.6873
Piston Diam. = 260.4 mm (10.25 in.)
SPL = 90.65 dB SPL 2.83 Vrms
C(ms) = 0.034 mm/N
Z(max) = 30.06 Ohms
L(e) = 1.154 mH at 10kHz
Q(ms) = 8.59
BL = 17.85
n(0) = 0.1995 %
M(ms) = 331.2 grams
--------------------------------------------------
Alpha 12" V2 D2
f(s) = 48.85 Hz
Q(ts) = 0.6873
V(as) = 14.11 liters (0.4983 cubic feet)
SPL = 85.23 dB SPL 1W/1m
Nominal Diam. = 0 mm (12 in.)
Model: Alpha 12 D2
R(e) = 4.464 Ohms
Q(es) = 0.763
Piston Diam. = 260.4 mm (10.25 in.)
SPL = 87.76 dB SPL 2.83 Vrms
C(ms) = 0.035 mm/N
Z(max) = 44.98 Ohms
L(e) = 1.756 mH at 10kHz
Q(ms) = 6.926
BL = 23.19
n(0) = 0.2056 %
M(ms) = 299.4 grams
--------------------------------------------------
Alpha 12" V2 D3
f(s) = 48.21 Hz
Q(ts) = 0.7384
V(as) = 14.85 liters (0.5242 cubic feet)
SPL = 84.99 dB SPL 1W/1m
Nominal Diam. = 0 mm (12 in.)
Model: Alpha 12 D3
R(e) = 6.642 Ohms
Q(es) = 0.815
Piston Diam. = 260.4 mm (10.25 in.)
SPL = 85.8 dB SPL 2.83 Vrms
C(ms) = 0.037 mm/N
Z(max) = 70.68 Ohms
L(e) = 2.376 mH at 10kHz
Q(ms) = 7.857
BL = 26.86
n(0) = 0.1947 %
M(ms) = 292.2 grams


As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.

*Shipping is free in the lower 48 states, unless otherwise stated.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
E
Elihu Flores
Best of the Best

Best subwoofer I had ever bought. Best quality and best sound!!

Thank you for taking time to leave a review. We love hearing from customers who are super happy with our products. Reach out if you wever have any questions. :-)

W
Wayne Lyons
Alpha 12” v2 subwoofer

Amazing subwoofer!! These subs hit hard!

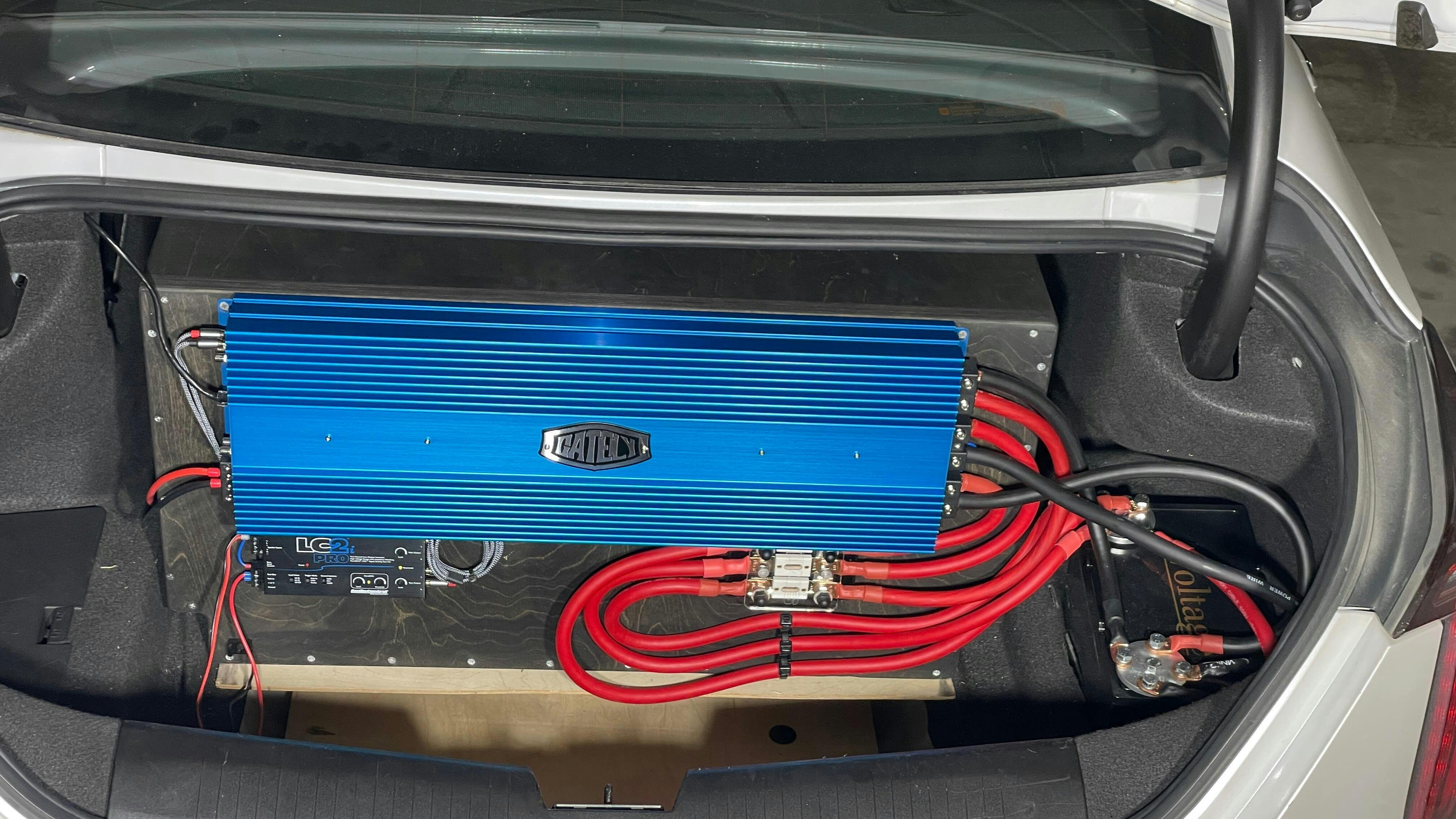

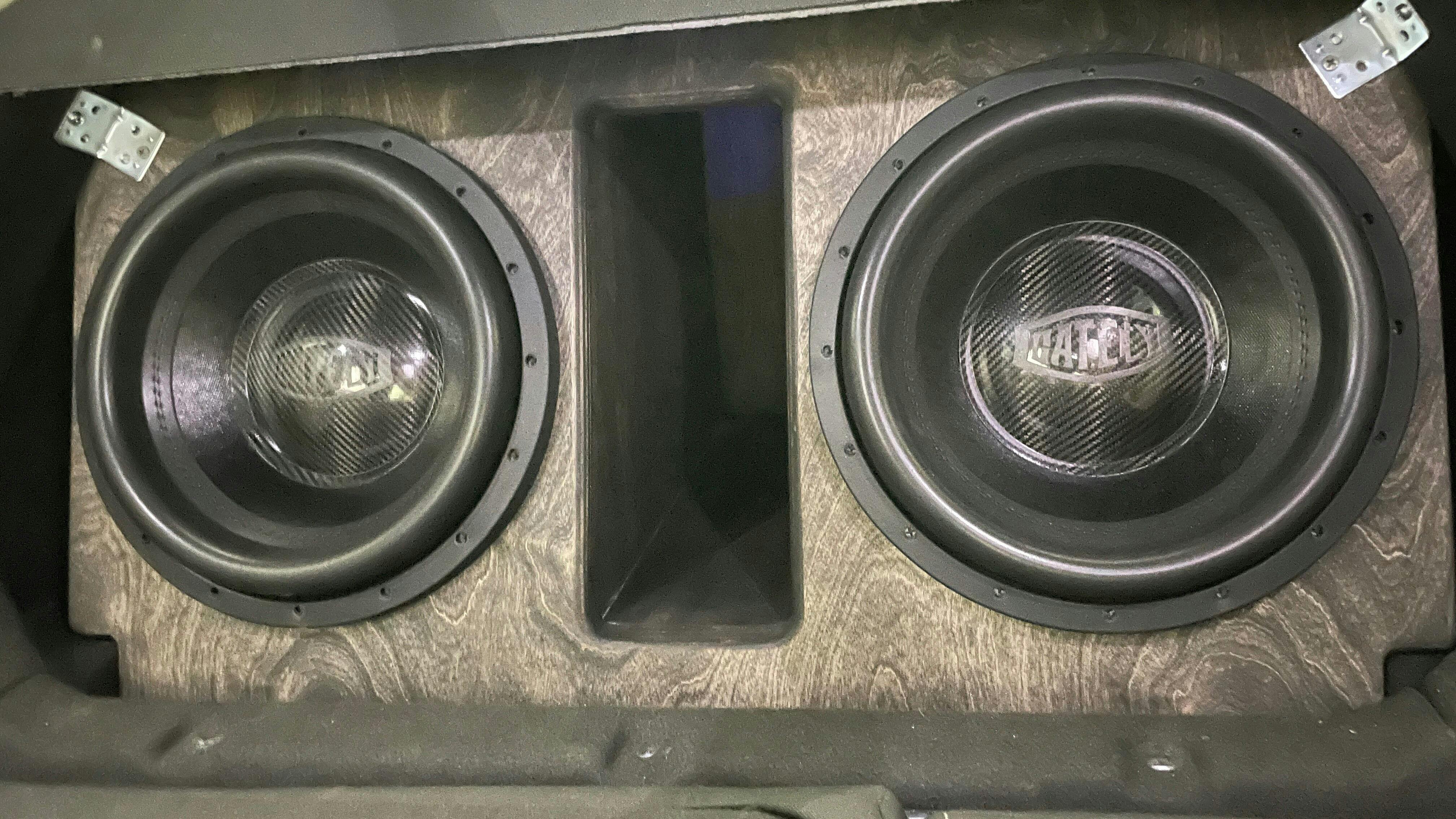

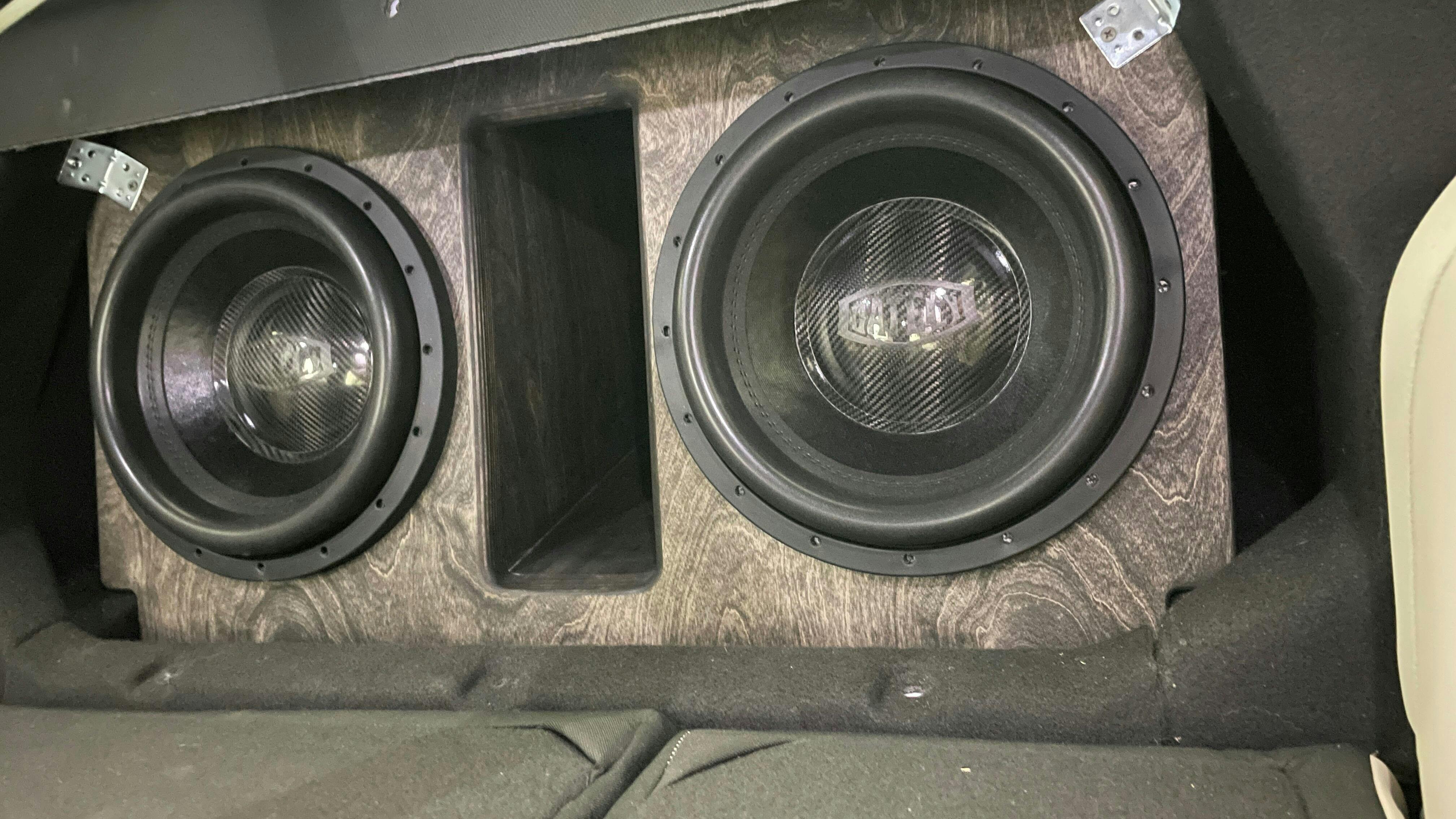

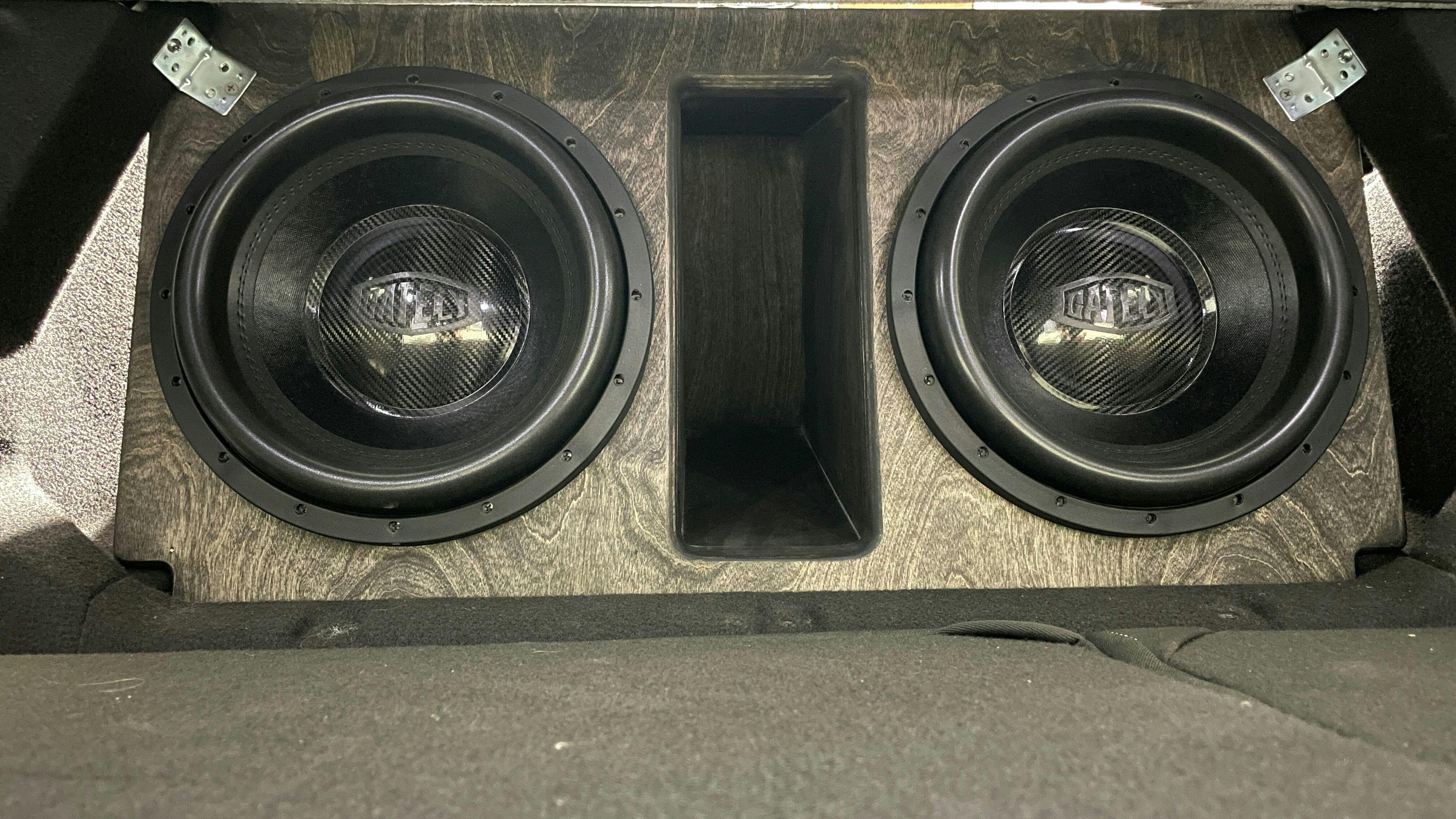

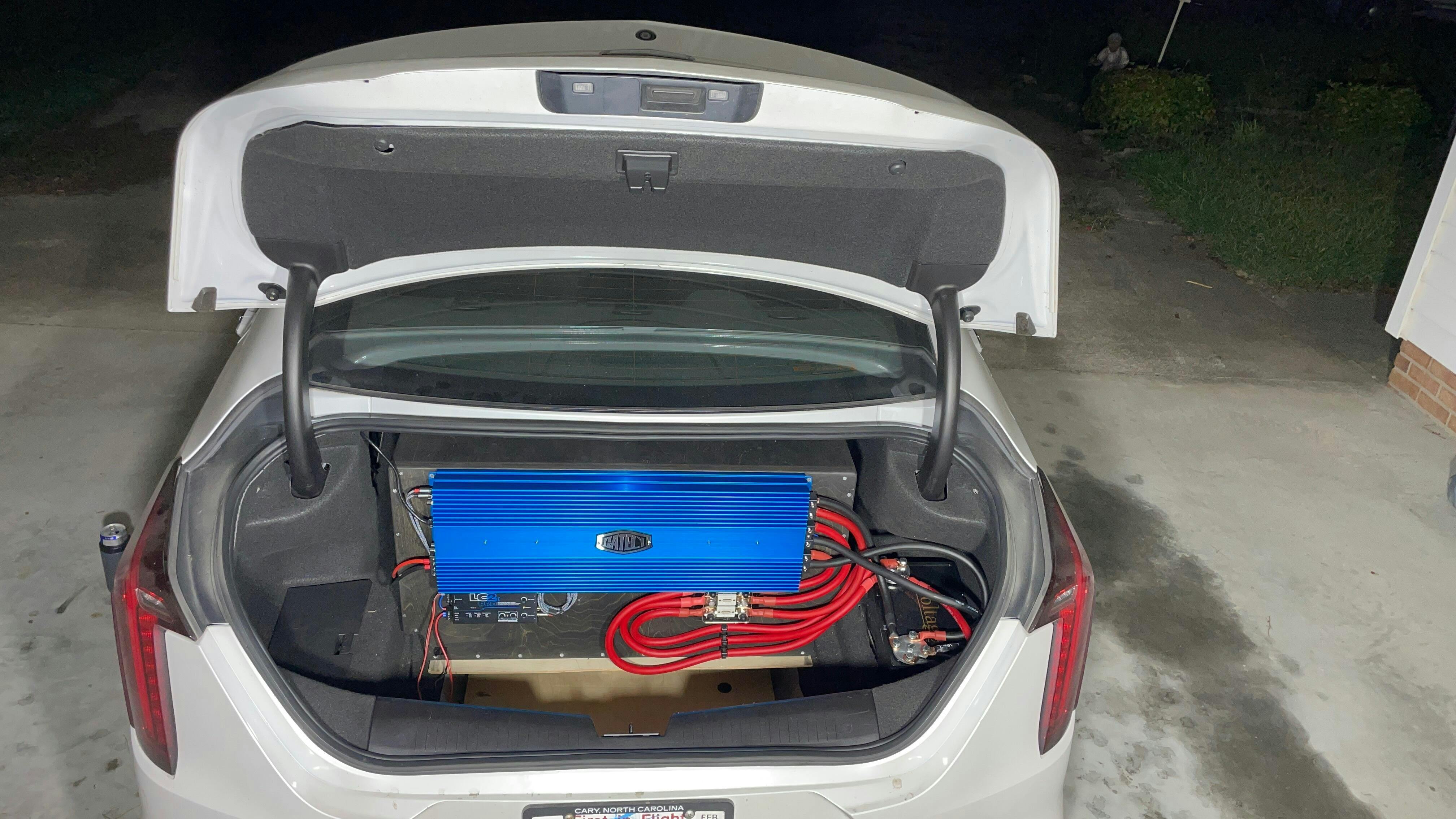

I have this sub paired with a 1.75 cf Gately enclosure and it sounds amazing. I am using a 1800 watt kicker amplifier and I am extremely happy with the power handling and the sound. I highly recommend this subwoofer, I have many different subs from other manufacturers but this one is my favorite. Buy one!!
