Regular price$354.99
/

  • Free shipping*

The level 3 sub is the ultimate daily driver sub. It puts out the low lows with lots of output designed for sealed or ported enclosures.

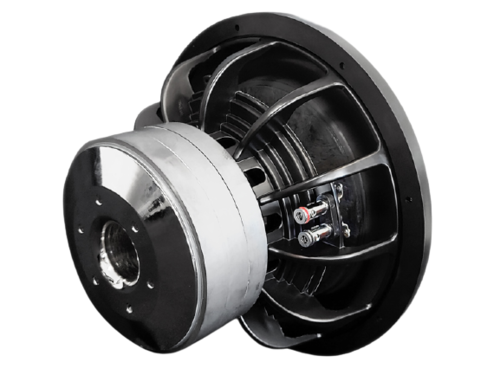

The Level 3 sub is a triple stacked FEA optimized motor wrapped in a magnet boot, chrome top plate and T yoke. The deep gap offers more X-max for a total of 22.5mm.

This sub also comes with dual upgraded progressive spiders, cone, surround, 3" voice coil, cast basket,
push terminals, and upgraded sewn down  lead wire. We give the Level 3 a power rating of 900w RMS/1800w peak.


Made with high quality parts and hand built in the USA, this is probably our #1 seller.

Key Features
• Extremely rigid non-pressed paper cone assembly
• Multilayered polymer foam surround
• Polypropylene dust cover with embossed DC logo
• Dual 8” OD semi cup progressive roll spider
• Extra heavy duty interweaved tinsel lead wire sewn to spider
• Cast aluminum black frame
• FEA analyzed and optimized motor assembly – Fully CNC machined
• Rubber mounting gasket
• Chrome spring loaded push terminals
• Dual 4 ohm 3” Hi-temp Aluminum voice coil wound on black anodized voice coil former
• Rubber magnet cover

  10" 12" 15" 18"
Mounting Depth 6.25" 6.75" 8" 9.5"
Mounting Hole Diameter 9.35" 11" 14" 16.75"
Outside Driver Diameter 11" 12.5" 15.7" 18.5"
Motor Width 7" 7" 7" 7"
Weight 20lbs 20.5lbs 21.5lbs 22lbs
VC Diameter 3" 3" 3" 3"
Displacement .15³ ft .16³ ft .18³ ft .22³ ft
Magnet Weight 18lbs 18lbs 18lbs 18lbs
Power Handling RMS/Peak 900/1800 900/1800 900/1800 900/1800
Impedance (Ohm) D1/D2/D4 D1/D2/D4 D1/D2/D4 D1/D2/D4
Sd 324cm² 481cm² 823cm² 1217cm²
Vas 13.16 liters 28.99 liters 84.88 liters 185.6 liters
Cms 0.09 mm/N 0.09 mm/N 0.09 mm/N 0.09 mm/N
Mms 190 g 225 g  295 g 305 g
Fs 38.5 35.4 30.9 30.4
BL 17.2 N/A 17.2 N/A 17.2 N/A 17.2 N/A
Re 3.6 Ohm 3.6 Ohm 3.6 Ohm 3.6 Ohm
Le 3.5 mH 3.5 mH 3.5 mH 3.5 mH
Qms 7.66 8.33 8.18 8.32
Qes 0.567 0.617 0.706 0.718
Qts 0.528 0.574 0.65 0.661
Xmax 23 mm 23 mm 23 mm 23 mm
Ref SPL @ 1 watt 83.1 dB (86.6@2.83V) 85 dB (88.5@2.83V) 87.3 dB  (90.8@2.83V) 90.4 dB (93.9@2.83V)
Suggested Sealed .65³ ft 1³ ft 2³ ft 4³ ft
Suggested Ported  1³ ft 1.5³ ft 3³ ft 6³ ft

As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.

*Shipping is free in the lower 48 states, unless otherwise stated.
