Regular price$399.95
/

  • Free shipping*

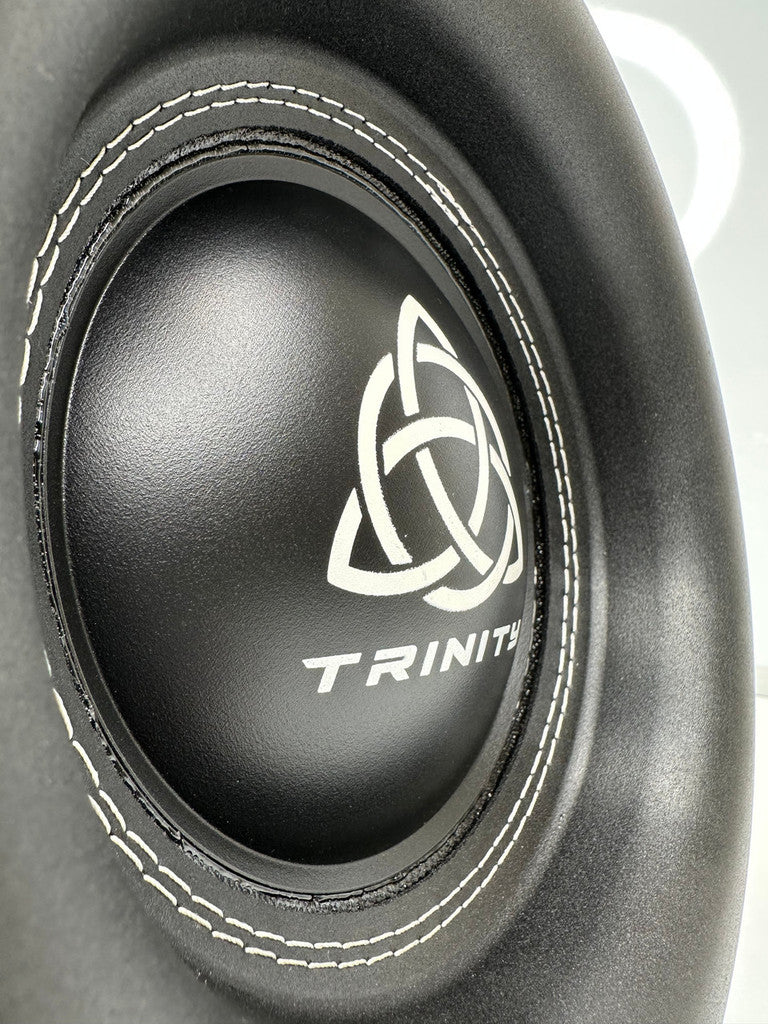

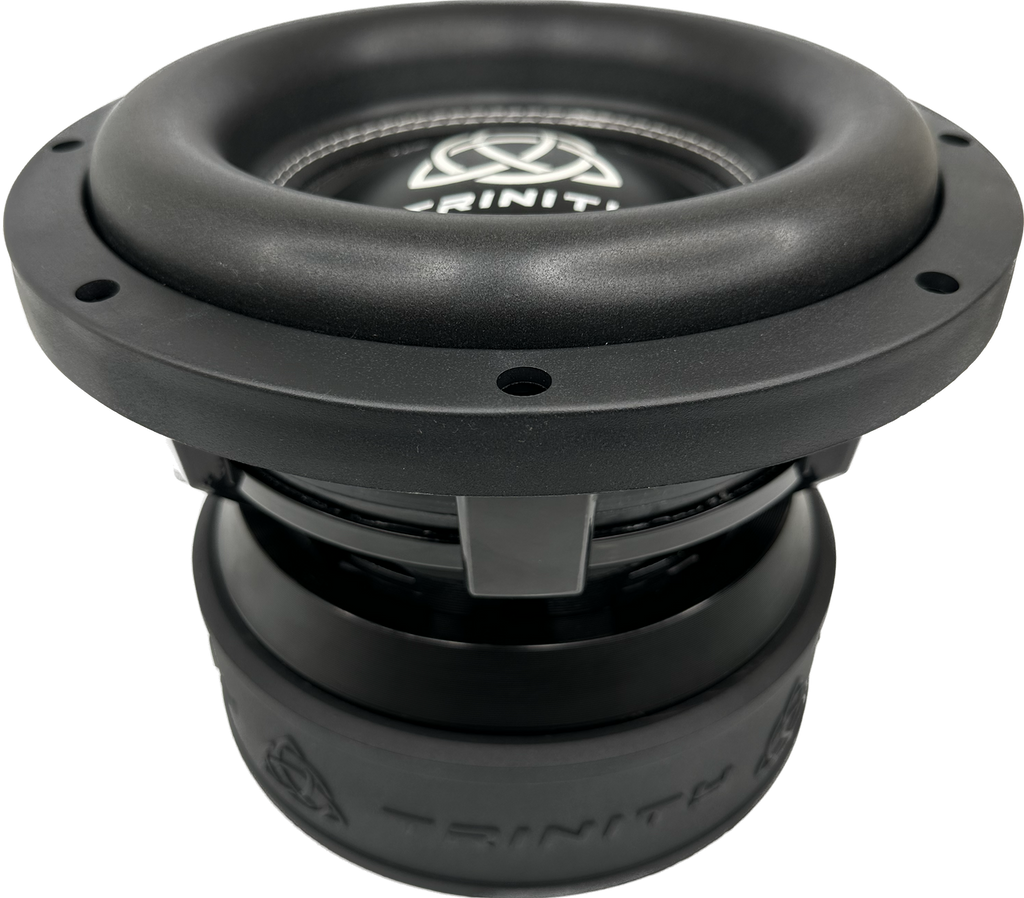

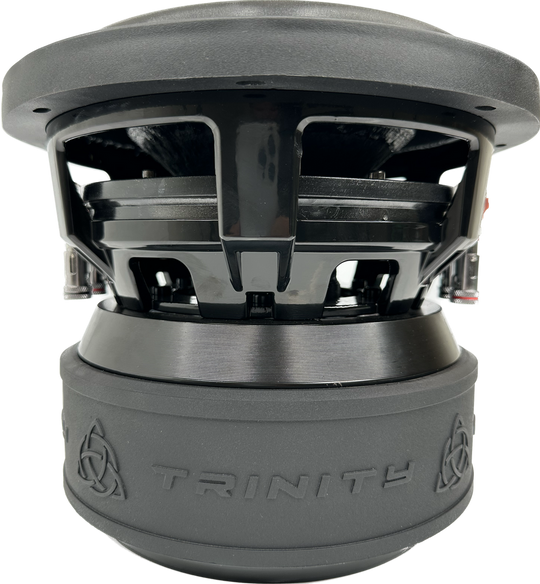

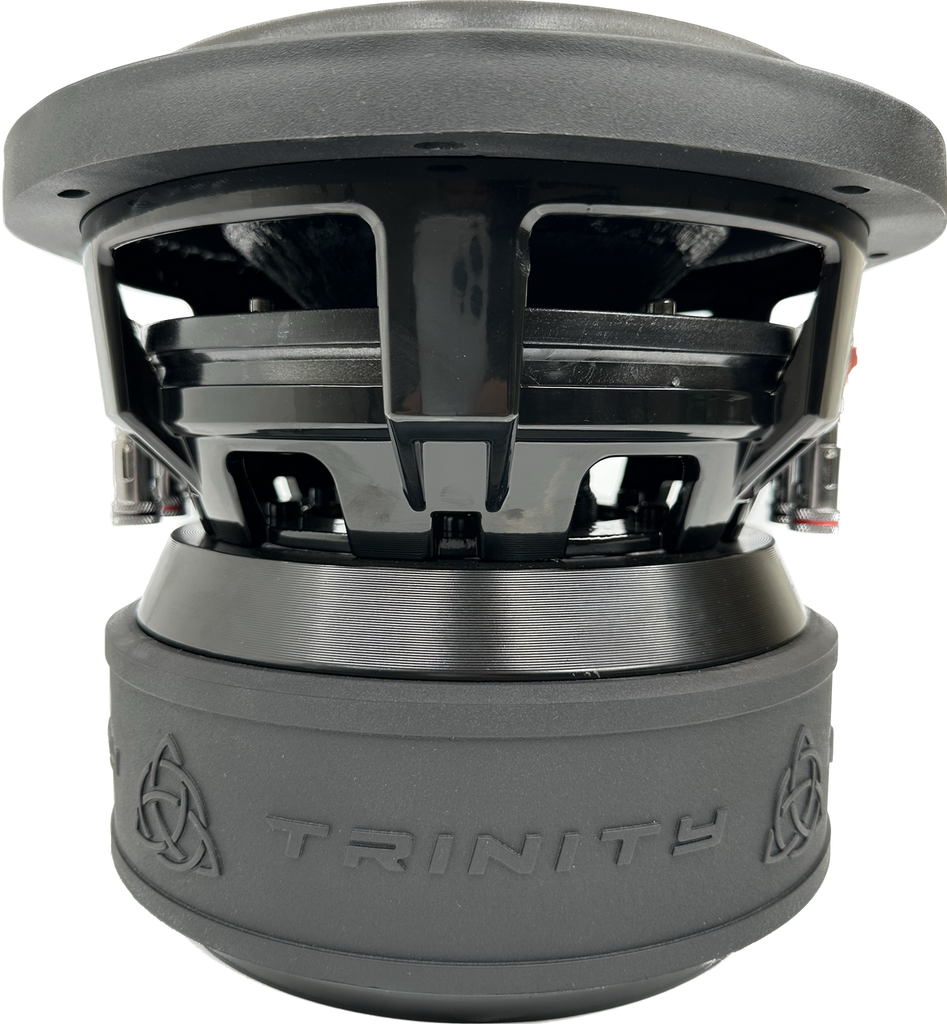

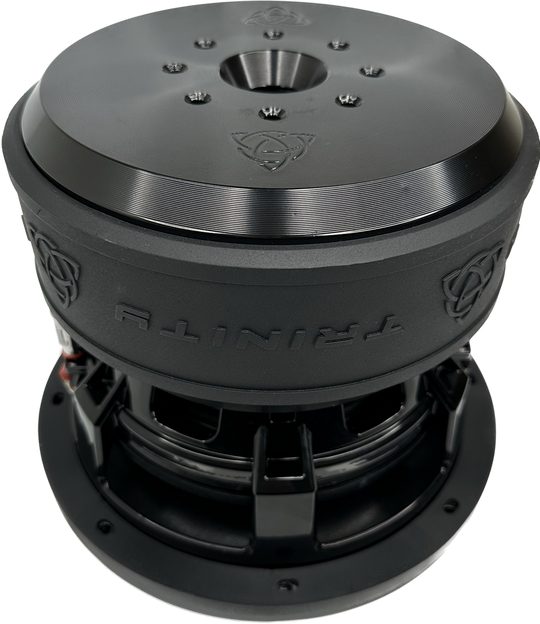

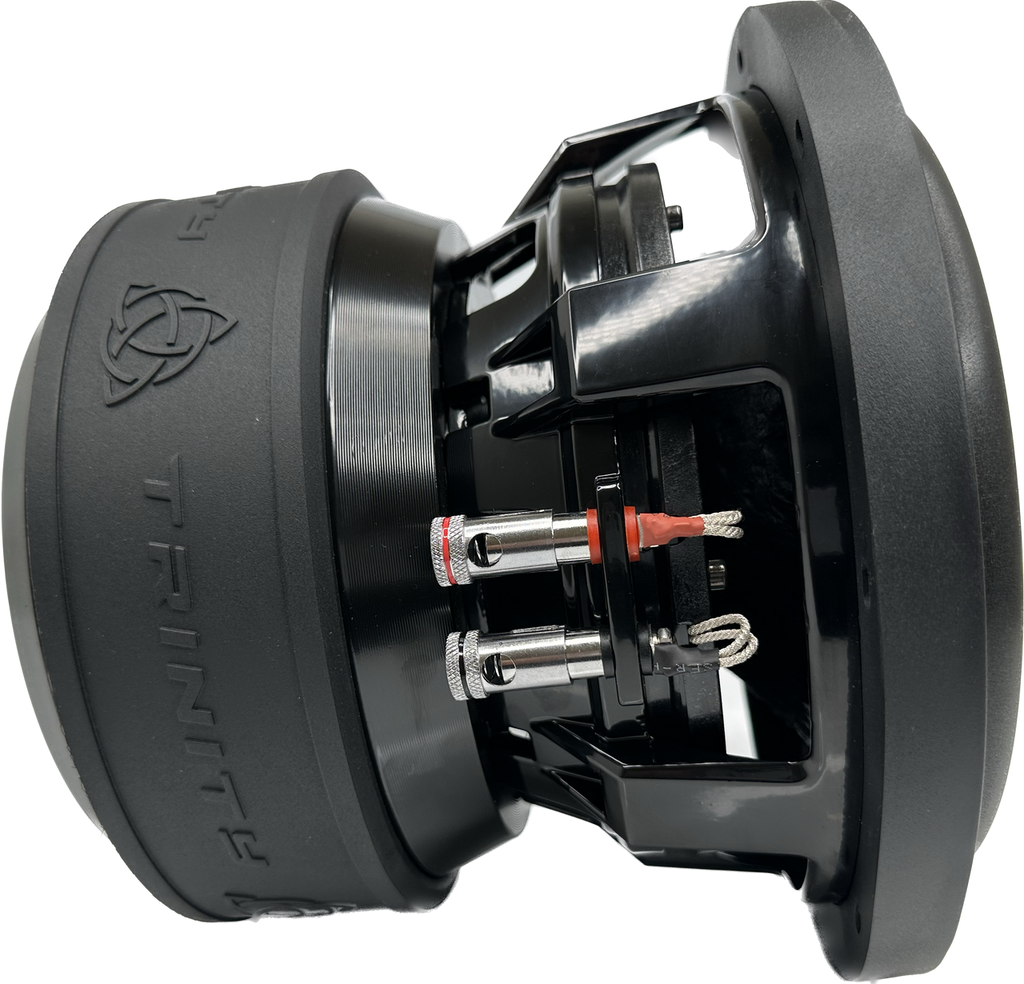

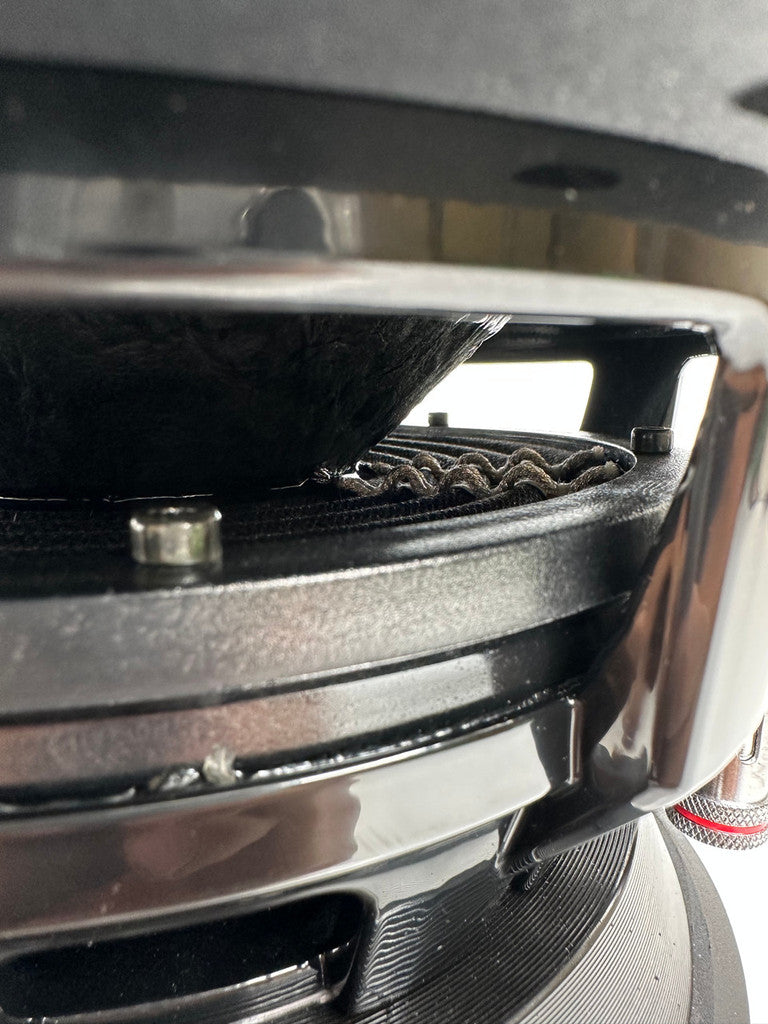

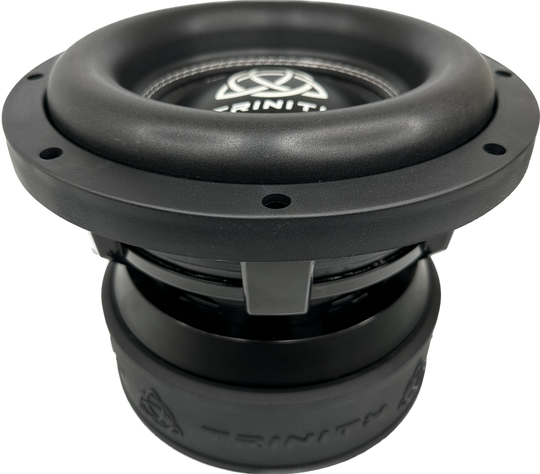

The Trinity Audio Solutions M Series is the perfect subwoofer for the bass head who values clean, tight bass that doesn't sacrifice performance or clarity. The M Series Subwoofers feature high quality cast aluminum high excursion baskets with an optimized air flow design, triple stacked high density ferrite magnets, SPL rated composite paper cones, soft compliance triple layer stretch foam surrounds and a progressive roll spider pack. This combination of features allow a level of performance never seen in this price range.

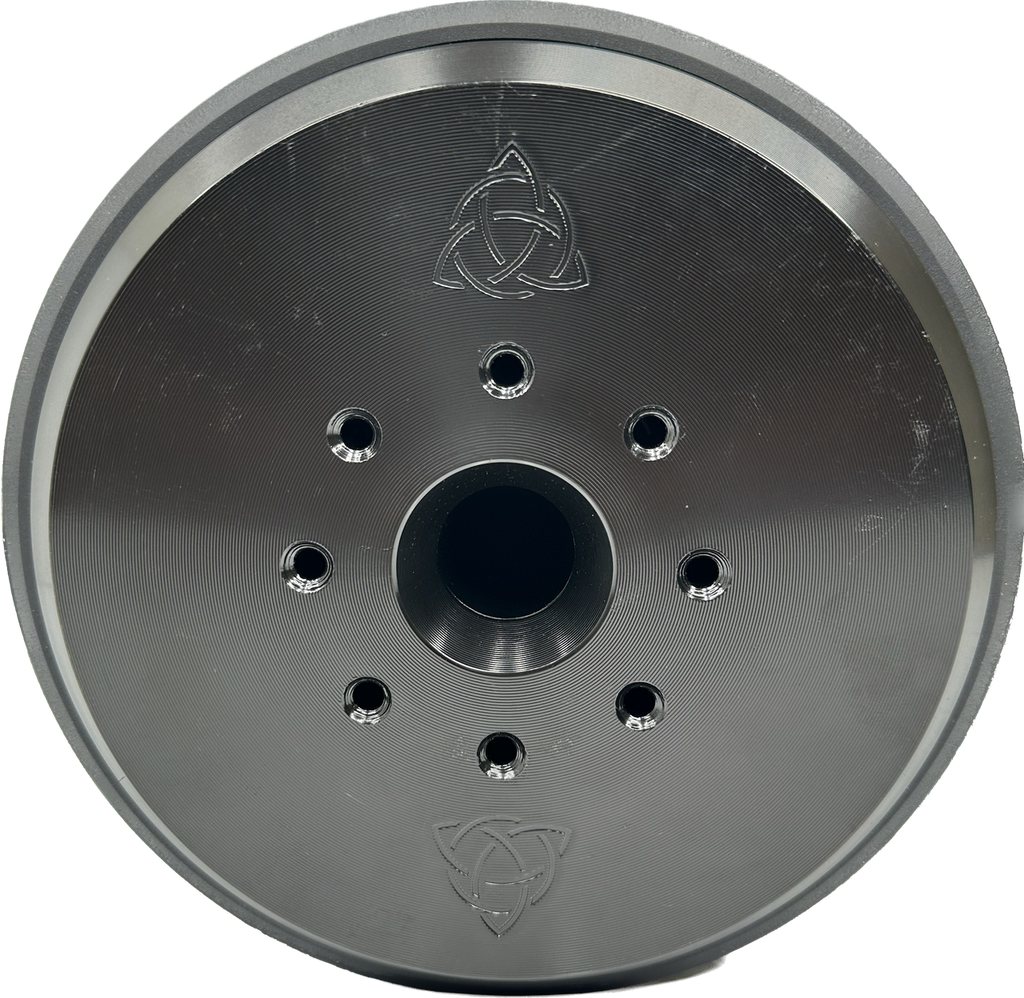

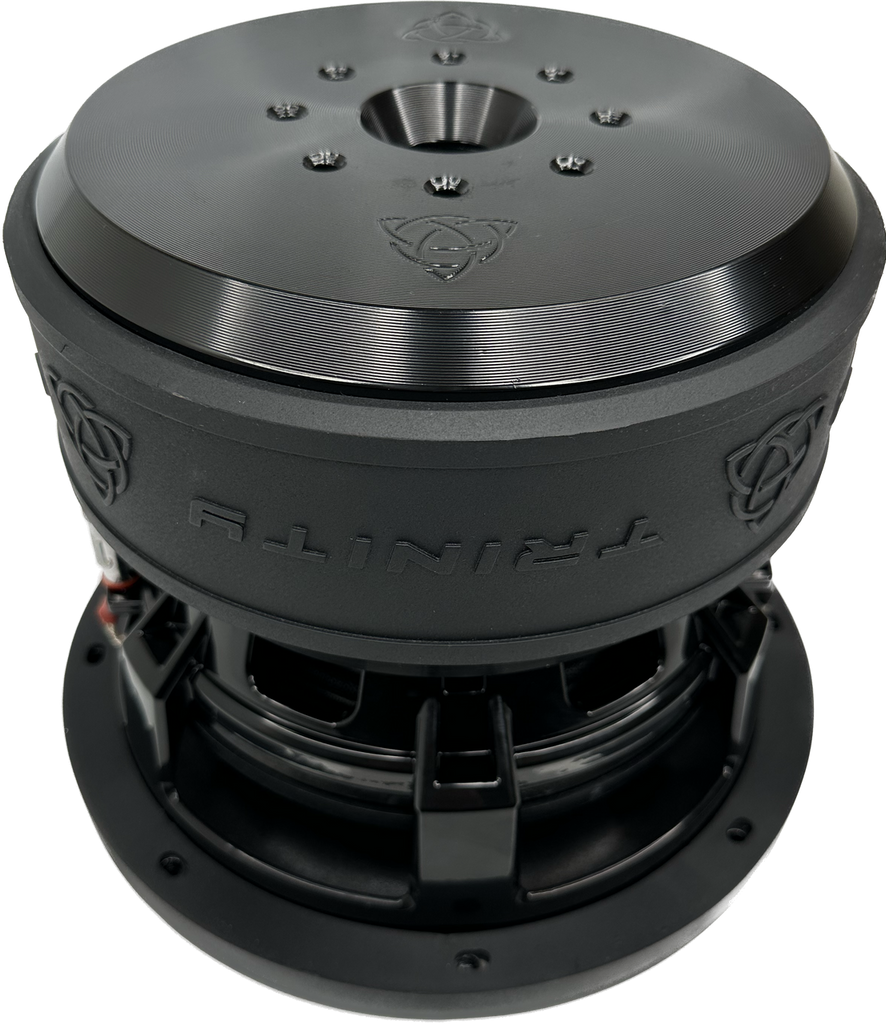

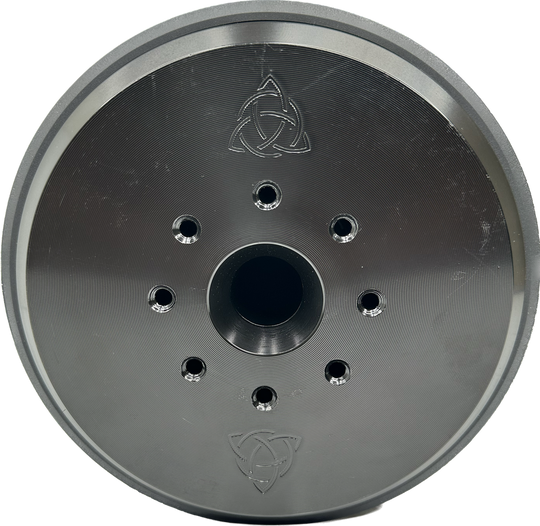

The M Series Subwoofer is now available in 6.5", 8", 10, 12”, 15”, and 18" models! These subwoofers can handle a plenty of power and increased play times thanks to its rigid structure and Cool Flow flared vent backplate motor for increased heat dissipation.

Model TAS-M10D1 TAS-M10D2
Sensitivity 87.6 dB 84.7 dB
Norminal Impedance Dual 1 Ohm Dual 2 ohm
DC Resistance

1.9 ohm

3.8 ohm

Voice Coil Dim

3" 3"
Power Handling 2000 Watts 2000 Watts
Peak Dynamic Power 6000 Watts 6000 Watts
XMAX one way

1"

1"
Xmech one way  1.5"

1.5"

VAS

8.2 L

9 L
FS 36.9 Hz 31.7 Hz
QES 0.45 .38
QMS 6.67 6.87
QTS 0.42 0.36
Motor Assembly 650 oz 650 oz
Displacement  .17 cu.ft .17 cu.ft
Mounting Depth 4.33" 4.33"
Mounting Hole 9.25" 9.25"
Overall Width 10.83 10.83



As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.

*Shipping is free in the lower 48 states, unless otherwise stated.
