Trinity Audio - SHCA

Trinity Audio 15" Subwoofer 2000 Watts

  • Free shipping*
$599.99
/

Trinity Audio Solutions

M-Series 15" Subwoofer

TAS-M15

SPECIFICATIONS

  • Available in Dual 1 ohm or Dual 2 ohm
  • Cast aluminum high excursion basket with optimized air flow design.
  • Triple stacked high density ferrite magnets.
  •  FEA enhanced motor structure.
  •  CF tech (Cooling Flow) flared vent backplate for increased heat dissipation.
  •  Rigid composite paper cones with increased stability.
  •  Soft compliance triple layer stretch foam surround.
  •  10" Quad layer progressive roll spider pack.
  •  3" BASV high temperature dual voice coil.
Suggested Enclosures
Enclosures Sealed  Ported 4th Order
TAS-M15D1 50L/ 1.77 cu.ft 90L/ 3.18 cu.ft 2.5:1 Ratio
Qtc 0.475 P.A. 25.2 sq.in L:20.2" FB:30hz 2.5:1 Ratio
TAS-M15D2 50L/ 1.77 cu.ft 90L/ 3.18 cu.ft 2.5:1 Ratio
Qtc 0.434 P.A. 25.2 sq.in L:20.2" FB:30hz 2.5:1 Ratio




Model TAS-M15D1 TAS-M15D2
Sensitivity 92.3 dB 89.4 dB
Norminal Impedance Dual 1 Ohm Dual 2 ohm
DC Resistance

1.9 ohm

 3.8 ohm

Voice Coil Dim

 3" 3"
Power Handling 2000 Watts 2000 Watts
Peak Dynamic Power 6000 Watts 6000 Watts
XMAX one way

1"

 1"
Xmech one way  1.5"

1.5"
VAS

50.4L

 48.4L
FS 28.3 Hz 27.2 Hz
QES 0.45 .4
QMS 6.13 6.44
QTS 0.42 0.38
otor Assembly 650 oz 650 oz
Displacement  .36 cu.ft .36 cu.ft

As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.

*Shipping is free in the lower 48 states, unless otherwise stated.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

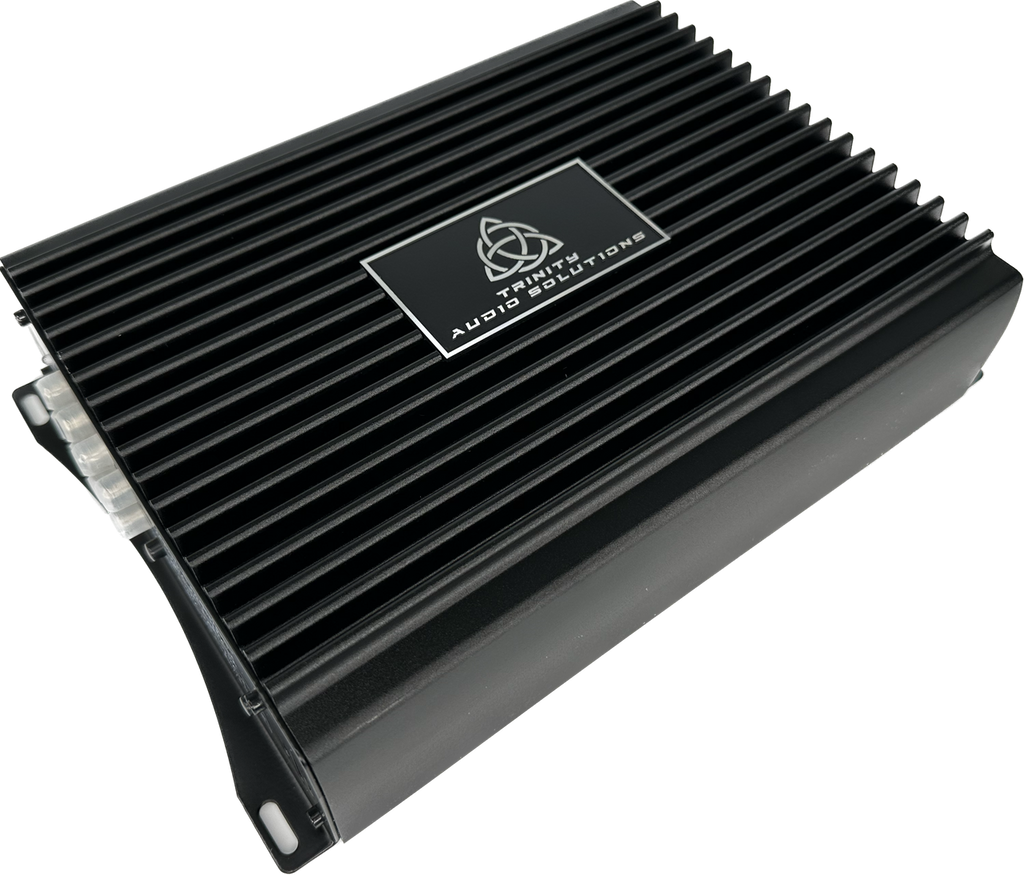

Trinity Audio 1500.8 Amplifier
