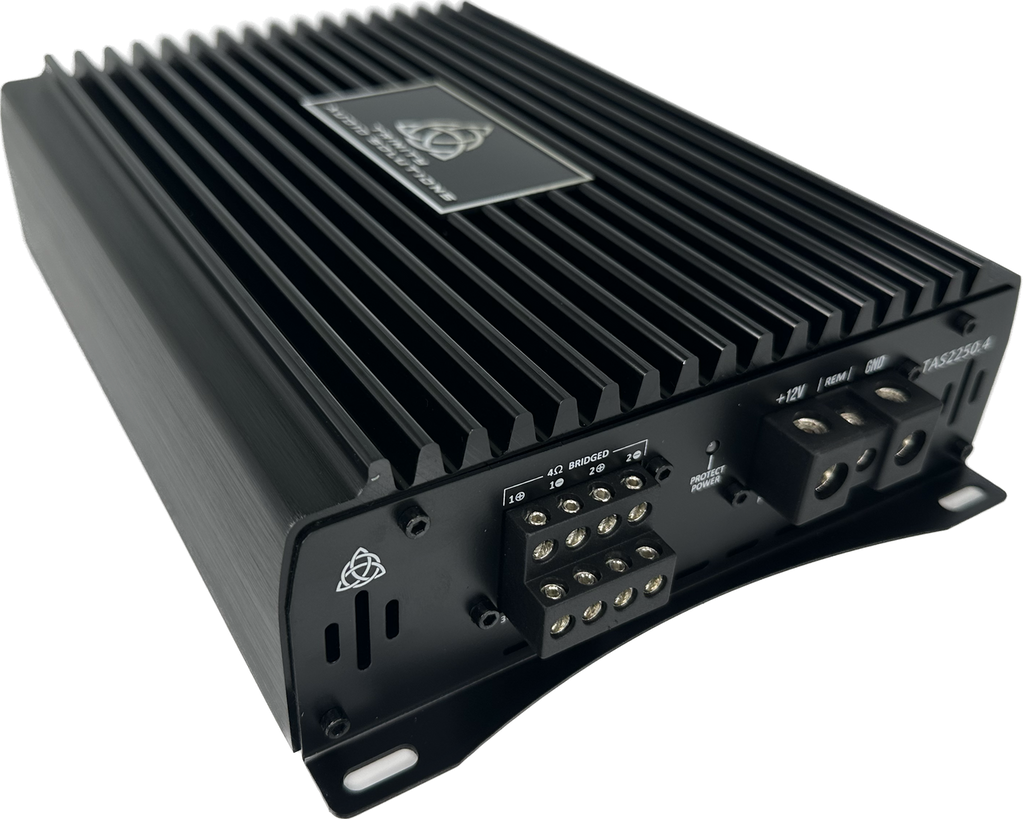

Trinity Audio Solutions presents its new 8-channel amplifier, turn your multiple amplifier set up into just one. This 8 channel amplifier is split into two different power outputs. Channel 1-4 does 130 watts per channel at 2 ohms. 5-8 channel does 250 watts per channel at 2 ohms. This way you can run your tweeter and mid ranges off the first 4 channels and your mid woofers and small sub stage off of the last 4 channels. Needless to say this amp is a solution to a lot of set ups you want to run off a singular amp. If your looking to do a large set up then make sure to match this amp with our numerous other options of amplifiers to make the perfect set up for your build.
| Specifications | |
| Channel 1-4 RMS Output @ 2ohms | 130Wx4ch |
| Channel 5-8 RMS Output @ 2ohms | 250Wx4ch |
| Channel 1-4 RMS Output @ 4ohms | 80Wx4ch |
| Channel 5-8 RMS Output @ 4ohms | 150Wx4ch |
| Channel 1-4 Bridged Output @ 4ohms | 270Wx2ch |
| Channel 5-8 Bridged Output @ 4ohms | 500Wx2ch |
| THD | <0.2% |
| Frequency Response (-3dB) Channel 1-4 | 50Hz - 30KHz |
| Frequency Response (-3dB) Channel 5-8 | 10Hz - 30KHz |
| Signal To Noise Ratio | >94dB |
| Sensitivity | 0.3V - 8.2V |
| Power/ Ground Gauge Wire | 4 Gauge |
| Dimensions | 11"x7.52"x2.48" |
