Name: Gately - Alpha 12" V2 Subwoofer (2000w)
Brand: Gately Audio
SKU: GS-A12V2D1
Price: 619.0 USD
Availability: InStock

Free shipping*

$619.00

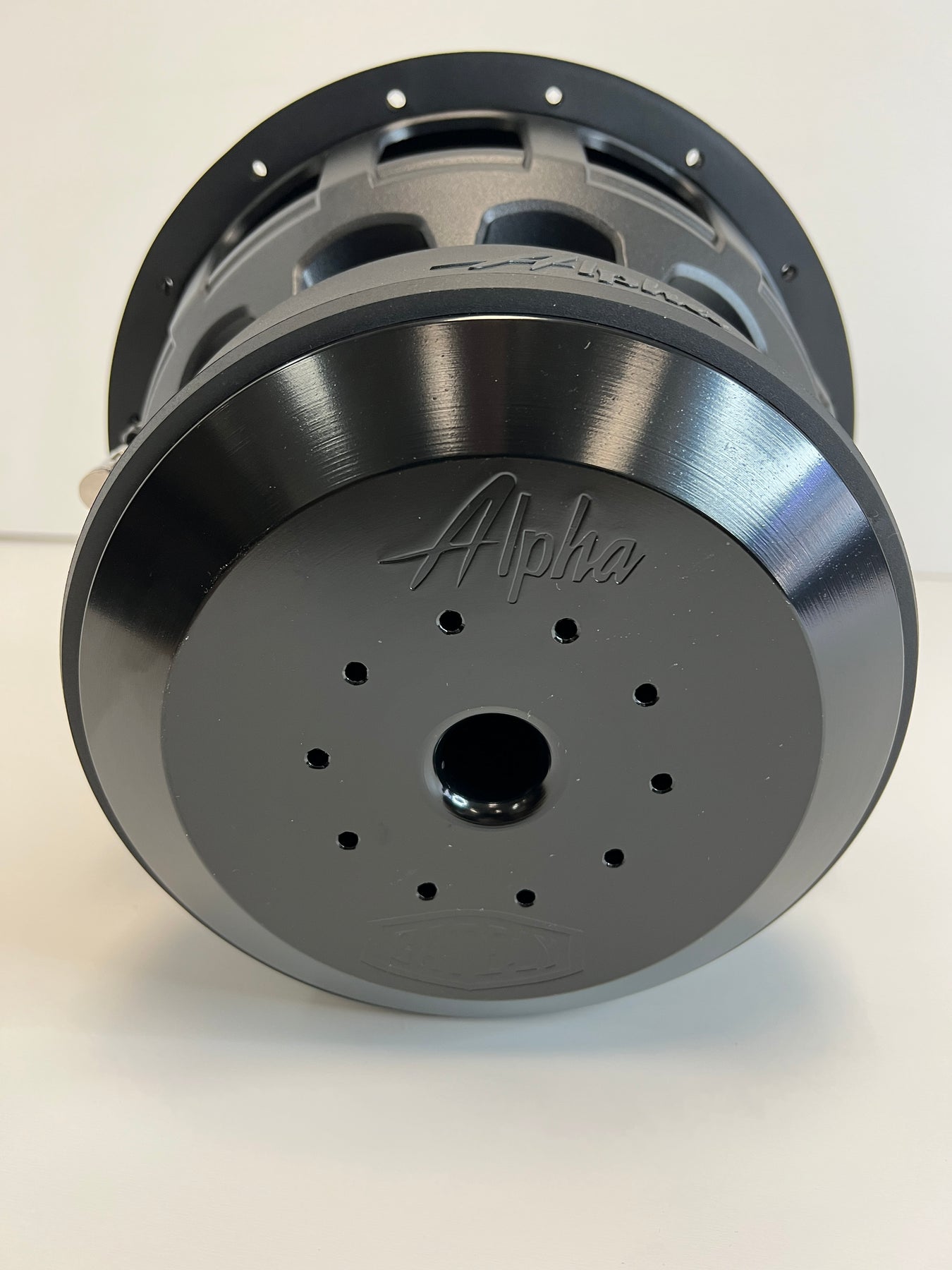

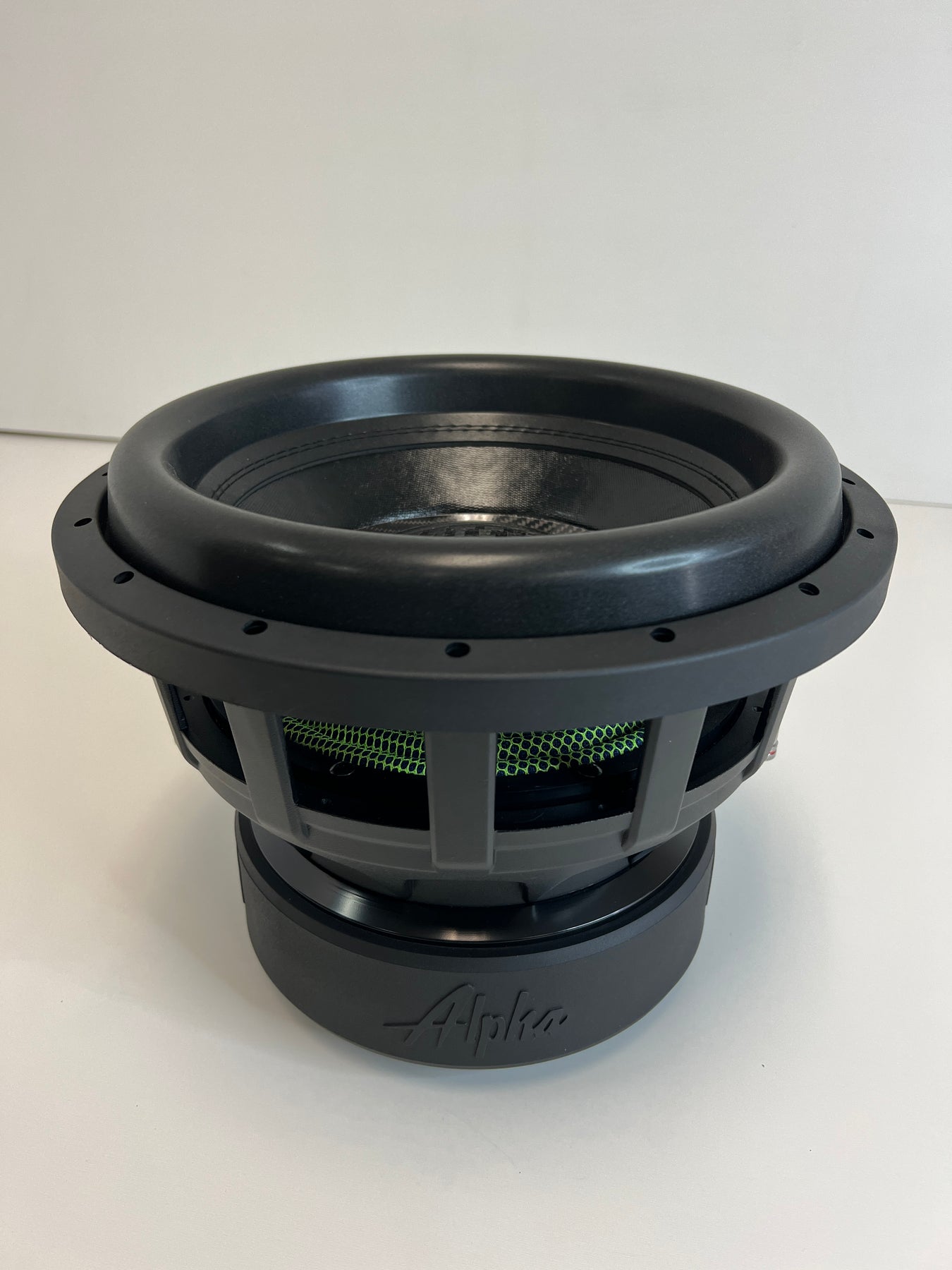

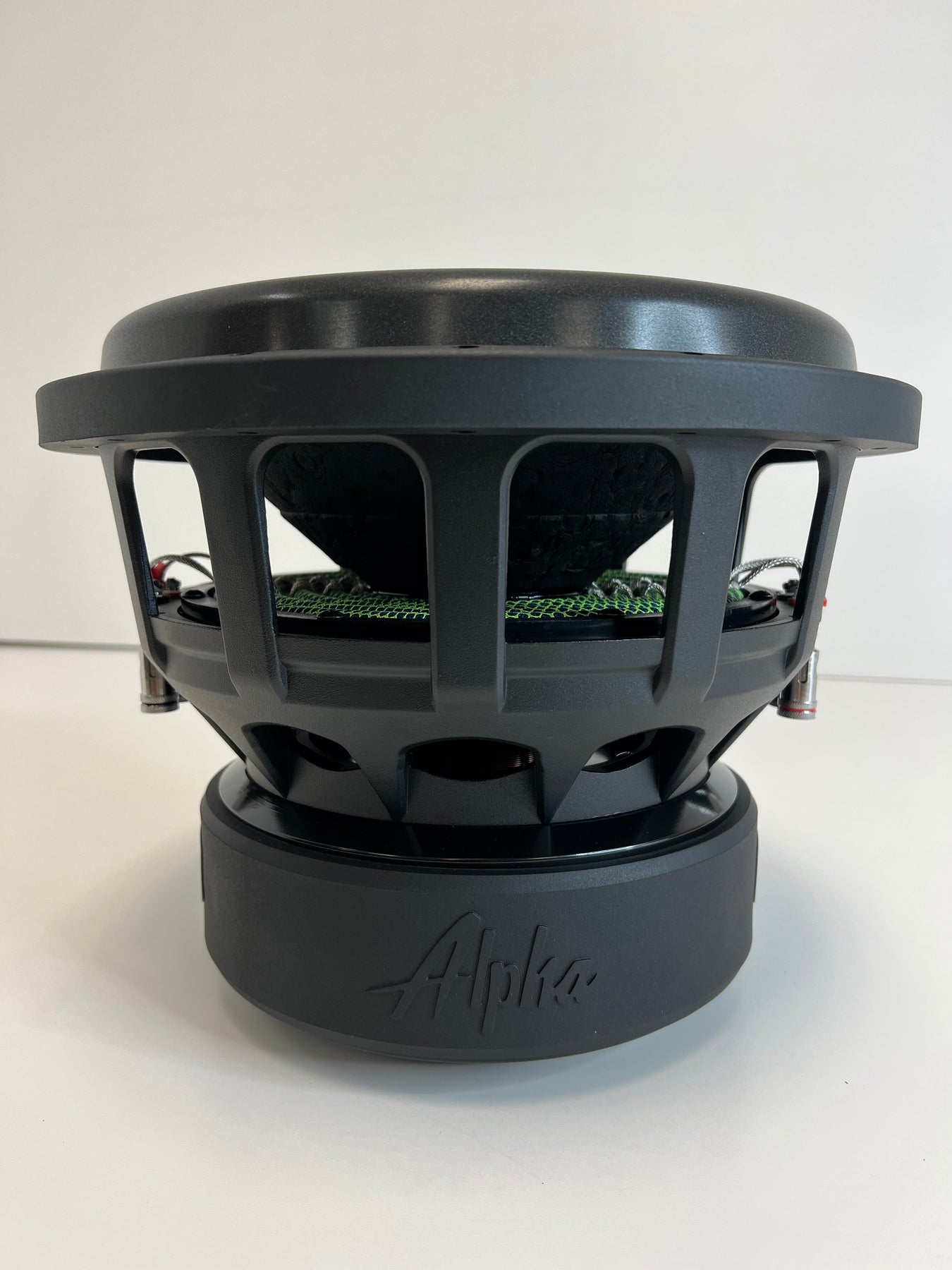

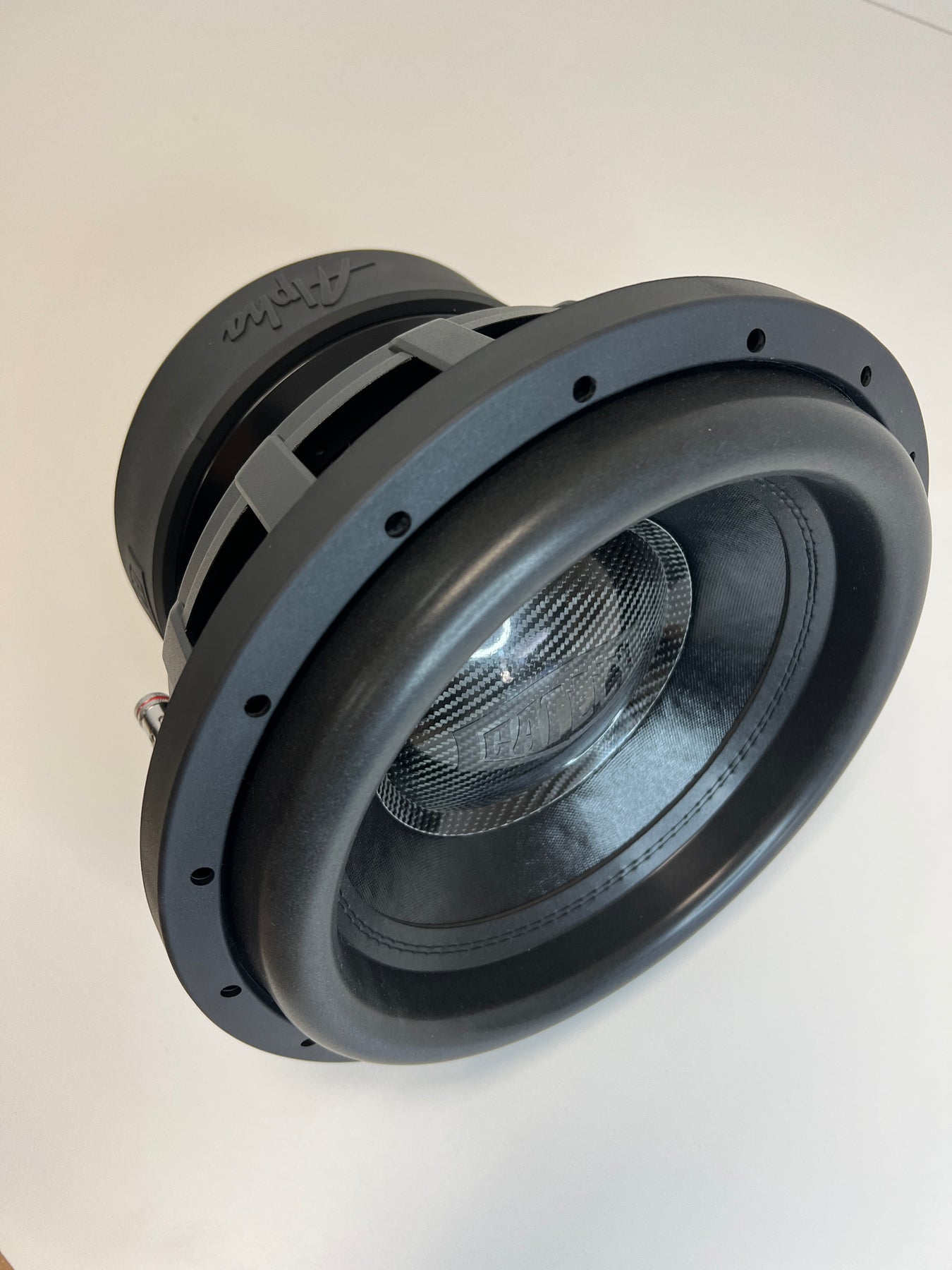

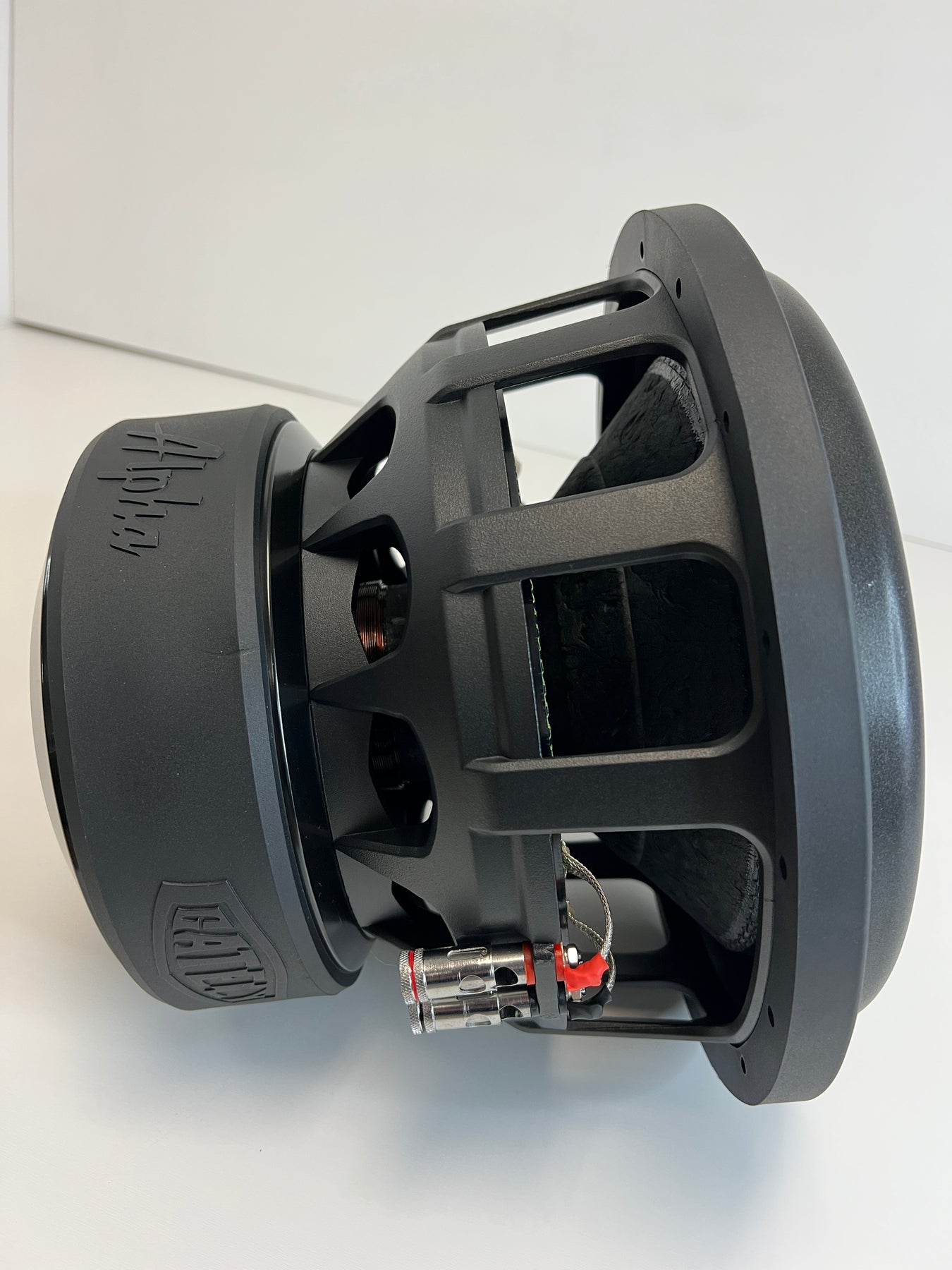

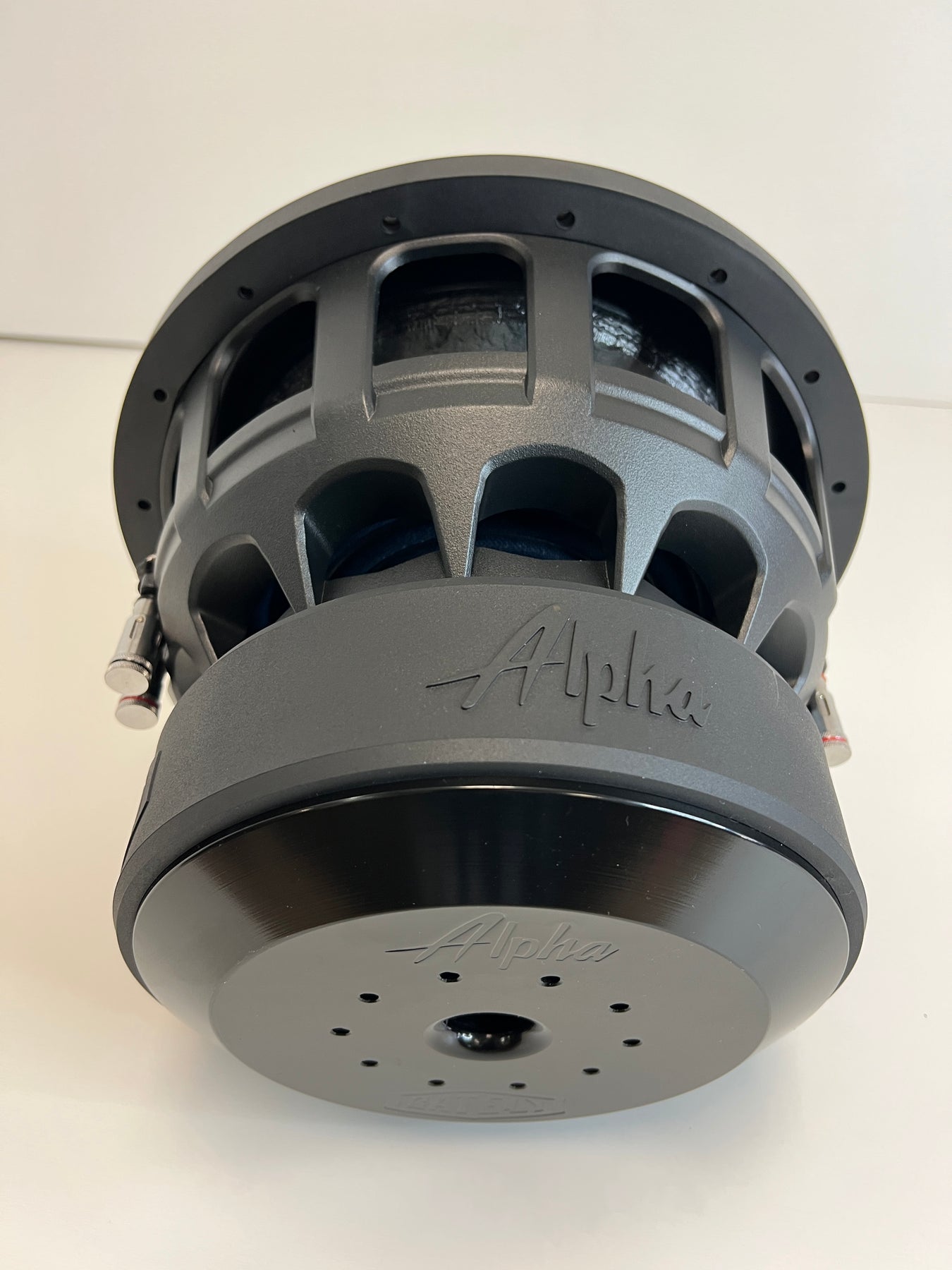

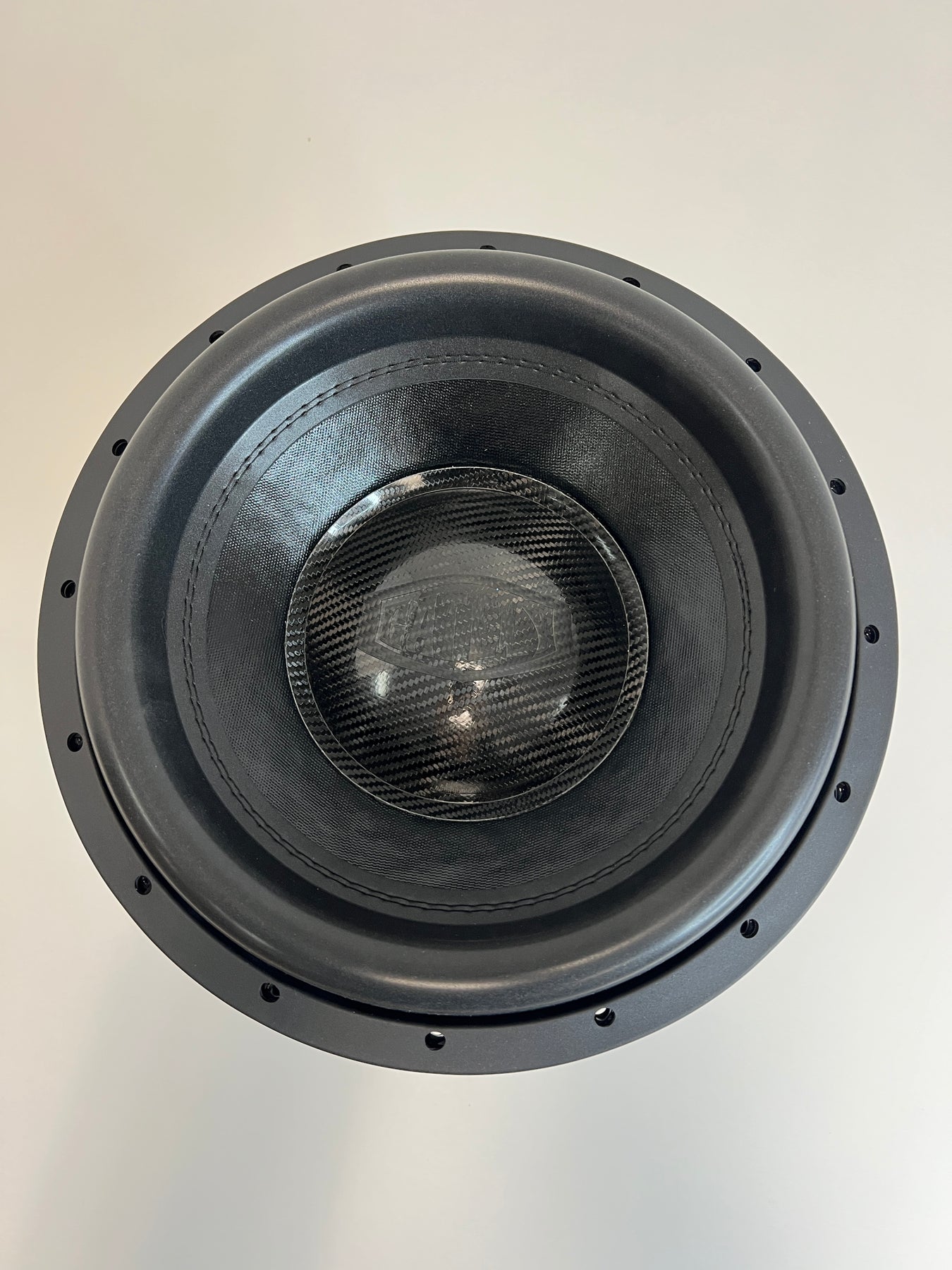

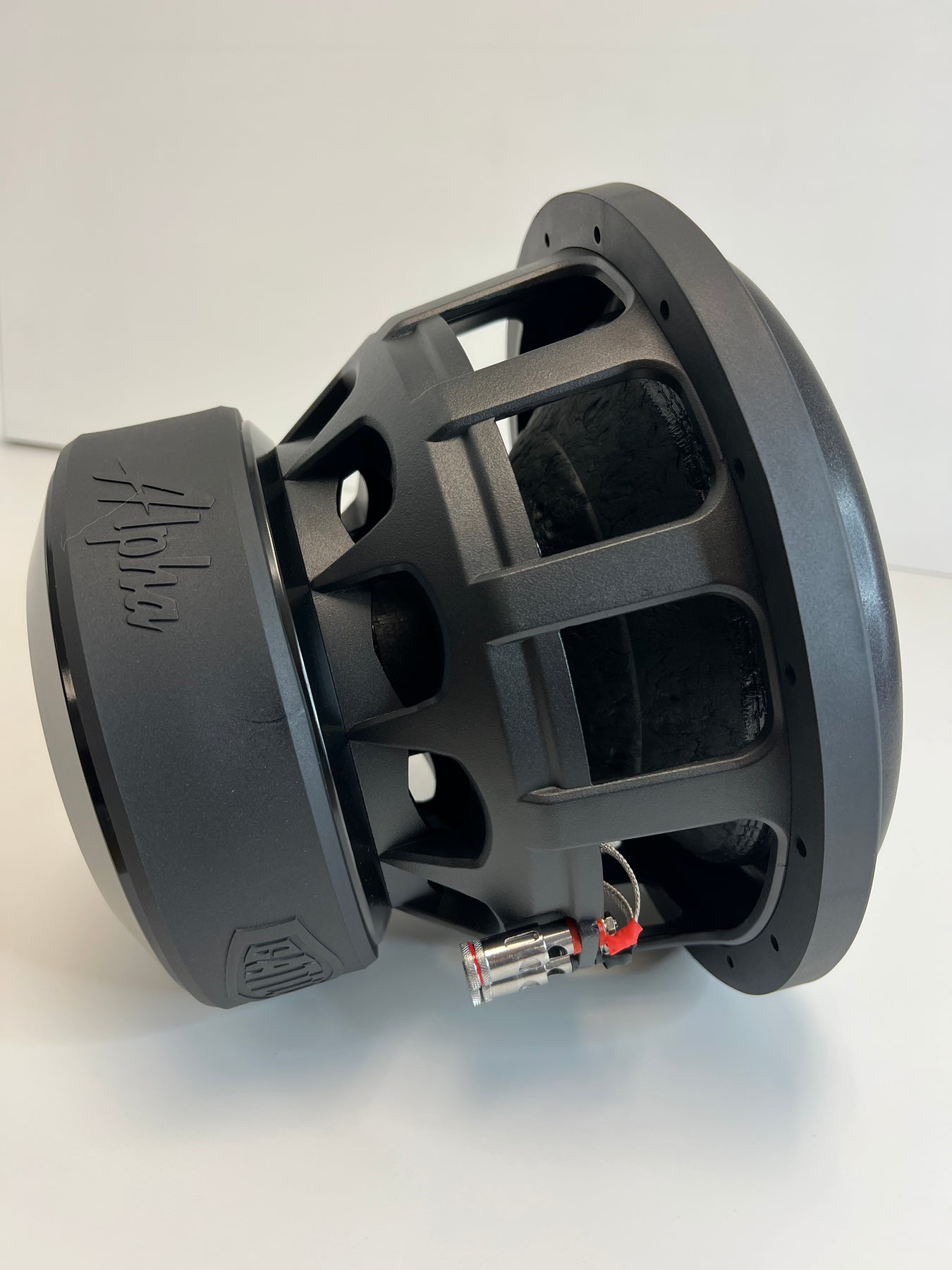

GATELY AUDIO Alpha series V2 12" subwoofer.

Outside Diameter 12.5"
Cutout Diameter 11.125"
Mounting Depth 8.375"

3" 4 layer voice coil

8.5" Y35 250oz Ferrite Motor

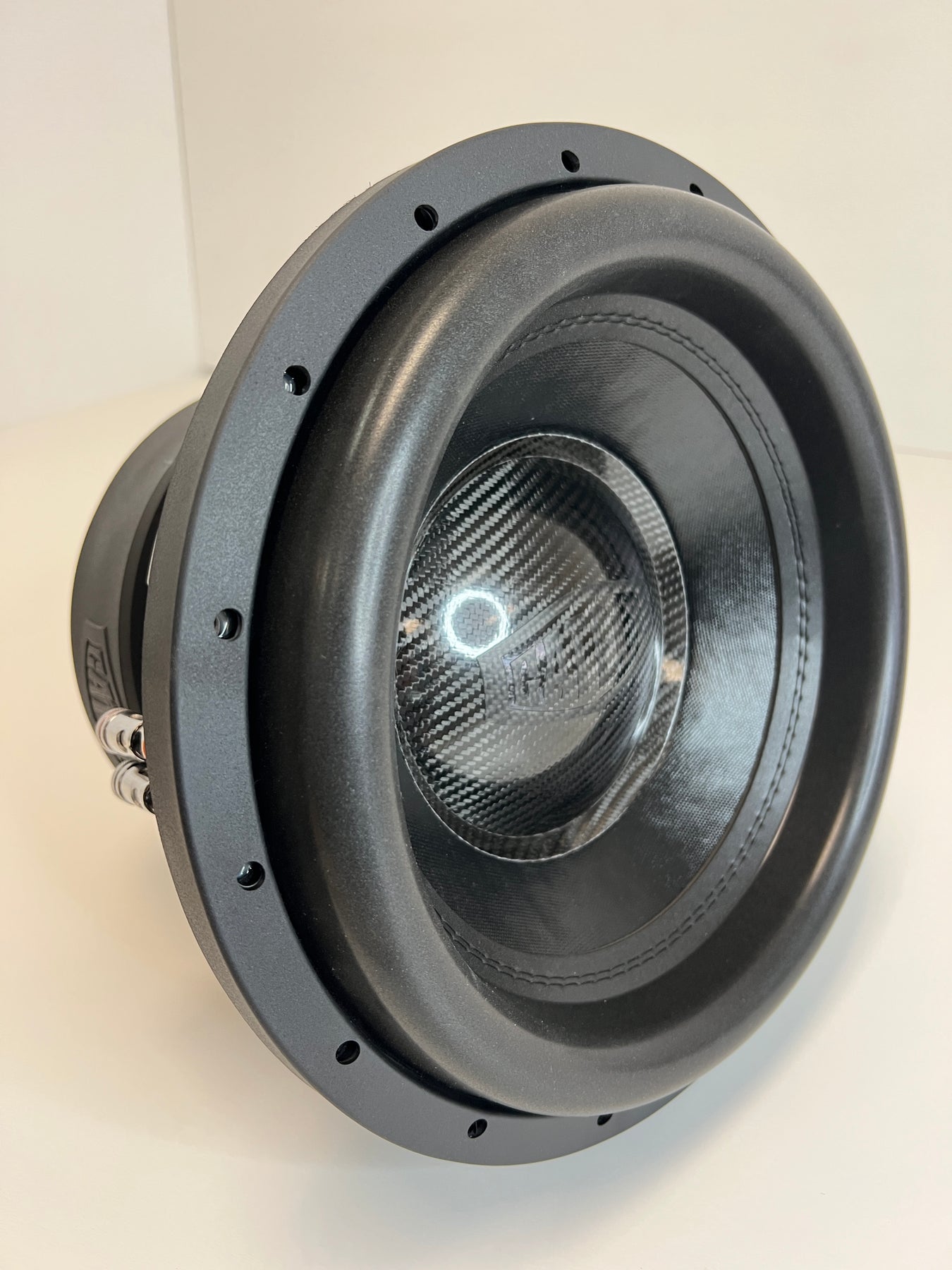

GATELY shield embossed carbon fiber dustcap

2000 watt RMS

Weight: 50 lbs

SPECIFICATIONS
Watts	2000 RMS
MIN INTERNAL VOL	1.75 cubic feet
MAX INTERNAL VOL	2.25 cubic feet
MIN Port Area	27 sq inches
MAX Port Area	33 sq inches

Alpha 12" V2 D1
f(s) = 47.24 Hz
Q(ts) = 0.6364
V(as) = 13.64 liters (0.4817 cubic feet)
SPL = 85.1 dB SPL 1W/1m
Nominal Diam. = 0 mm (12 in.)
Model: Alpha 12 D1
R(e) = 2.227 Ohms
Q(es) = 0.6873
Piston Diam. = 260.4 mm (10.25 in.)
SPL = 90.65 dB SPL 2.83 Vrms
C(ms) = 0.034 mm/N
Z(max) = 30.06 Ohms
L(e) = 1.154 mH at 10kHz
Q(ms) = 8.59
BL = 17.85
n(0) = 0.1995 %
M(ms) = 331.2 grams

--------------------------------------------------

Alpha 12" V2 D2
f(s) = 48.85 Hz
Q(ts) = 0.6873
V(as) = 14.11 liters (0.4983 cubic feet)
SPL = 85.23 dB SPL 1W/1m
Nominal Diam. = 0 mm (12 in.)
Model: Alpha 12 D2
R(e) = 4.464 Ohms
Q(es) = 0.763
Piston Diam. = 260.4 mm (10.25 in.)
SPL = 87.76 dB SPL 2.83 Vrms
C(ms) = 0.035 mm/N
Z(max) = 44.98 Ohms
L(e) = 1.756 mH at 10kHz
Q(ms) = 6.926
BL = 23.19
n(0) = 0.2056 %
M(ms) = 299.4 grams

--------------------------------------------------

Alpha 12" V2 D3
f(s) = 48.21 Hz
Q(ts) = 0.7384
V(as) = 14.85 liters (0.5242 cubic feet)
SPL = 84.99 dB SPL 1W/1m
Nominal Diam. = 0 mm (12 in.)
Model: Alpha 12 D3
R(e) = 6.642 Ohms
Q(es) = 0.815
Piston Diam. = 260.4 mm (10.25 in.)
SPL = 85.8 dB SPL 2.83 Vrms
C(ms) = 0.037 mm/N
Z(max) = 70.68 Ohms
L(e) = 2.376 mH at 10kHz
Q(ms) = 7.857
BL = 26.86
n(0) = 0.1947 %
M(ms) = 292.2 grams

As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.

*Shipping is free in the lower 48 states, unless otherwise stated.

[{"id":43895850205425,"title":"Dual 1 Ohm","option1":"Dual 1 Ohm","option2":null,"option3":null,"sku":"GS-A12V2D1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gately - Alpha 12\" V2 Subwoofer (2000w) - Dual 1 Ohm","public_title":"Dual 1 Ohm","options":["Dual 1 Ohm"],"price":61900,"weight":27669,"compare_at_price":null,"inventory_management":null,"barcode":"50205425","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43895850238193,"title":"Dual 2 Ohm","option1":"Dual 2 Ohm","option2":null,"option3":null,"sku":"GS-A12V2D2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gately - Alpha 12\" V2 Subwoofer (2000w) - Dual 2 Ohm","public_title":"Dual 2 Ohm","options":["Dual 2 Ohm"],"price":61900,"weight":27669,"compare_at_price":null,"inventory_management":null,"barcode":"50238193","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43895852171505,"title":"Dual 3 Ohm","option1":"Dual 3 Ohm","option2":null,"option3":null,"sku":"GS-A12V2D3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gately - Alpha 12\" V2 Subwoofer (2000w) - Dual 3 Ohm","public_title":"Dual 3 Ohm","options":["Dual 3 Ohm"],"price":61900,"weight":27669,"compare_at_price":null,"inventory_management":null,"barcode":"52171505","requires_selling_plan":false,"selling_plan_allocations":[]}]

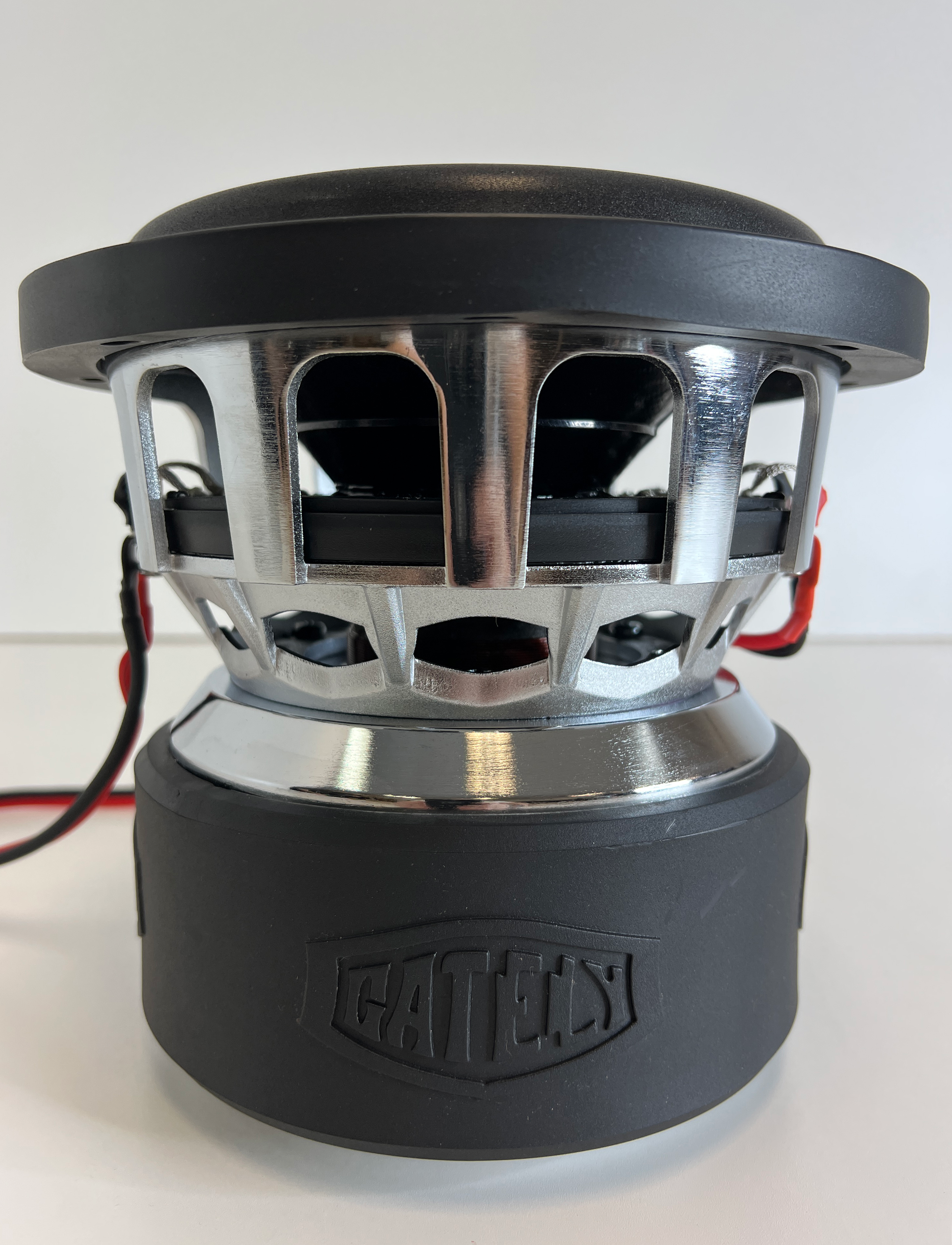

Gately - Alpha 12" V1 Subwoofer Front Side
