Gately Audio G1-7100D Amplifier

The Gately High Performance Car Audio Amplifiers exemplify excellence. With over 30 years of industry experience, the Gately Audio Amplifiers were developed to suit all car audio enthusiasts from the bass-head to the sound quality competitor.

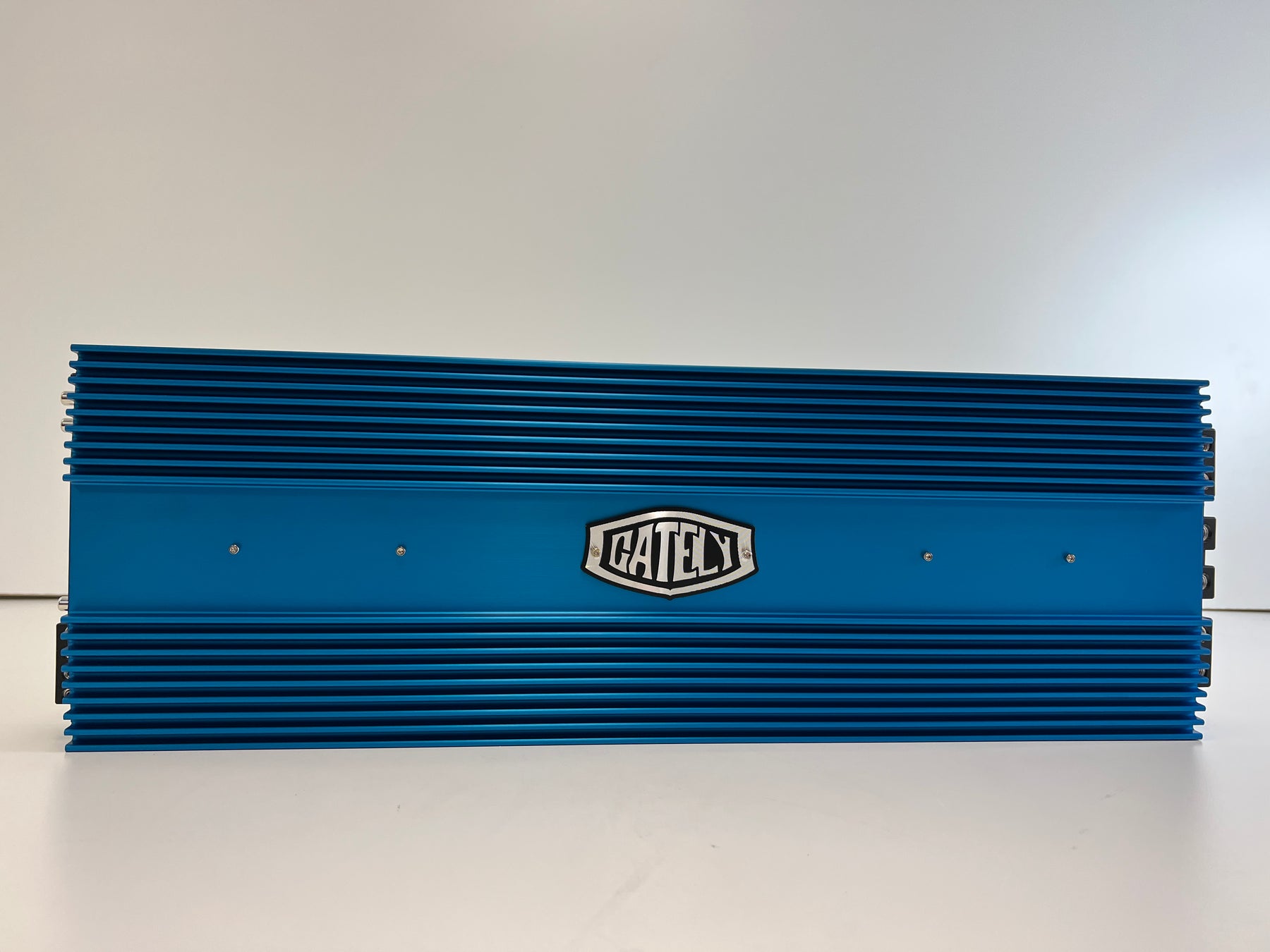

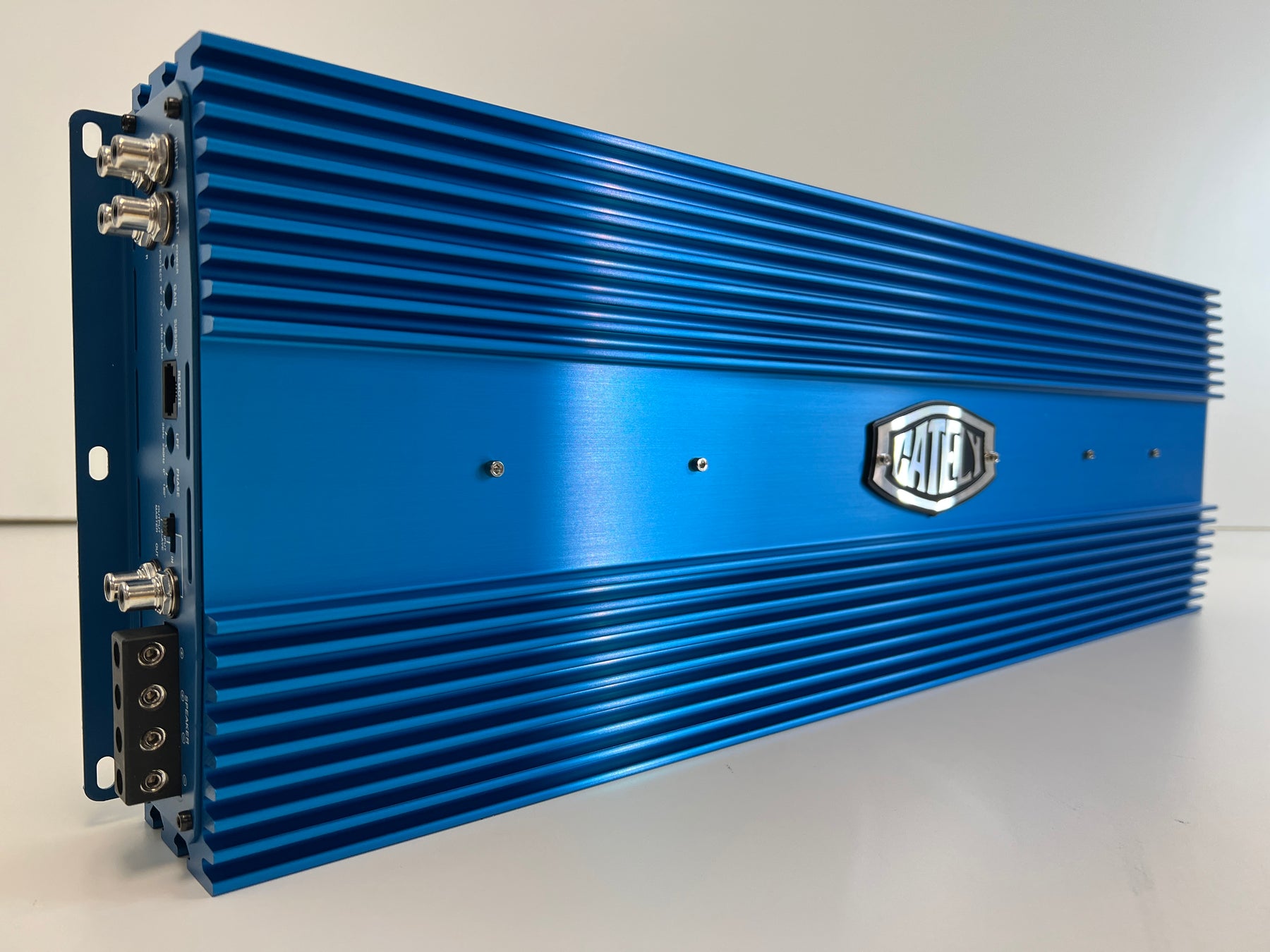

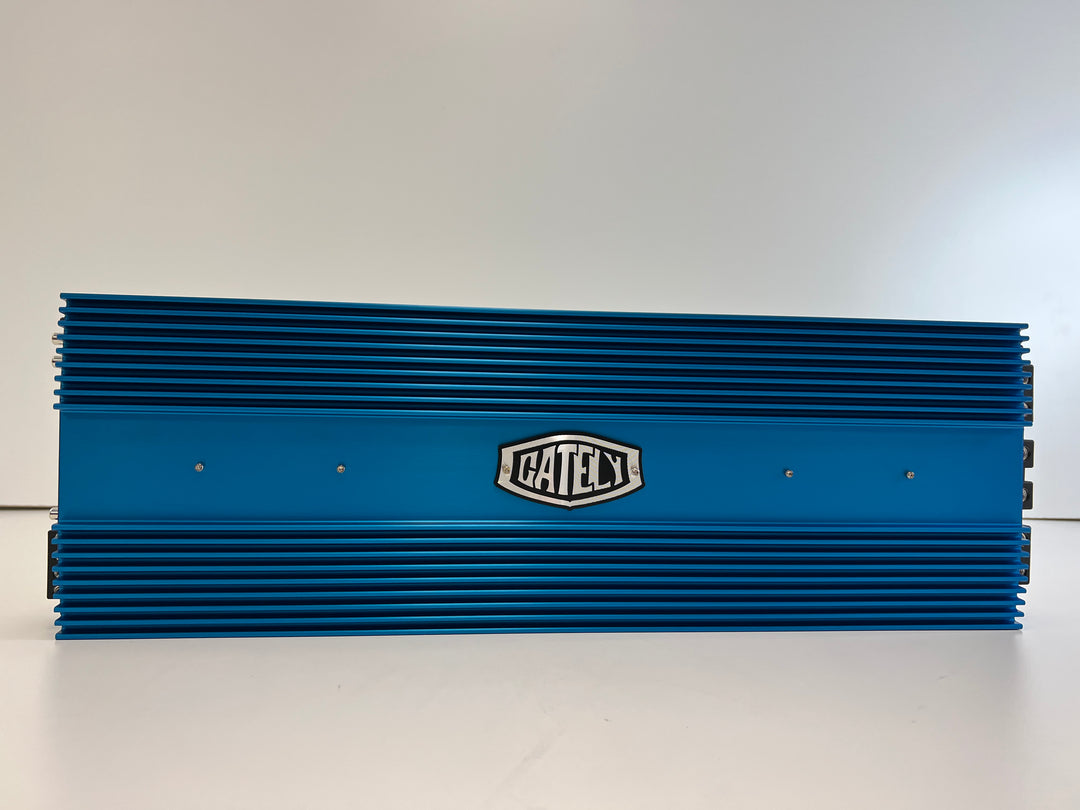

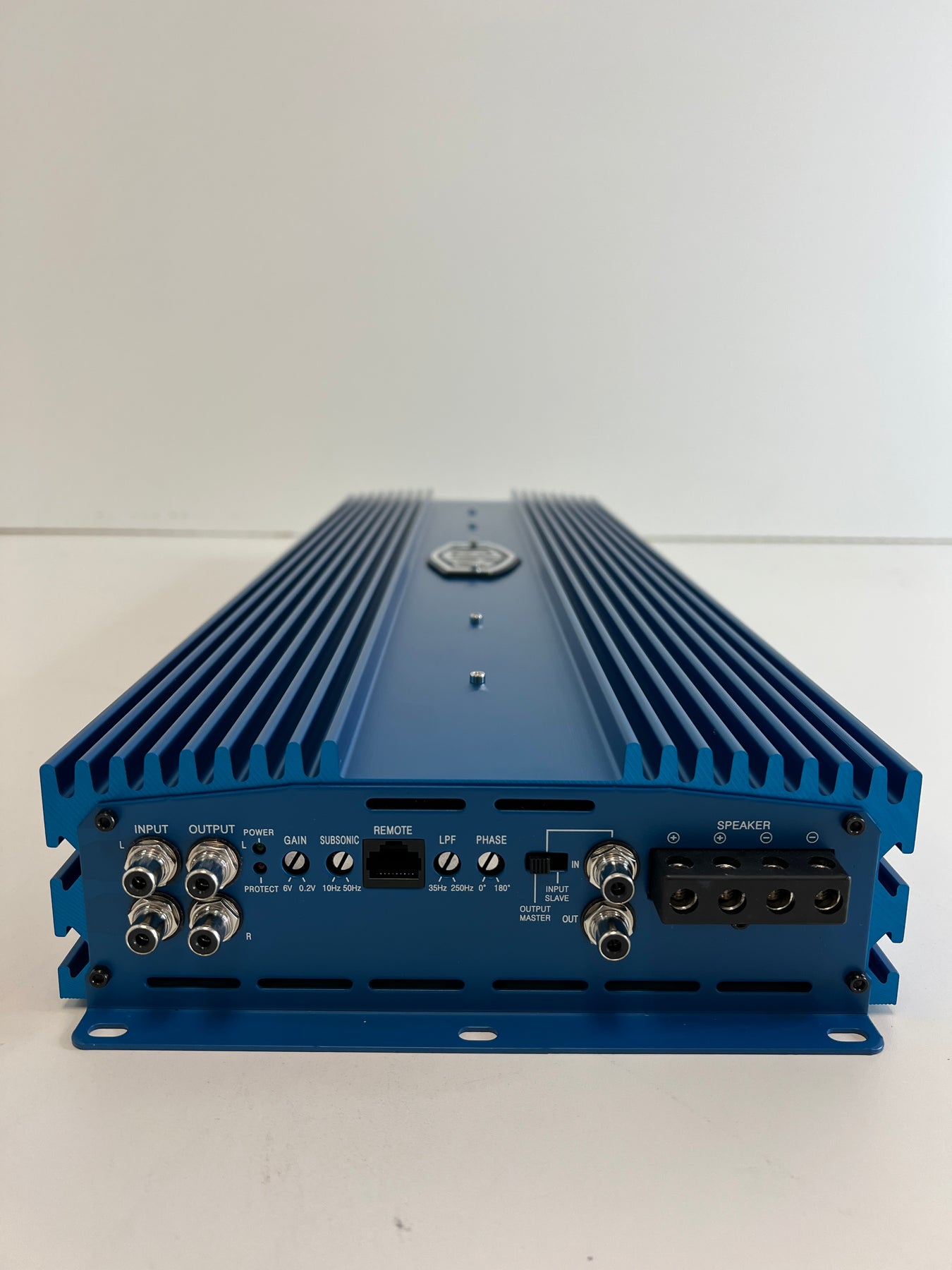

The anodized Gately Blue heatsink features an aluminum Gately emblem that can be adjusted to various positions to accommodate any number of amplifier configurations.

G1-7100D FEATURES

• Monoblock Amplifier
• Double Sided Through Hole Epoxy PCB
• Multi-Way Protection Circuitry (Thermal/Voltage/Speaker Short/DC Offset)
• Wired Remote Control Bass Knob displays Voltage, Temperature, and Clip light

 G1-7100D SPECIFICATIONS

• Dimensions: 27" long  x 3" tall X 8.625" wide
• Weight: 25.7lbs.
• Power @ 4ohm: 2250 watts X 1ch
• Power @ 2ohm: 4000 watts X 1ch
• Power @ 12 volts: 5700 watts x 1ch
• Power @ 13.8 volts: 7100 watts X 1ch
• Frequency Response: 10 Hz-280Hz
• Input Sensitivity: 6 volts- 0.2 volts
• Subsonic Filter: 10Hz -50Hz
• Low Pass Filter: 35Hz-250Hz
• Remote Gain Control

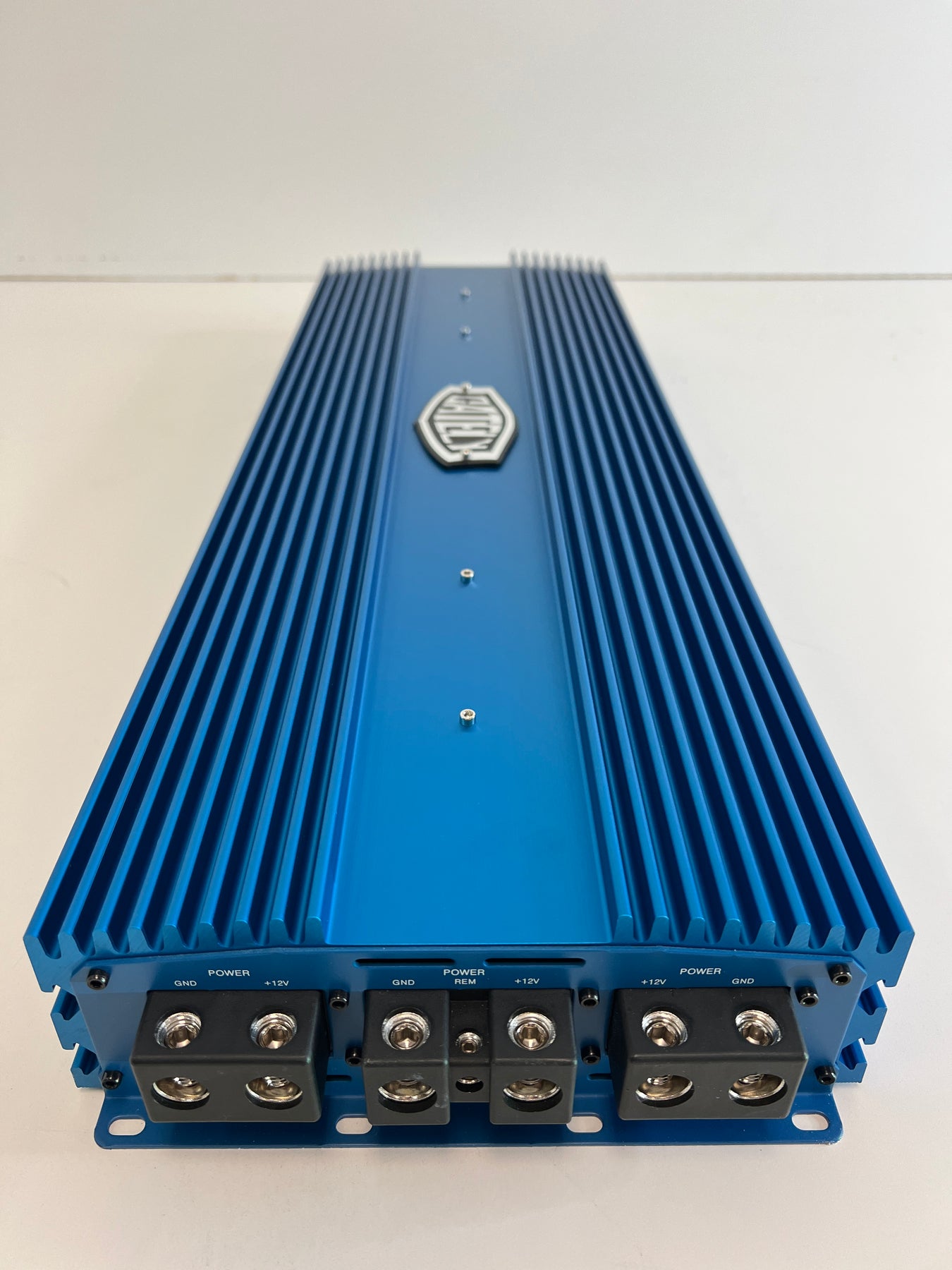

• 0 Ga X 3 power & Ground Terminal
• 10 volt to 16 volt working voltage
