Garage Sale Gately Relentless 18" D1

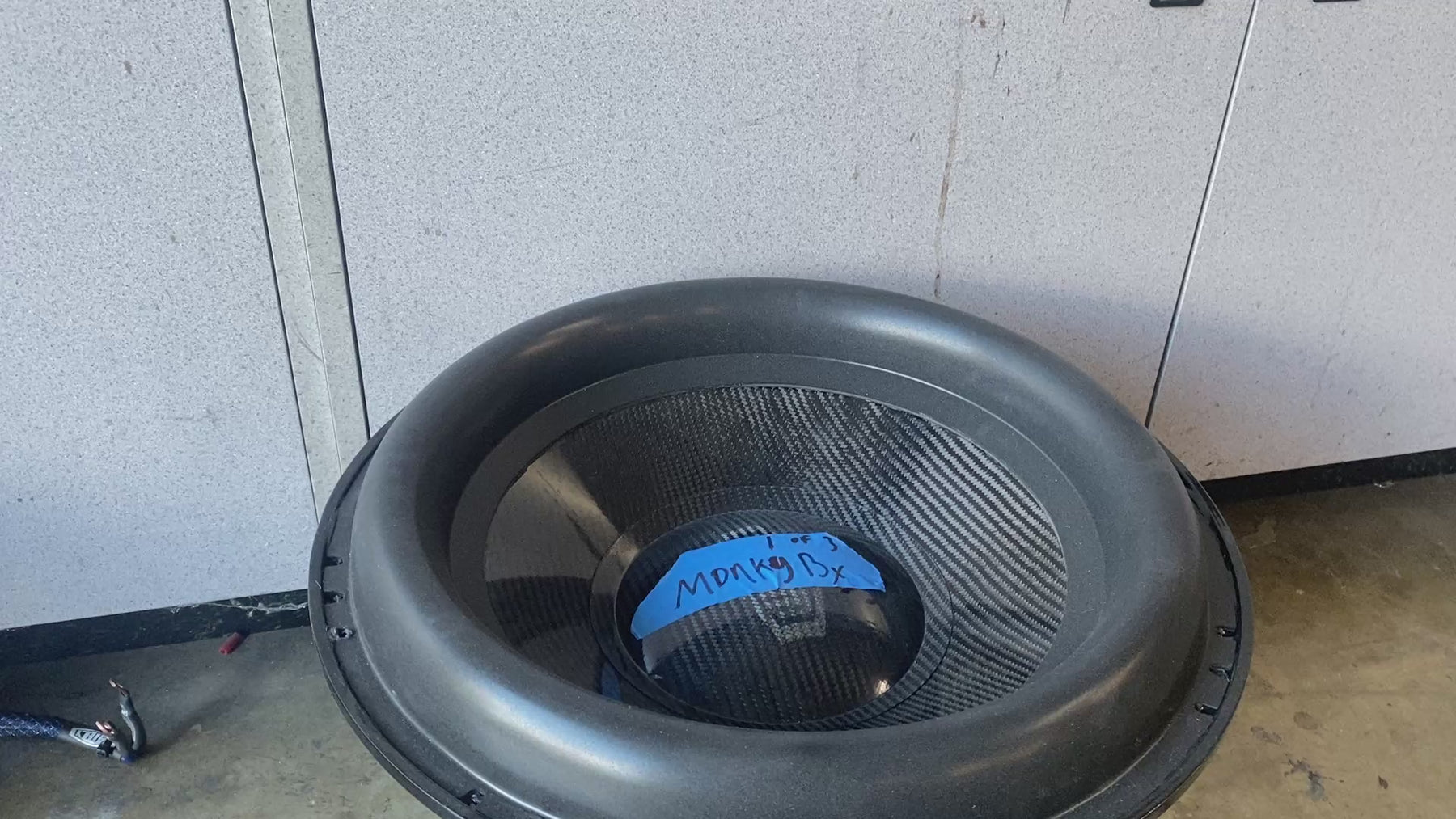

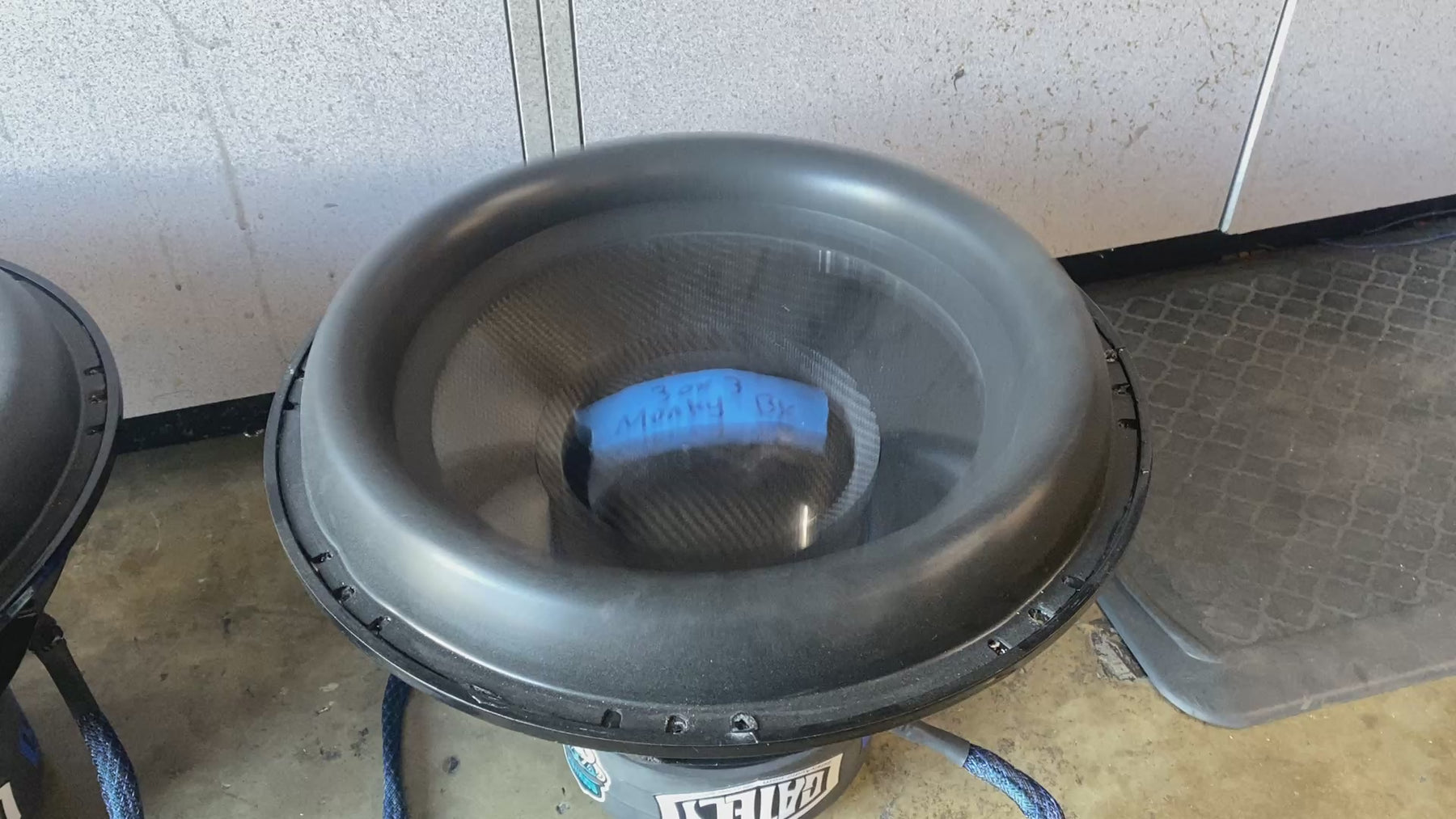

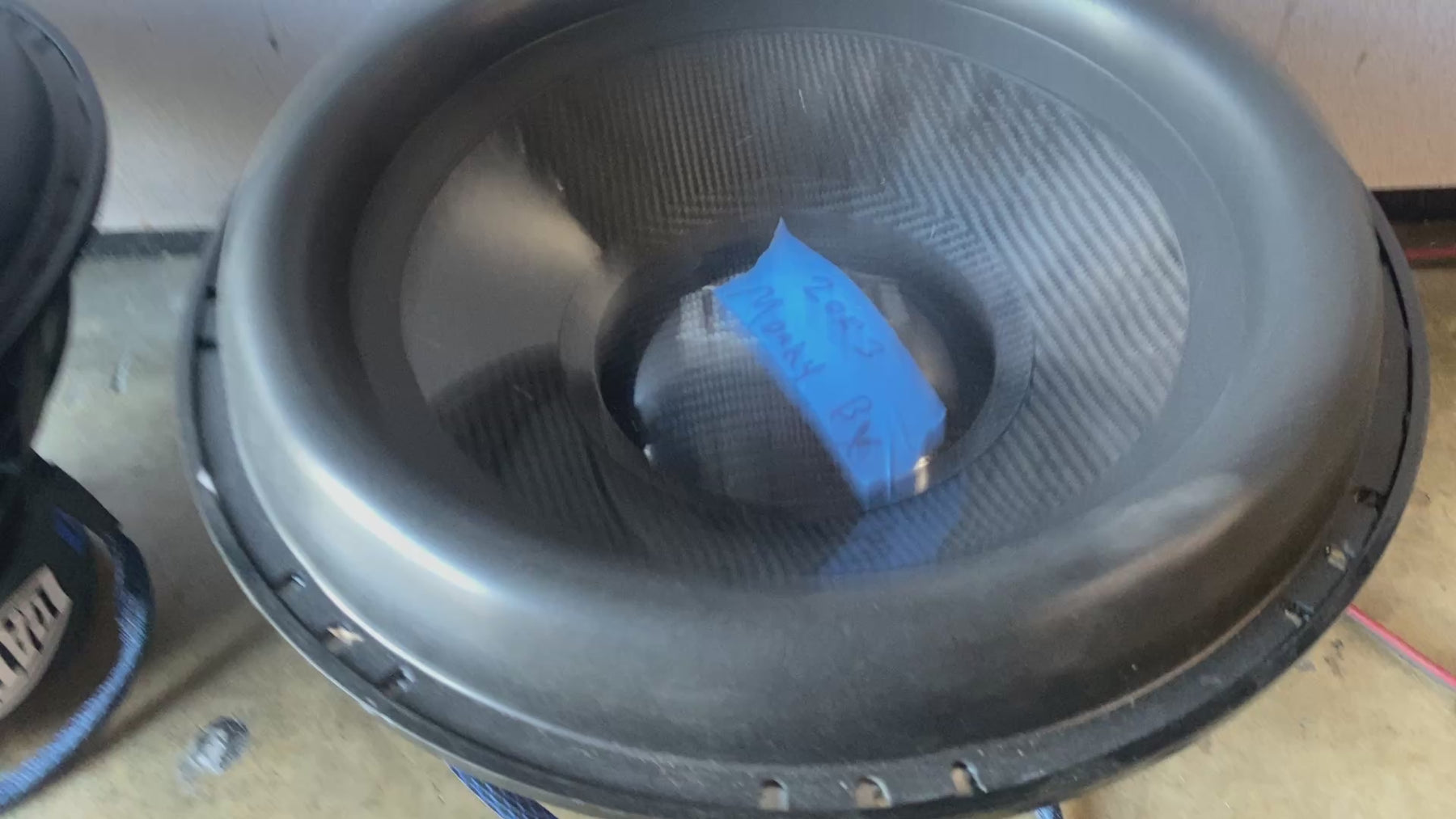

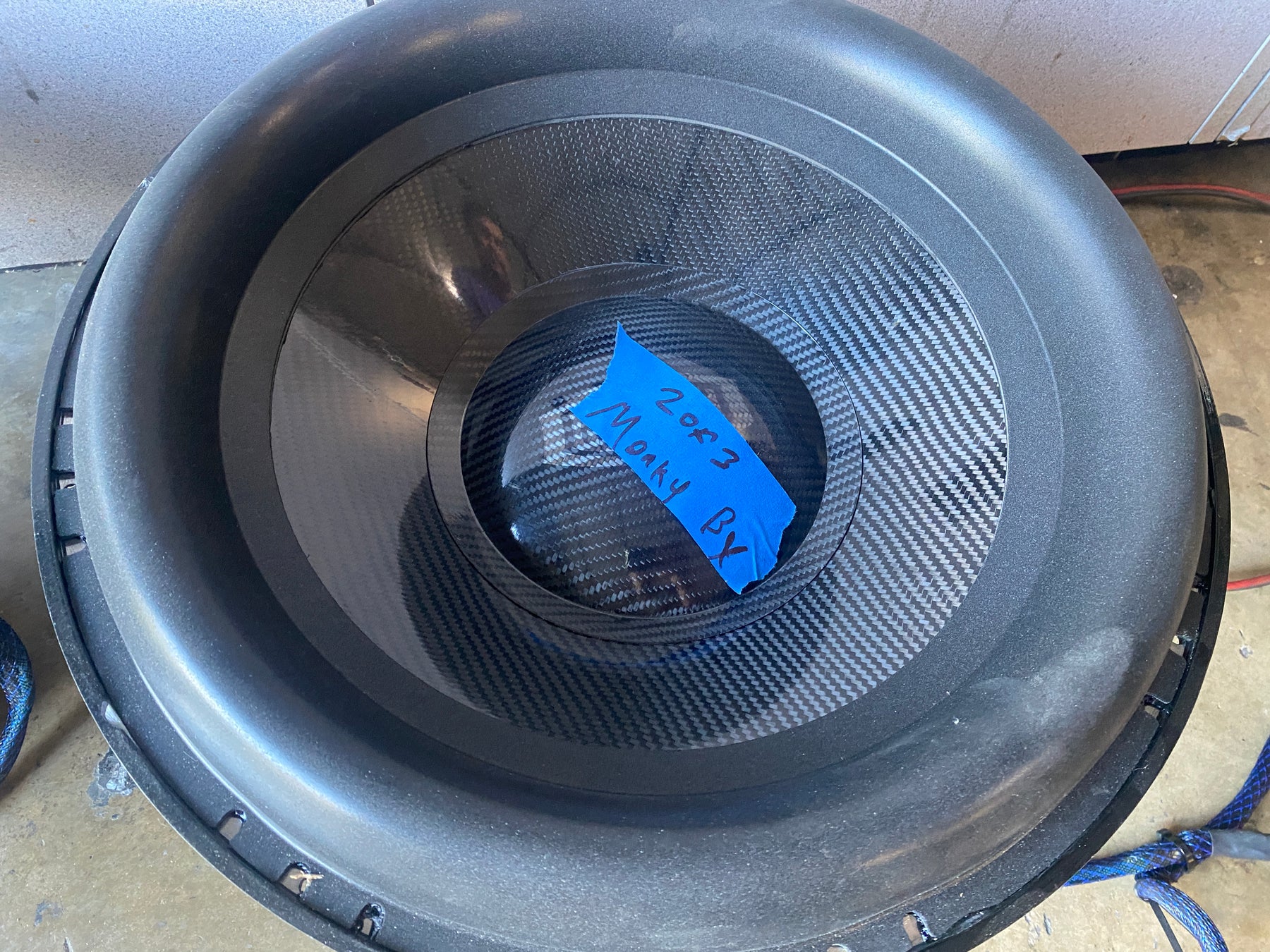

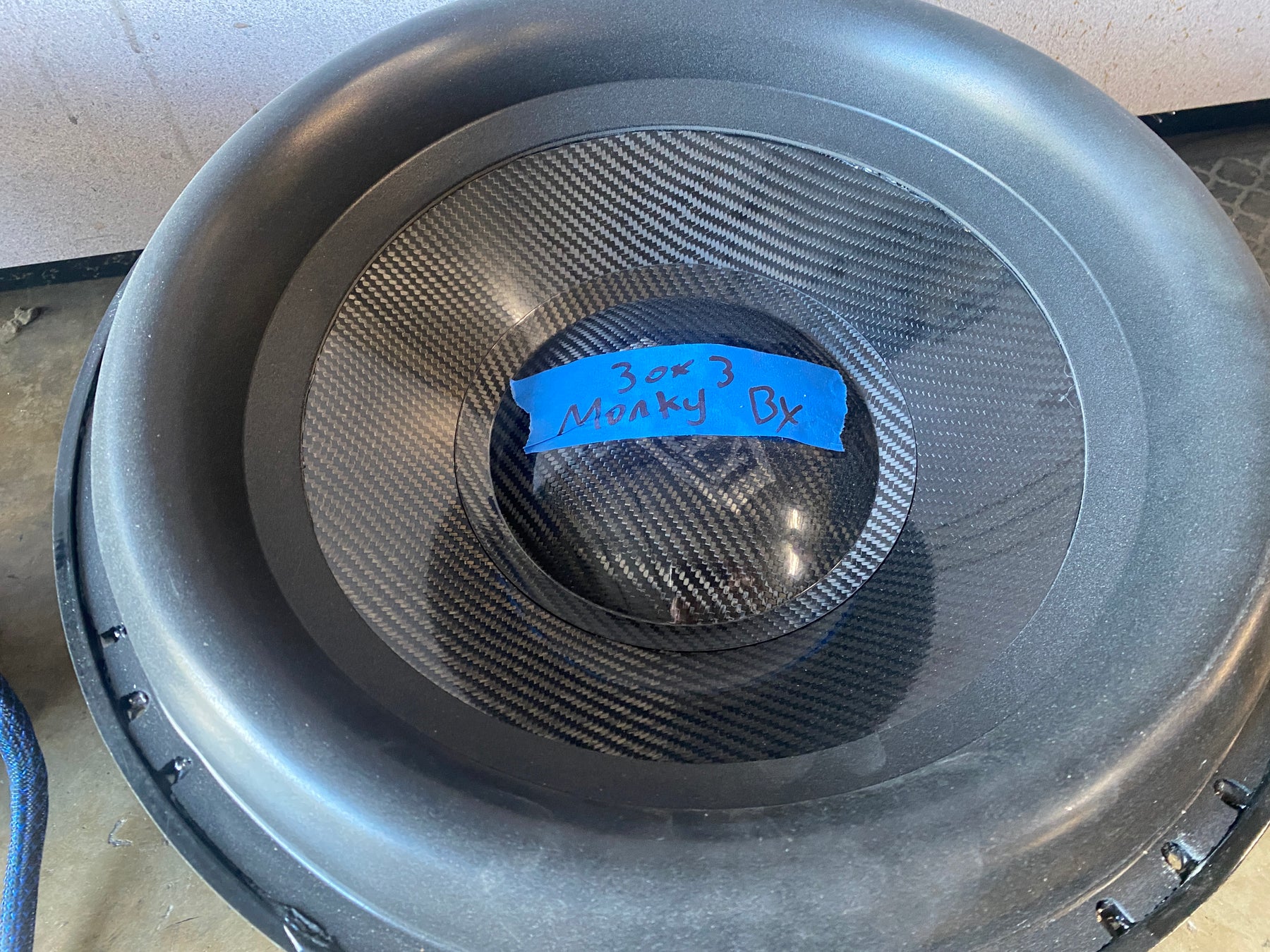

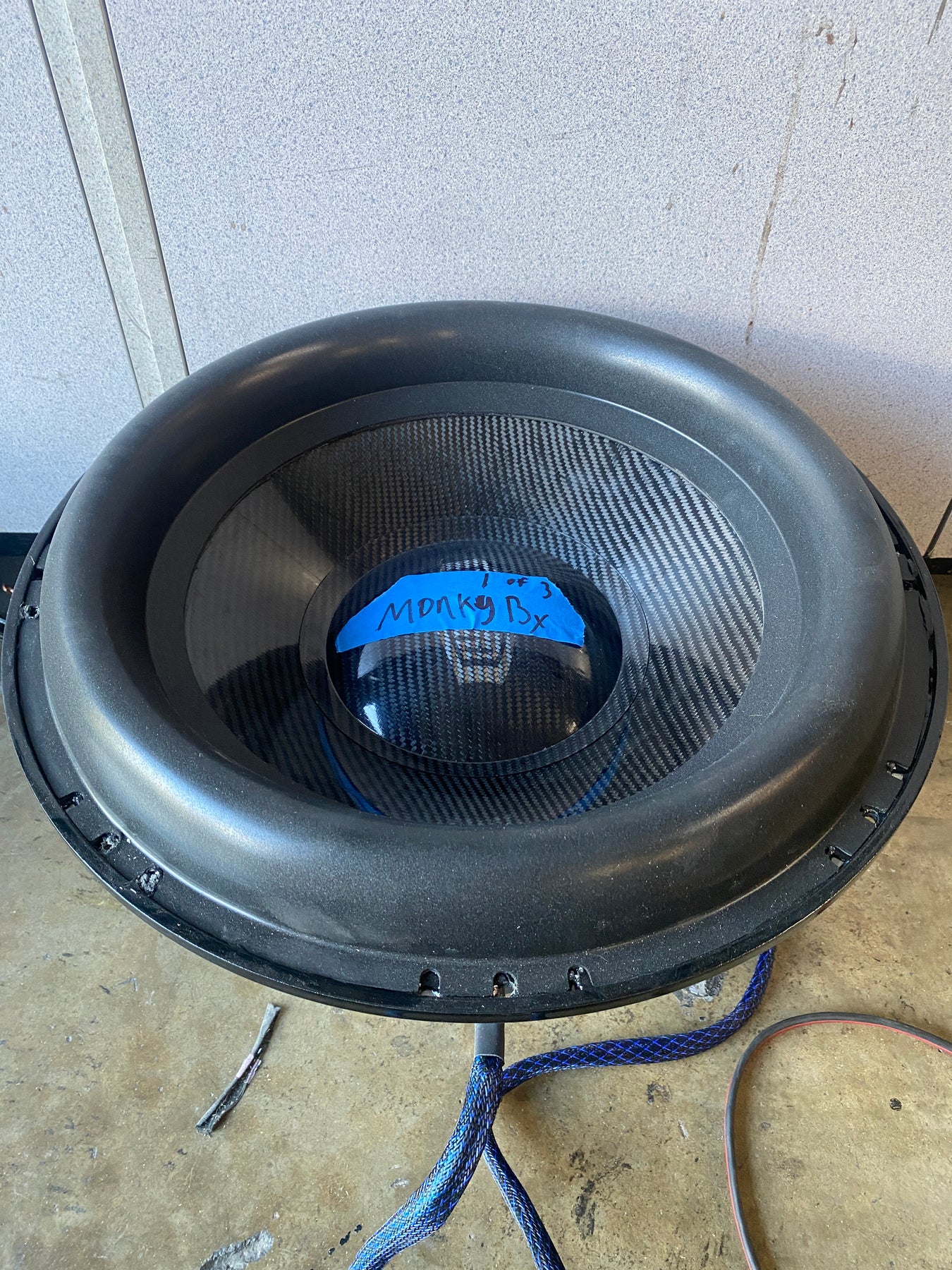

Gately Audio18" Subwoofer — used/Good working condition

Pulled out of the monky bx build to put in Gately Relentless Neo 4s

SOLD AS IS. NO REFUNDS. SHIPPING INCLUDED

Garage Sale Item

Weighs 70 lbs.

MOUNTING DEPTH = 11.75"

OUTSIDE DIAMETER = 18.5"

MOUNTING DIAMETER = 16.9375"

RECOMENDED ENCLOSURE = 6.5'-8'

RECOMENDED PORT AREA = 90"-115"

ONE WAY Xmax = 32mm

-------------------------------------------------------

Model: Relentless 18 Dual 1 ohm
f(s) = 33.61 Hz
Q(ts) = 0.8503
V(as) = 76.71 liters (2.709 cubic feet)
SPL = 86.67 dB SPL 1W/1m
Nominal Diam. = 0 mm (18 in.)

Model: Relentless 18 D1
R(e) = 1.475 Ohms
Q(es) = 0.9708
Piston Diam. = 381 mm (15 in.)
SPL = 94.01 dB SPL 2.83 Vrms
C(ms) = 0.042 mm/N

Z(max) = 11.88 Ohms
L(e) = 0.5823 mH at 10kHz
Q(ms) = 6.851
BL = 13.08
n(0) = 0.2861 %
M(ms) = 533.6 grams
