Gately Audio G5-1700D Amplifier

The Gately High Performance Car Audio Amplifiers exemplify excellence. With over 30 years of industry experience, the Gately Audio Amplifiers were developed to suit all car audio enthusiasts from the bass-head to the sound quality competitor.

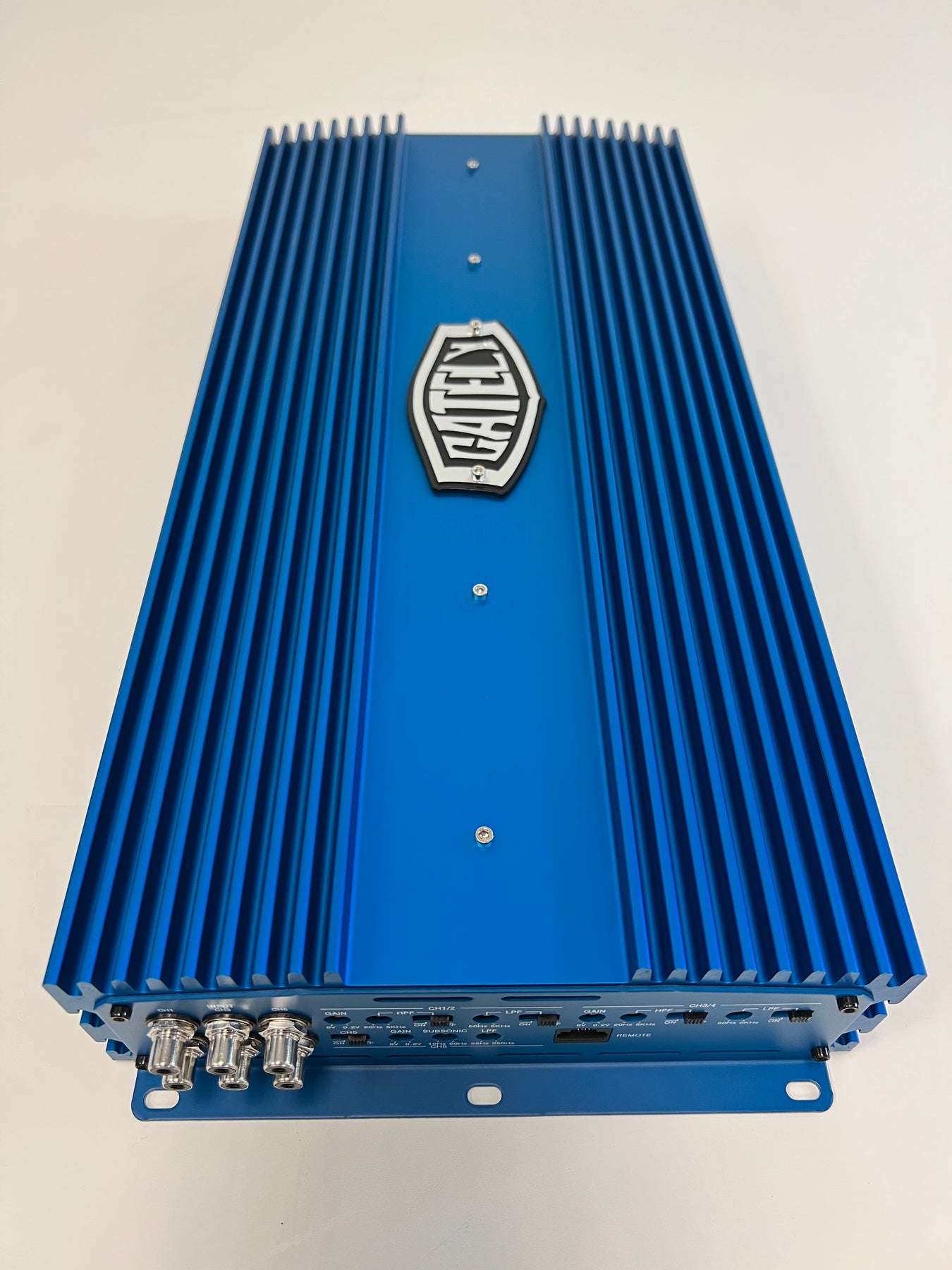

The anodized Gately Blue heatsink features an aluminum Gately emblem that can be adjusted to various positions to accommodate any number of amplifier configurations.

G5-1700D FEATURES

• Full Range Digital 5 Channel Amplifier
• Double Sided Through Hole Epoxy PCB
• Multi-Way Protection Circuitry (Thermal/Voltage/Speaker Short/DC Offset)
• Wired Remote Control Bass Knob displays Voltage, Temperature, and Clip light

G5-1700D SPECIFICATIONS

• Dimensions: 19.5" long x 3" tall X 8.625" wide
• Weight: 14.6lbs.
• Input Sensitivity : 6V - 0.2V
• 1300 x 1 @ 1 ohms RMS Stereo
• 220 x 4 + 800 x 1 @ 2 ohms RMS Stereo
• 125 x 4 +480 x 1 @ 4 ohms RMS Stereo
• 2 OHM Stereo Stable / 4 OHM Bridged Stable
• Variable Subsonic Crossover Filter : 10HZ - 100HZ
• Variable High Pass Filter : 50HZ - 5000HZ
• Variable Low Pass Filter : 50HZ - 5000HZ
• Ch 5 Subsonic 10Hz - 50Hz, low pass filter 35Hz - 250Hz
• Efficiency : 75% 4OHM, at 100HZ
• Signal / Noise Ratio : 105DB <
• Damping Factor : 400 <
• Frequency Response : 10 Hz – 25khz
• 12DB/ OCT Variable Crossover Slope (HPF/LPF)
• 12DB/ OCT Variable Subsonic Crossover Slope
• Tested Voltage & THD : 12.8V & Less Than 1% THD
• Operation Voltage : DC 9V - 15.5V Power Input
• Recommended Fuse : 200 Amps
• 1/0 Gauge Power and Ground Inputs
