High-Power Multi-Channel Amplifier With Accubass®

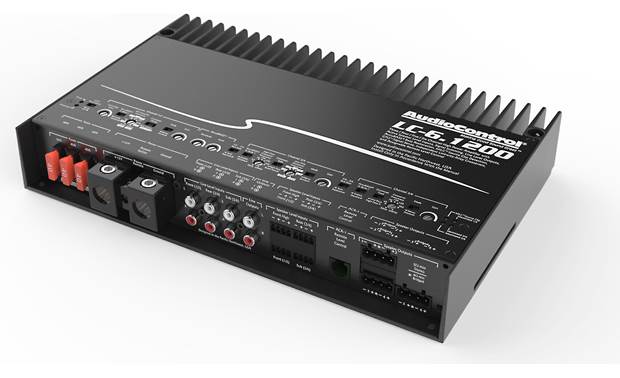

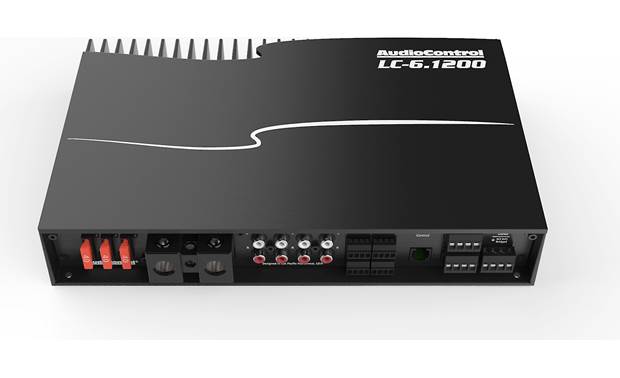

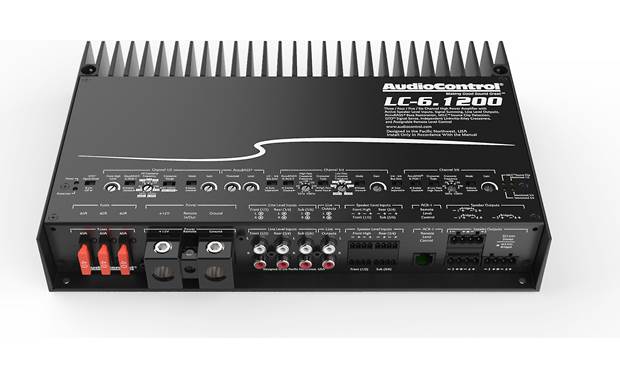

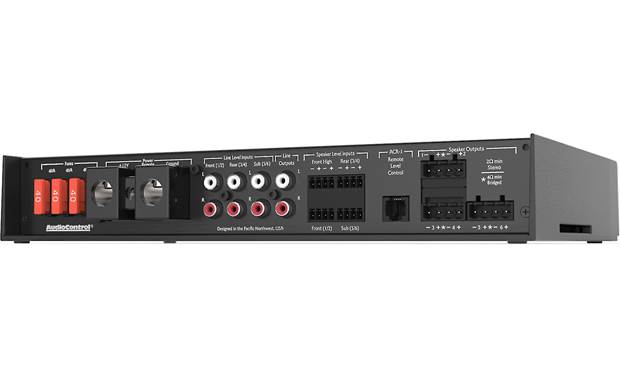

Building from the hugely successful LC-4.800 multi-channel amplifier, the LC-6.1200 is surely the most flexible 6 channel amplifier on the market. Featuring eight active speaker level inputs with summing, coupled with an intuitive three-way Linkwitz-Riley crossover network, the LC-6.1200 can be easily integrated with most factory installed source units. The patented AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.

More control and features include our GTO Signal Sense, MILC Source Clip Detection and assignable Remote Level Control. The LC-6.1200 builds on the legacy of audio passion and a focus on user-friendly features, making this a perfect solution based amplifier.

Features

  • Configurable as 6/5/4/3/2 channel amplifier
  • 6 x 200 watts @ 2 ohms
  • 6 x 125 watts @ 4 ohms
  • 400 watts @ 4 ohms bridged
  • AccuBASS® Processing
  • MILCTM Maximum Input Level Control (Patent Pending)
  • GTOTM Signal Sense
  • 3-way Independent Linkwitz-Riley Alignment crossovers
  • Summable active speaker-level inputs (8 channels) for OEM integration
  • 6 preamp inputs
  • 2 assignable preamp outputs
  • PFM Subsonic Filter
  • Optional ACR-1 assignable remote control
  • Solid One-Piece Aluminum Chassis

Specifications

Inputs

  • Preamp Inputs: 6 balanced
  • Preamp Input Voltage Range: 250 mV – 8 V RMS
  • Speaker Level Inputs: 8

Outputs

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 125 W x 6 RMS
    • 2 Ω – 200 W x 6 RMS
    • Bridged 4 Ω – 400 W RMS
  • Preamp Outputs: 2
  • Maximum Preamp Output: 8.5 V RMS

Performance

  • Frequency Response: 10 Hz – 30 kHz
  • Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
  • THD+N: < 0.1%
  • Minimum Power / Ground Wire Gauge: 3 AWG wire
  • Fuse Rating: 3 x 40 A
  • Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz

Weights & dimensions

  • Dimensions: 12″W x 8.0″D x 2.1″H
  • Weight: 7.2lbs. (3.3kg)

In the box: LC-6.1200, Speaker Connectors, Fuses, Manual, Warranty
