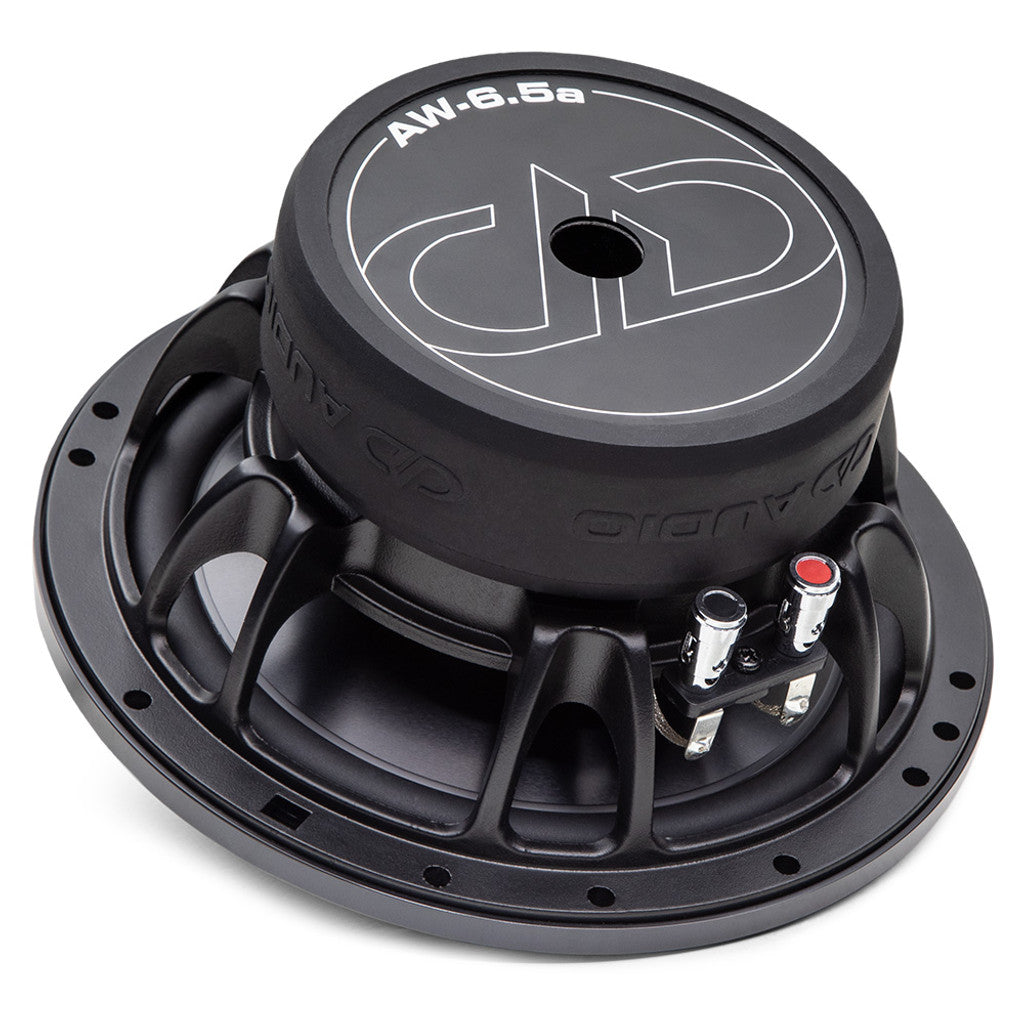

DD Audio AW-6.5a A Series Mid Woofer
- Free shipping*
- In stock, ready to ship
- Inventory on the way
AW-6.5a
A SERIES MID WOOFER
The AW-6.5a mid-woofers represent “state of the art” in driver technology. The open design cast aluminum baskets provide an ultra rigid support system while also functioning as an additional heatsink and shorting ring. A high-energy double shorting ring motor is matched to a 1.5” copper clad aluminum wire, Kapton former voice coil, providing balanced output efficiency and power handling. The inverted butyl rubber surround and composite spider work in tandem to damp unwanted vibrations while providing control and linearity. An aluminum cone with a b dustcap offers the neutral sound of a pulp cone with the precision only an ultra rigid cone can deliver. This combination achieves wide bandwidth and efficient energy transfer to the air.
State of the Art engineering coupled with extensive listening based development yield a sound stage you must experience to believe.
Features
-
Aluminum Cone
-
Curve Linear Cone Profile
-
Cast Basket
-
Acoustically Damping Butyl Dustcap
-
Inverted Butyl Surround
-
Acoustically Treated Rear Surround Edge
-
Flat Braided, Spider Contoured Tinsel Leads
-
1.5” CCA Voice Coil w/ Kapton Former
-
Triple Shorting Ring Design
-
High Energy 20mm Thick Ferrite Motor
-
Laser Etched Back Plate
-
Machined Aluminum Grill with HB Geodesic Pattern
-
Compatible w/ Optional CX02 2-Way Passive Crossover
AW-6.5a: 75W to 200W – 6.5 Inch Woofer
Speaker Size (In): | 6.5 |
Watts RMS: | 75 |
Watts Peak: | 200 |
Impedance: | S4 |
VCD (In): | 1.5 |
Frequency Response (Hz): | 50 - 20k |
Fs (Hz): | 62 |
Qms: | 4.835 |
Qes: | 0.452 |
Qts: | 0.413 |
Vas: | 14.714 |
dBSPL: | 91 |
Mounting Diameter (In): | 5.75 |
Mounting Depth (In): | 2.9 |
Price (USD): | 299 per pair |
