High-Power Multi-Channel Amplifier With Accubass®

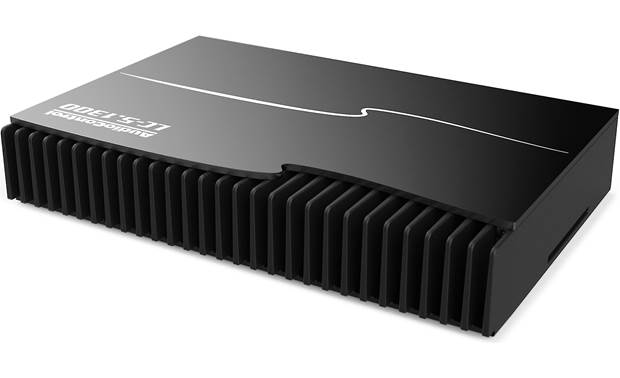

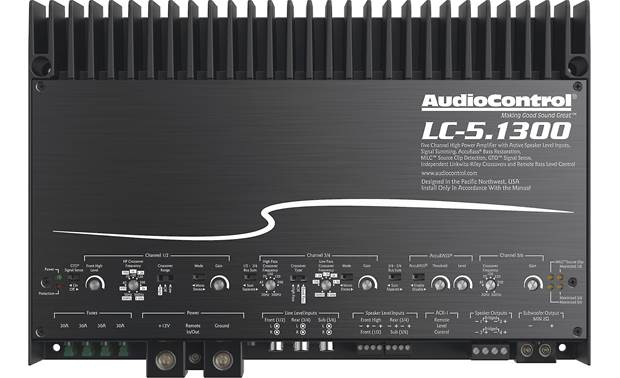

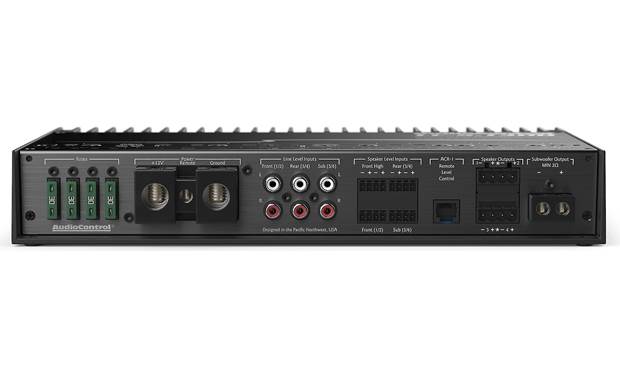

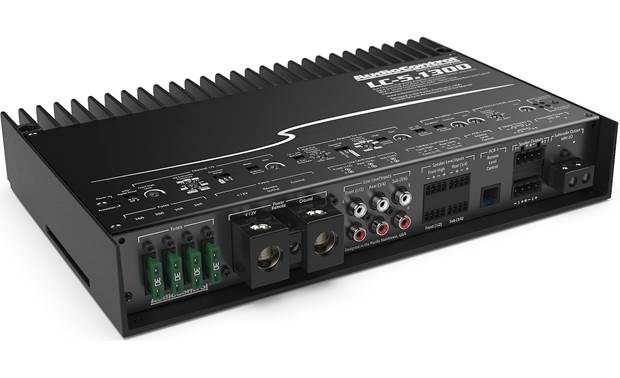

The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.


Features

  • Configurable as 5 or 3 channel amplifier
  • 4 x 200 watts + 1 x 500 watts @ 2 ohms
  • 4 x 100 watts + 1 x 300 watts @ 4 ohms
  • 400 watts @ 4 ohms bridged
  • AccuBASS® Processing
  • MILCTM Maximum Input Level Control (Patent Pending)
  • GTOTM Signal Sense
  • 3-way Independent Linkwitz-Riley Alignment crossovers
  • Summable active speaker-level inputs (8 channels) for OEM integration
  • 6 preamp inputs
  • PFM Subsonic Filter
  • Optional ACR-1 assignable remote control
  • Solid One-Piece Aluminum Chassis

Specifications

Inputs

  • Preamp Inputs: 6 balanced
  • Preamp Input Voltage Range: 500 mV – 6 Vrms
  • Speaker Level Inputs: 8
  • Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 100 W x 4 + 300 W x 1
    • 2 Ω – 200 W x 4 + 500 W x 1
    • Bridged 4 Ω – 400 W

Performance

  • Frequency Response: 20 Hz – 22 kHz
  • Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
  • THD+N: < 0.1%
  • Minimum Power / Ground Wire Gauge: 3 AWG wire
  • Fuse Rating: 4 x 30 A
  • Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz

Weights & dimensions

  • Dimensions: 12.0″W x 8.0″D x 2.1″H
  • Weight: 7.2lbs. (3.3kg)

In the box: LC-5.1300, Speaker Connectors, Fuses, Manual, Warranty
