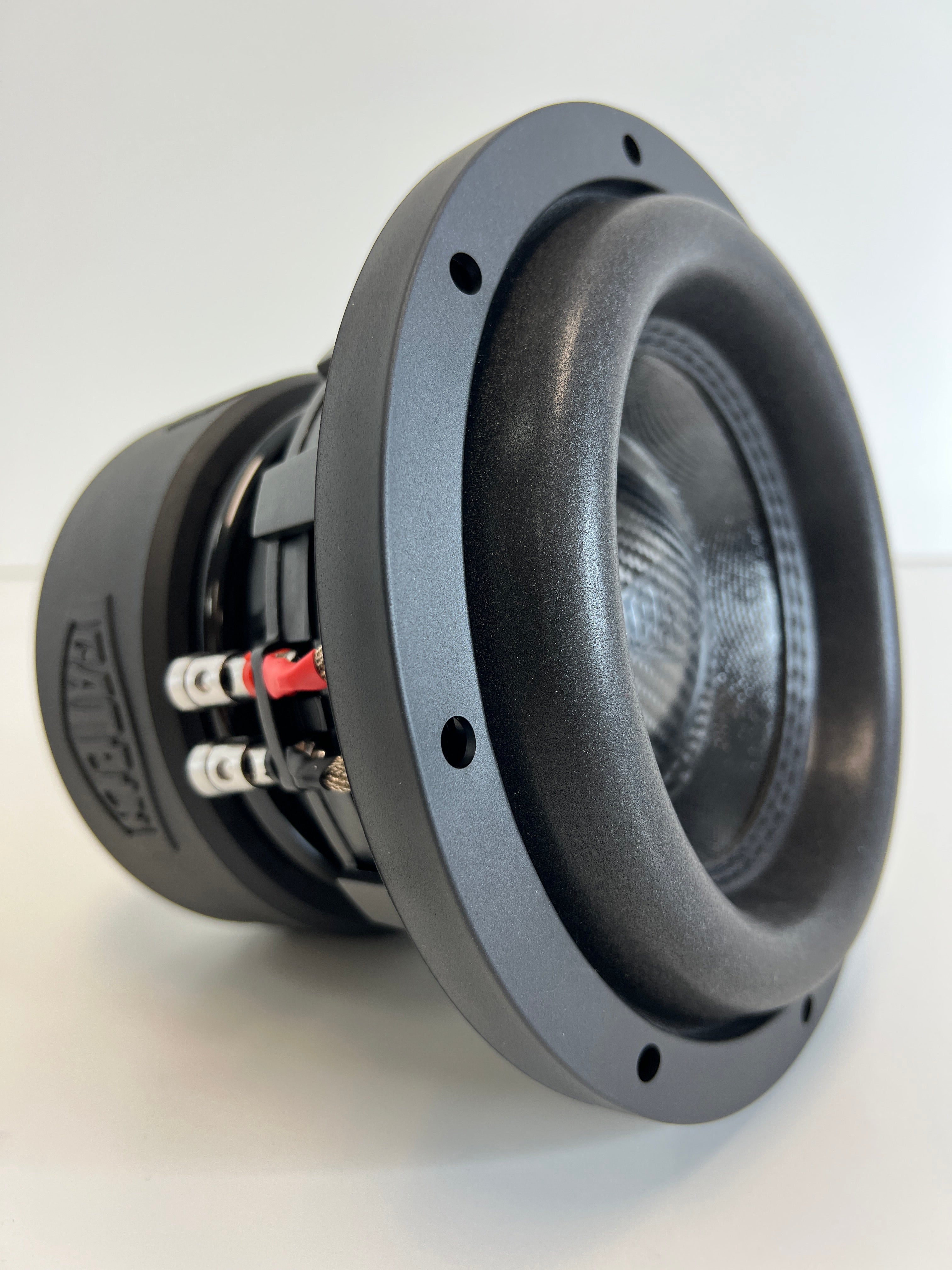

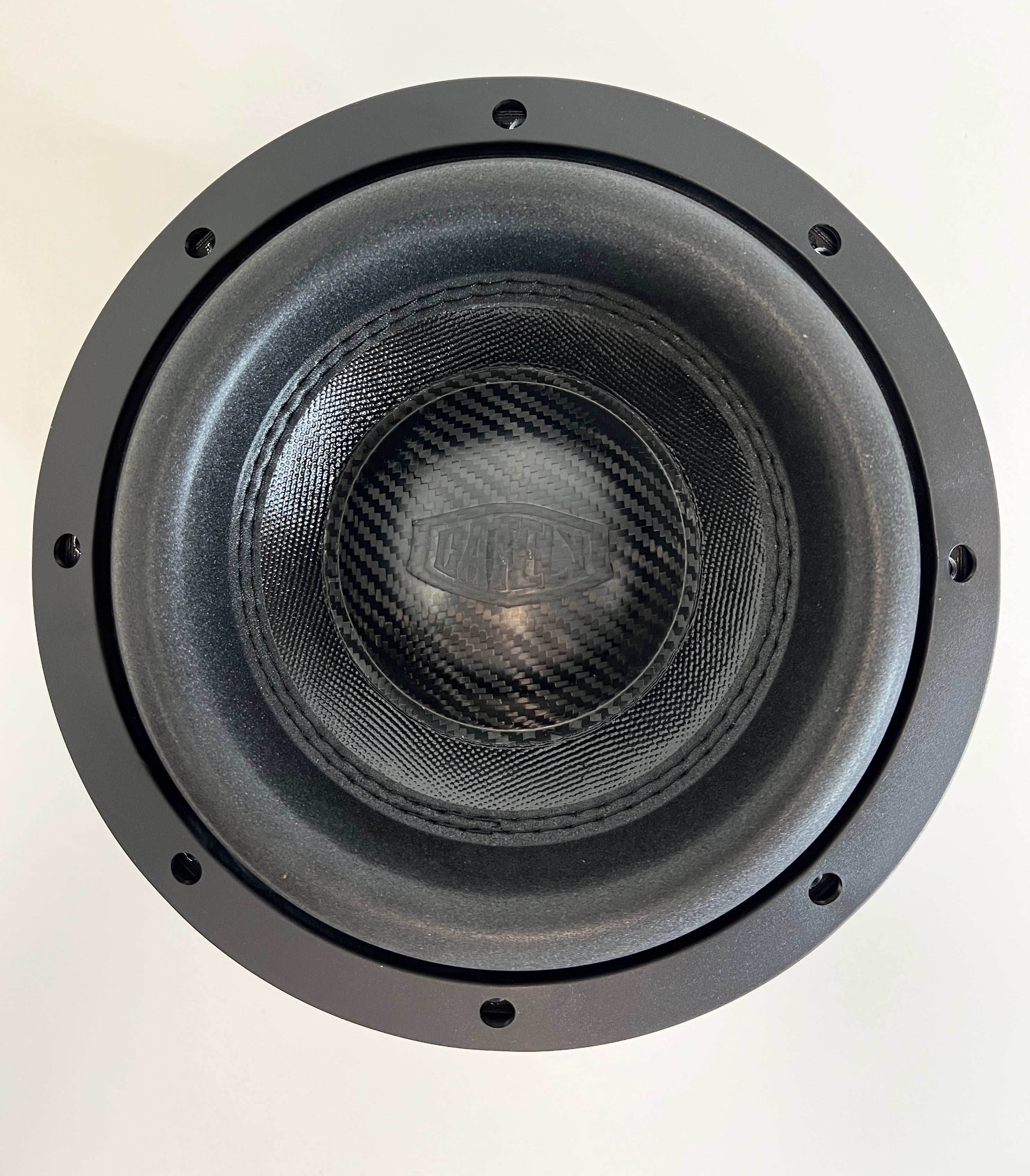

Embossed Gately Audio Carbon Fiber dustcap with paper cone stitched to a high roll surround.

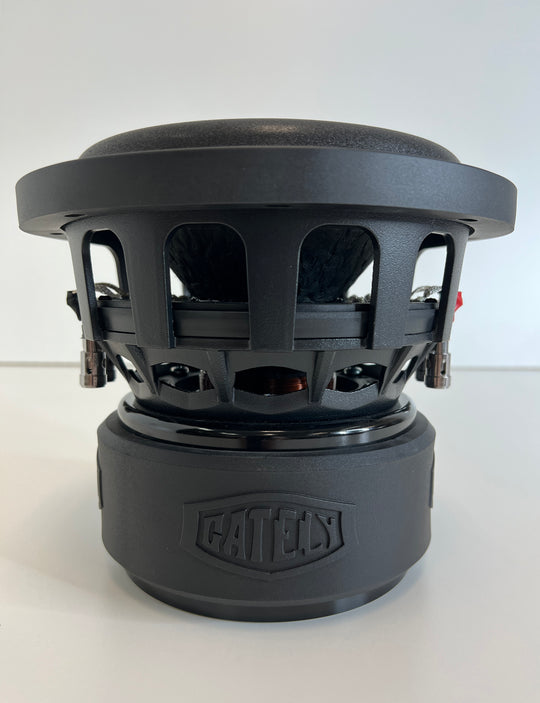

Black powder-coated GATELY engineered basket.

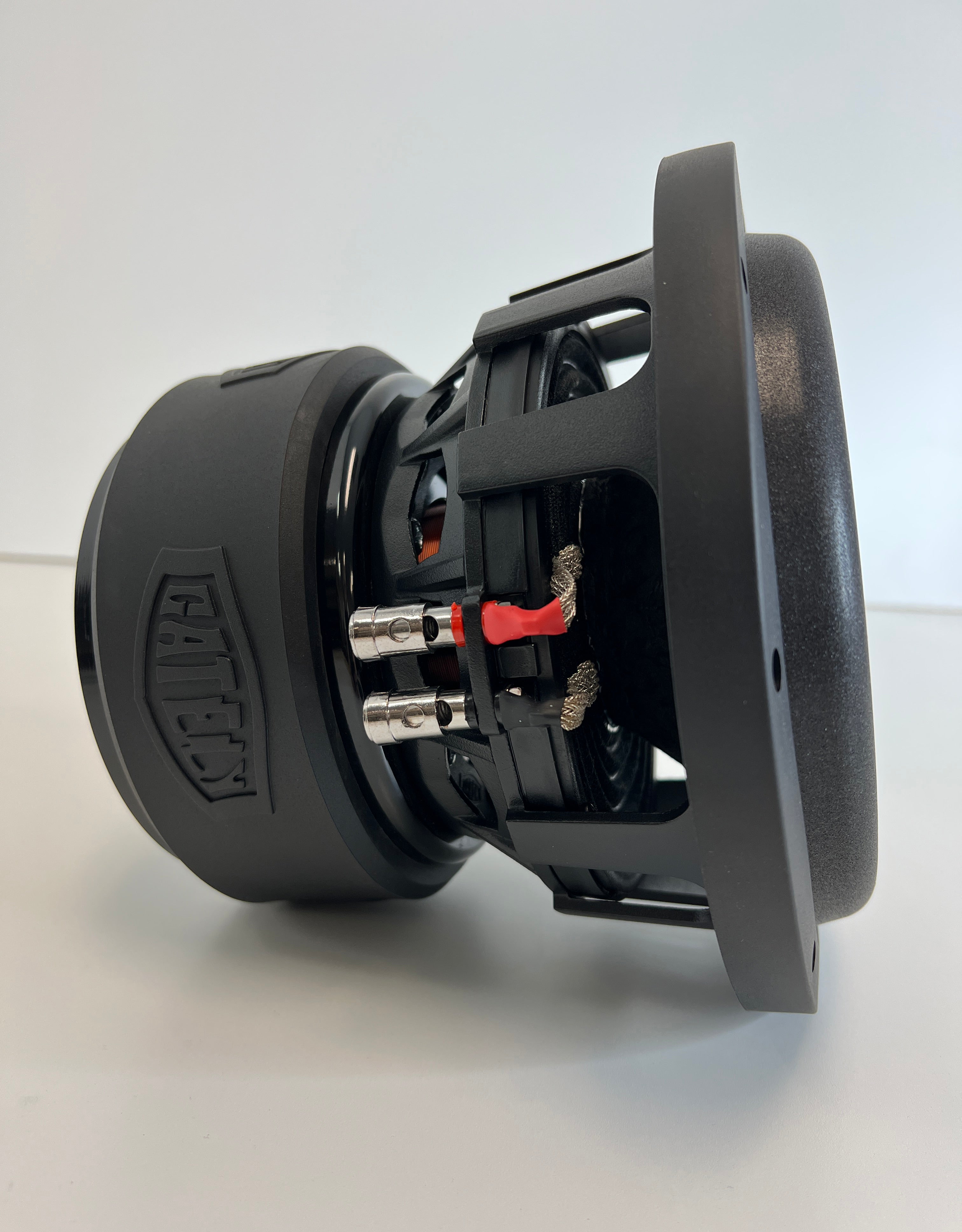

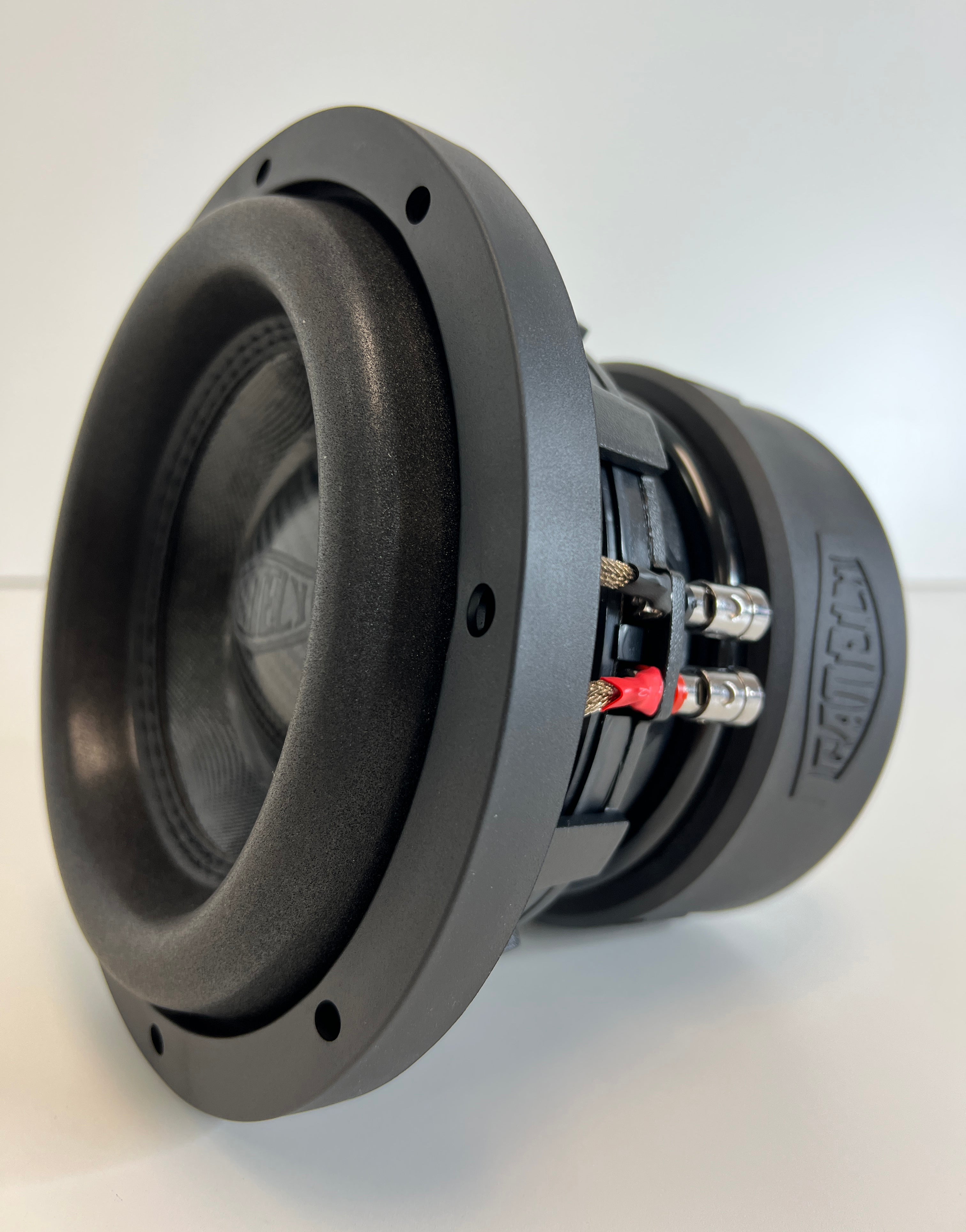

Dual Progressive nomex spiders with stitched flat wound tinsel leads connect to oversized push terminals.

Alpha 6.5” use a 2” 4 layer high temp copper wound while the 8” Alpha subwoofers use a 2.5” voice coil of the same quality.

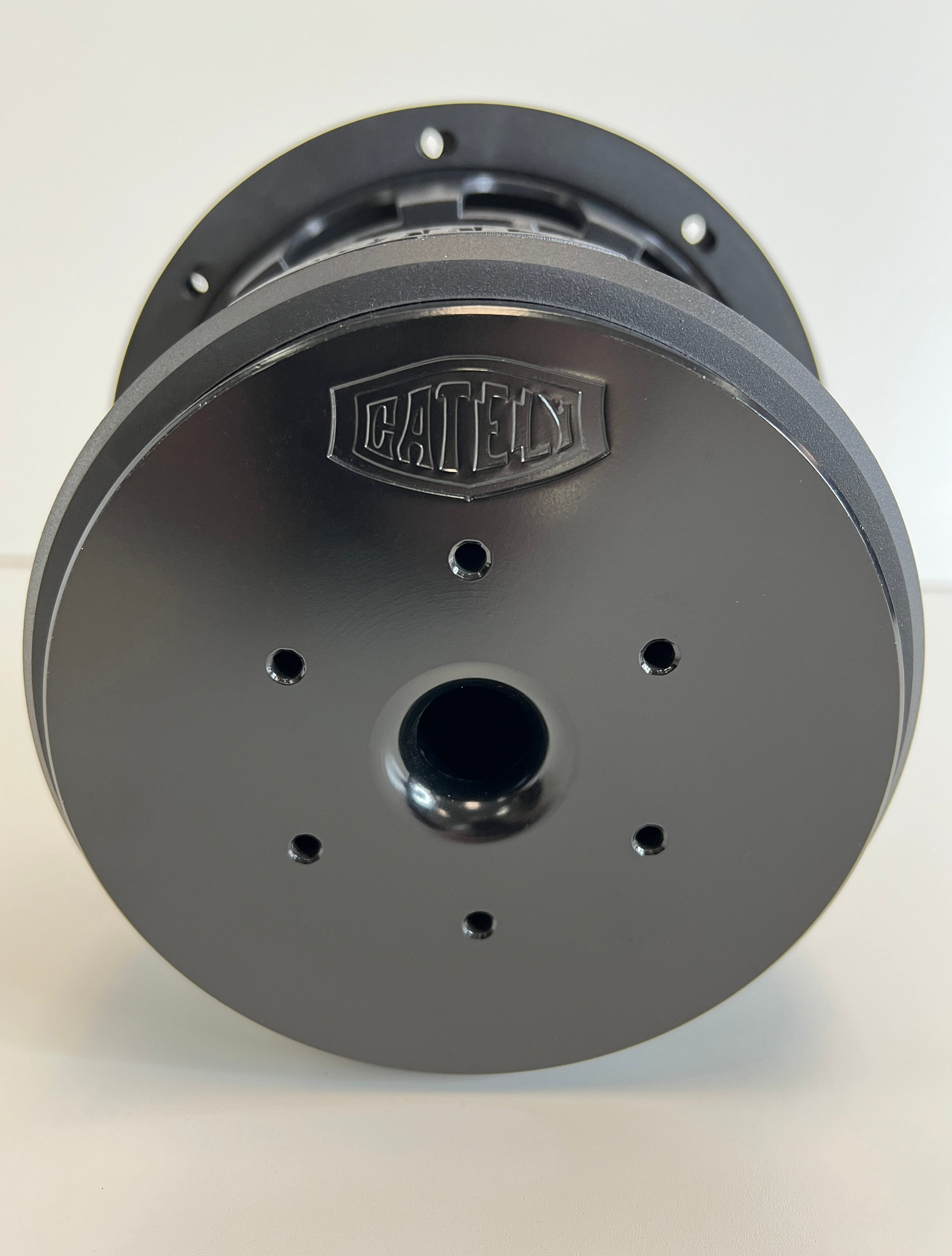

Alpha 8” have a motor structure that consists of a 2 layer Y35 ferrite magnet that measures 6.14” in diameter by 0.99” thick per slug.

For dimensions, see product specifications in images.

Cutout Diameter 7.24"
Mounting Depth 6.14"
Weight : 22 lbs

Model: Alpha 8 D2
f(s) = 44.18 Hz
Q(ts) = 0.5747
V(as) = 3.745 liters (0.1323 cubic feet)
SPL = 78.87 dB SPL 1W/1m
Nominal Diam. = 0 mm (8 in.)
R(e) = 4.27 Ohms
Q(es) = 0.6481
Piston Diam. = 158.8 mm (6.25 in.)
SPL = 81.59 dB SPL 2.83 Vrms
C(ms) = 6.8e-05 mm/N
Z(max) = 37.74 Ohms
L(e) = 4.953 mH at 1kHz
Q(ms) = 5.079
BL = 18.68
n(0) = 0.04751 %
M(ms) = 190.7 grams

------------------------------------------------

Model: Alpha 8 D3
f(s) = 49.16 Hz
Q(ts) = 0.6421
V(as) = 3.44 liters (0.1215 cubic feet)
SPL = 79.38 dB SPL 1W/1m
Nominal Diam. = 0 mm (8 in.)
R(e) = 6.414 Ohms
Q(es) = 0.7291
Piston Diam. = 158.8 mm (6.25 in.)
SPL = 80.34 dB SPL 2.83 Vrms
C(ms) = 6.3e-05 mm/N
Z(max) = 53.76 Ohms
L(e) = 6.516 mH at 1kHz
Q(ms) = 5.382
BL = 21.34
n(0) = 0.05343 %
M(ms) = 167.7 grams

------------------------------------------------

Model: Alpha 8 D4
f(s) = 46.47 Hz
Q(ts) = 0.6209
V(as) = 3.858 liters (0.1363 cubic feet)
SPL = 79.19 dB SPL 1W/1m
Nominal Diam. = 0 mm (8 in.)
R(e) = 8.098 Ohms
Q(es) = 0.722
Piston Diam. = 158.8 mm (6.25 in.)
SPL = 79.13 dB SPL 2.83 Vrms
C(ms) = 7e-05 mm/N
Z(max) = 57.88 Ohms
L(e) = 7.866 mH at 1kHz
Q(ms) = 4.438
BL = 23.41
n(0) = 0.05112 %
M(ms) = 167.3 grams
