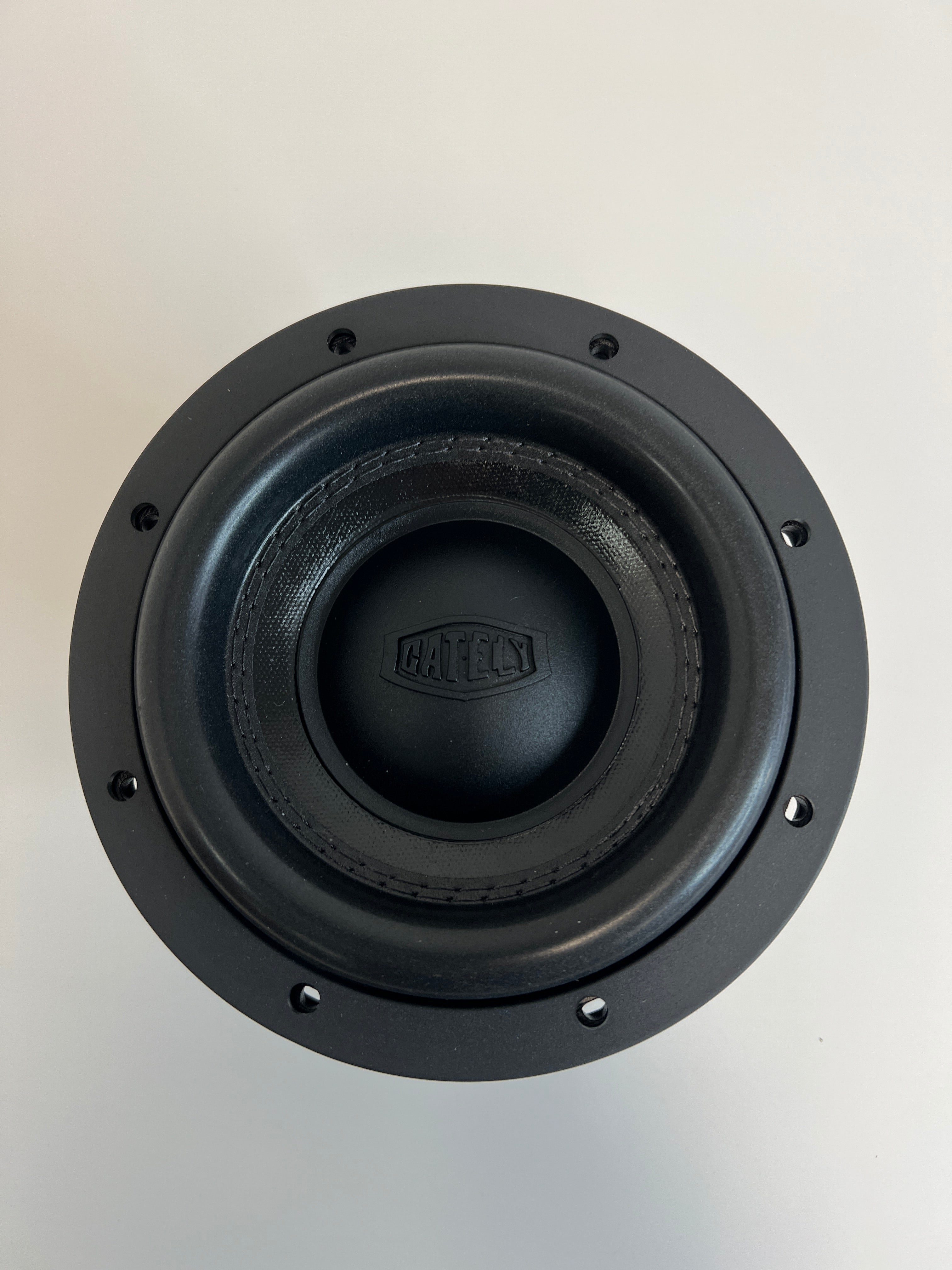

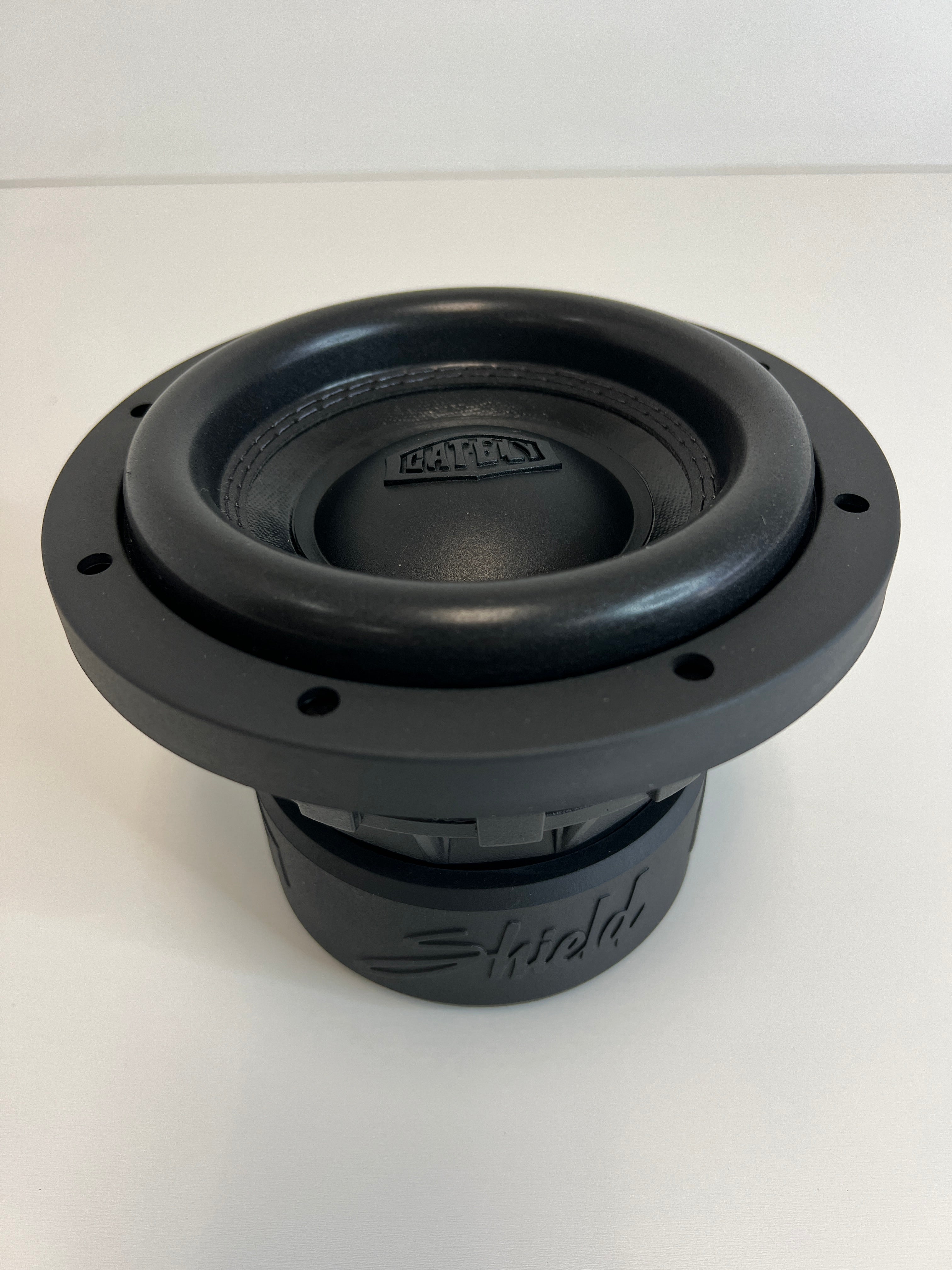

Gately Logo Embossed dustcap with paper cone stitched to a high roll surround.

Black powder-coated GATELY engineered basket

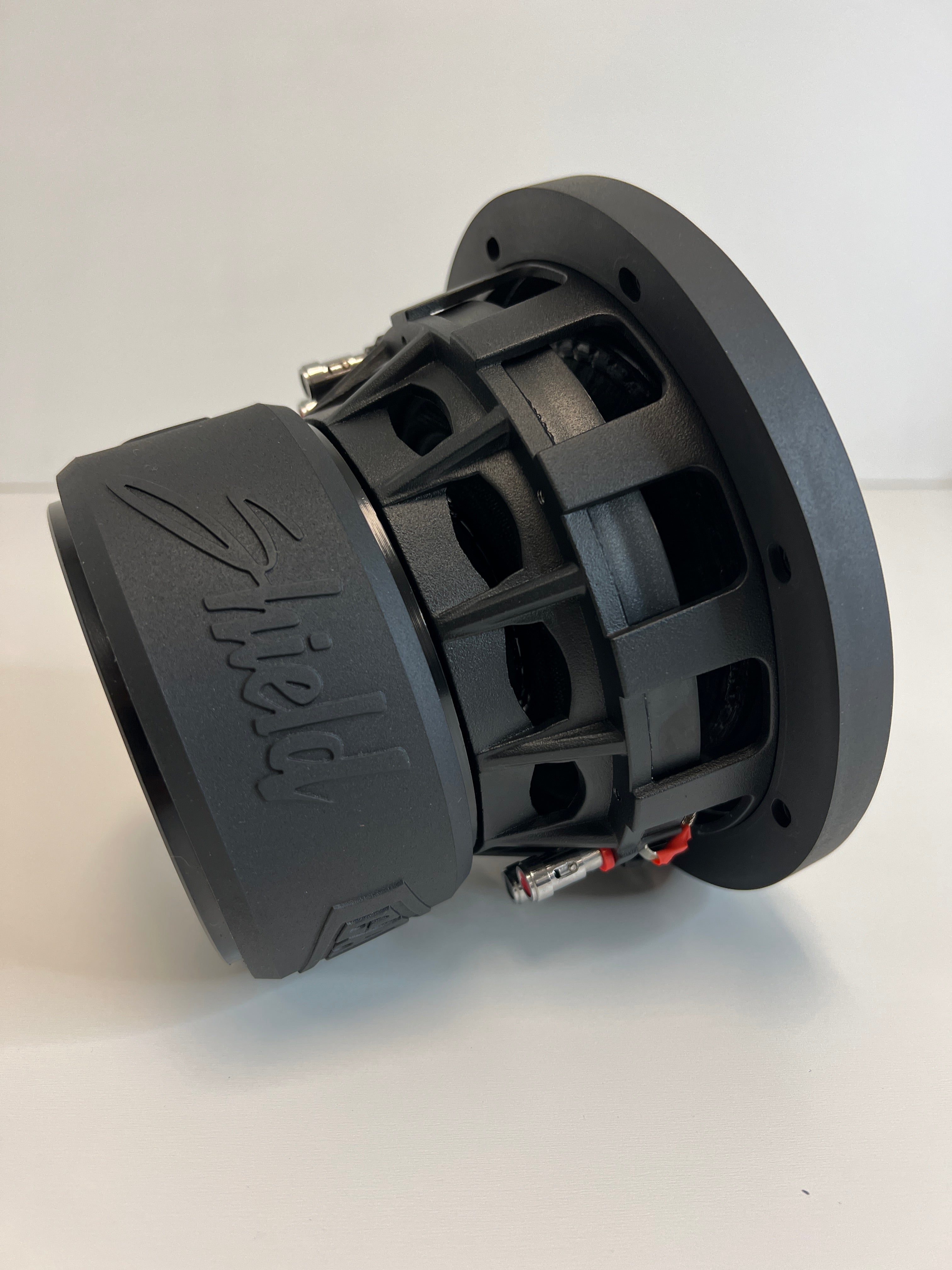

Dual Progressive nomex spiders with stitched flat wound tinsel leads connect to oversized push terminals.

Shield 6.5” use a 2” 4 layer high temp copper wound while the 8” Shield subwoofers use a 2.5” voice coil of the same quality.

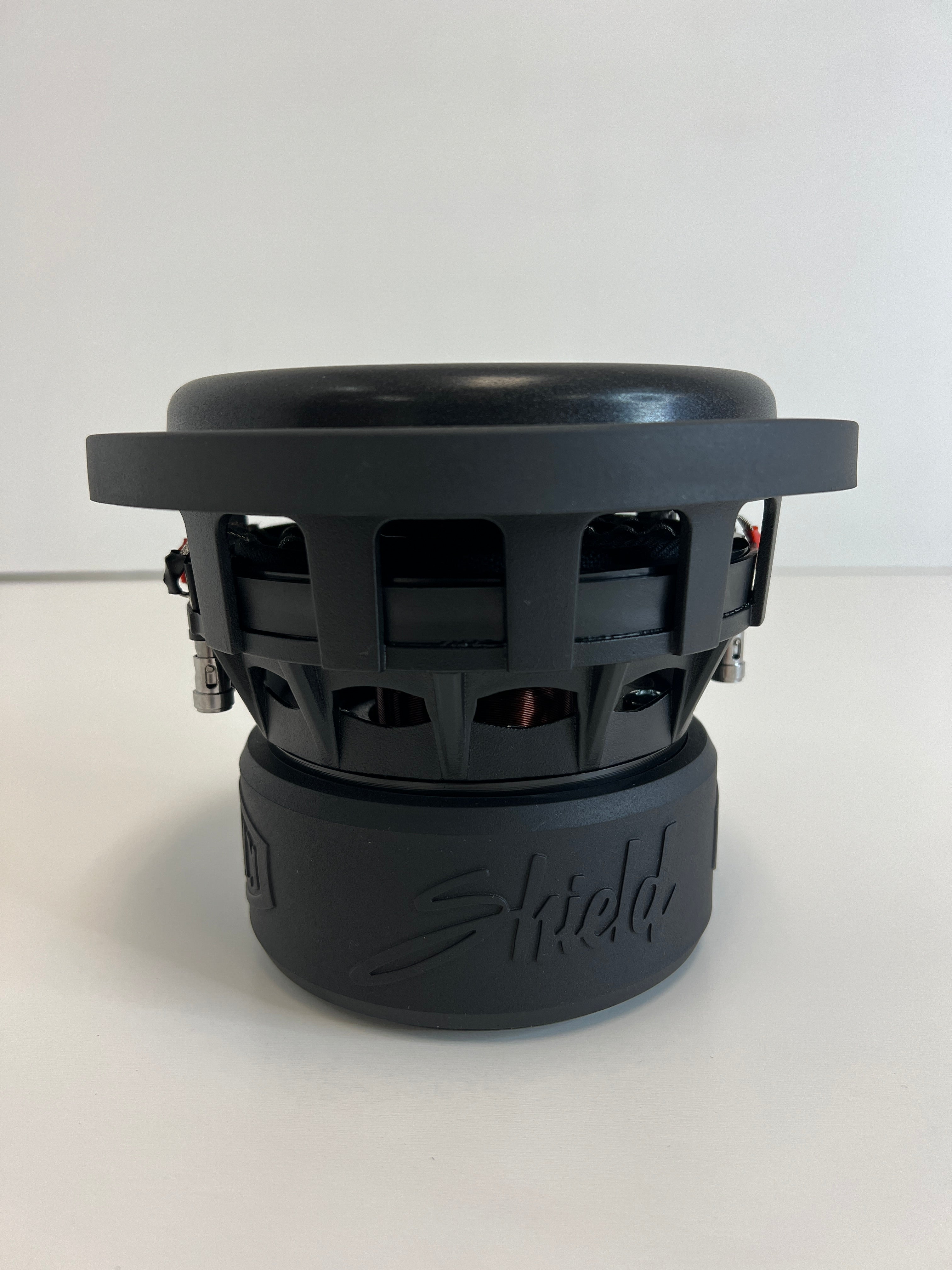

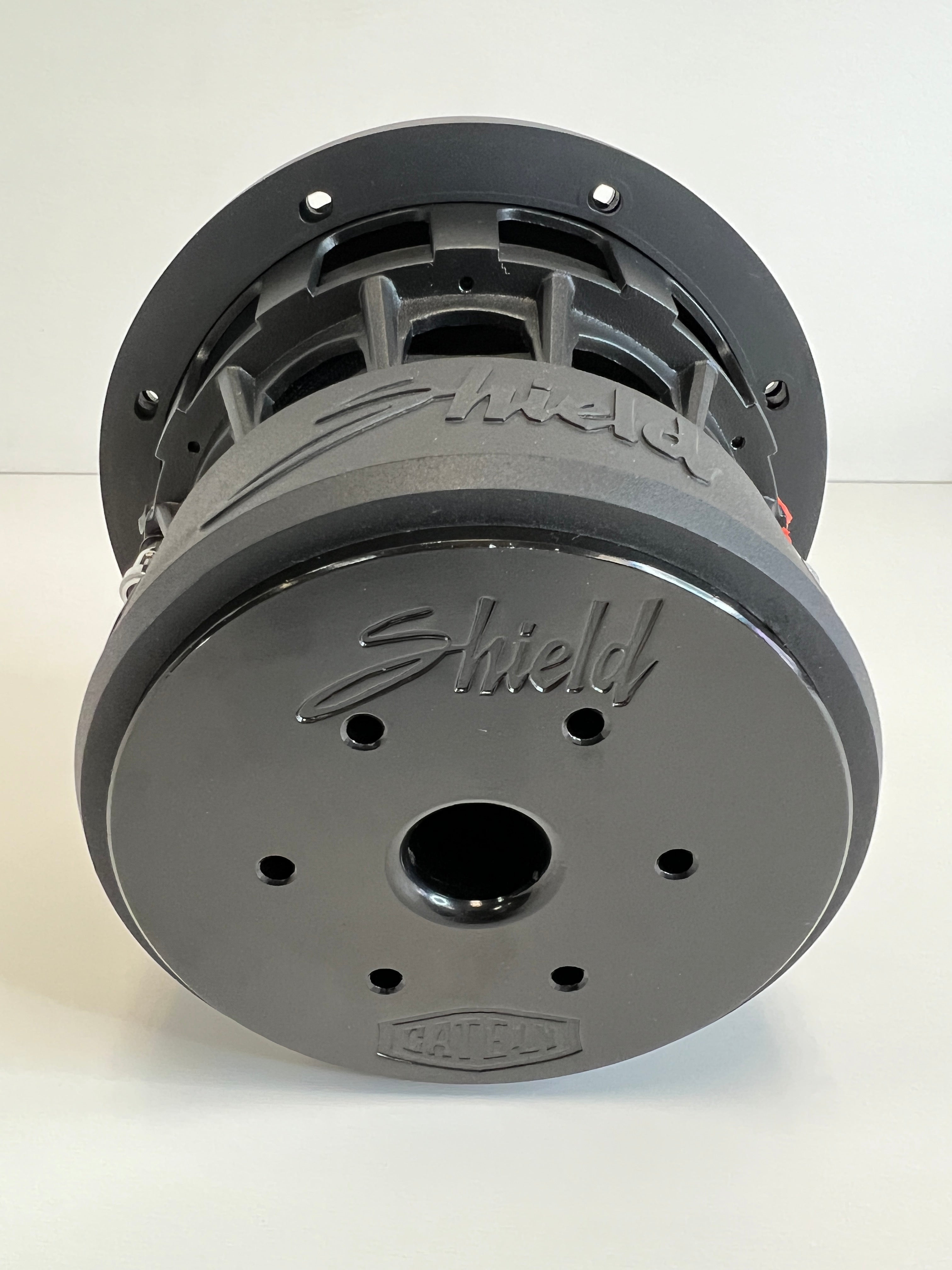

Shield 6.5” have a motor structure that consists of a 2 layer Y35 ferrite magnet that measures 4.75” in diameter by 0.79” thick per slug.

Mounting depth = 4.75"
Mounting diameter = 5.9375"
Outside diameter = 7.25"
Weight : 10lbs

Recommended sealed enclosure = .17'-.25'
Recommended Ported enclosure = .25'-.65'

Model: Shield 6.5 D3
f(s) = 54.57 Hz
Q(ts) = 0.6937
V(as) = 2.755 liters (0.09727 cubic feet)
SPL = 79.34 dB SPL 1W/1m
Nominal Diam. = 0 mm (6.5 in.)
R(e) = 6.387 Ohms
Q(es) = 0.8056
Piston Diam. = 130.2 mm (5.125 in.)
SPL = 80.32 dB SPL 2.83 Vrms
C(ms) = 0.000111 mm/N
Z(max) = 45.97 Ohms
L(e) = 4.039 mH at 1kHz
Q(ms) = 4.993
BL = 14.45
n(0) = 0.05299 %
M(ms) = 76.81 grams
