Garage Sale DC 5.0k
- Low stock - 1 item left

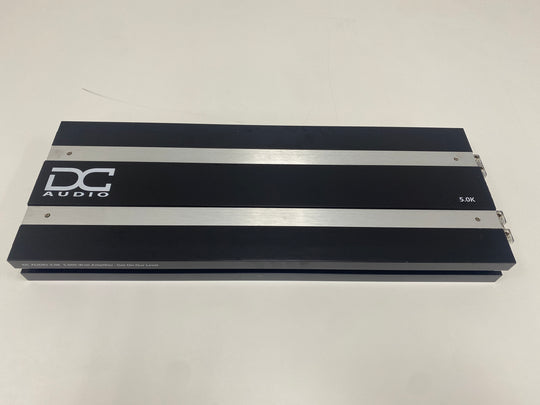

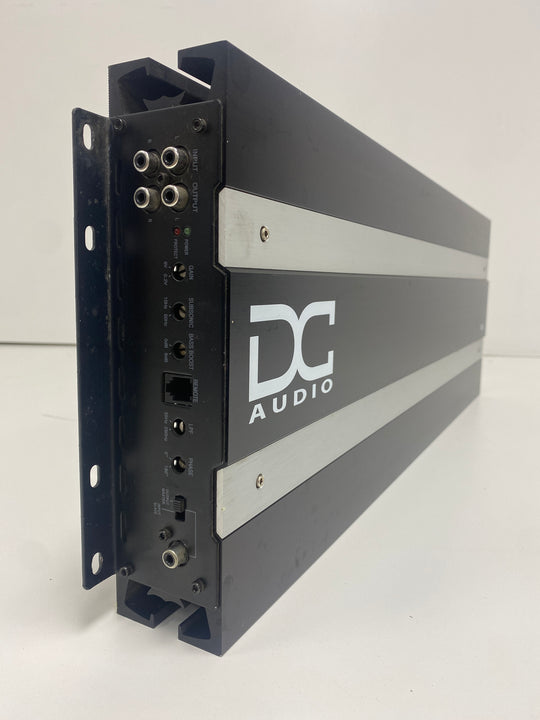

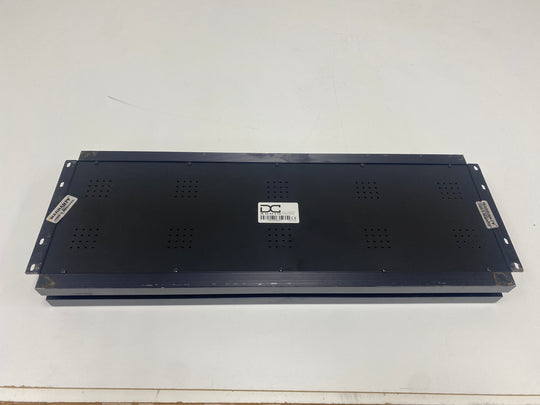

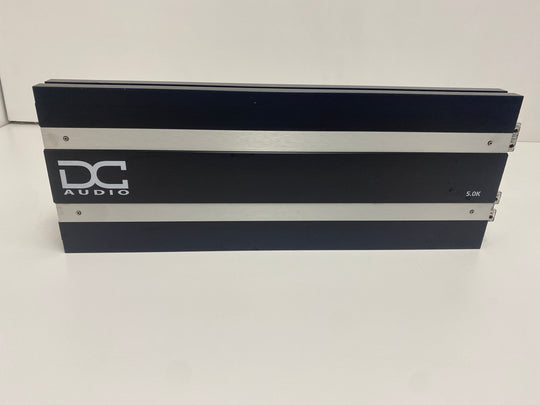

DC 5.0k - 5000 watts rms @ 1ohm Mono Amp — Used/Good Working Condition
SOLD AS IS. NO REFUNDS. SHIPPING INCLUDED
Garage Sale Item
Amplifier Description
The 5.0kw competition series amplifier is a 5,000 watt mono block. It is capable of running up to 18 volts for up to 7,300 watts. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when strapped.
It comes with a bass knob and a clipping indicator. For power inputs it will accept dual 0 awg for power and dual 0 awg for ground.
Output Power (RMS)
4 ohm 900Wx1 @ 14.4 Volts
2 ohm 2300Wx1 @ 14.4 Volts
1 ohm mono 5000x1 @ 14.4 Volts
1 ohm mono 6000x1 @ 16.0 Volts
1 ohm mono 7300x1 @ 18.0 Volts
Key Features
• 1 ohm stable
• Variable low pass filter
• Variable subsonic filter
• Variable bass boost
• Wired Bass Knob remote control W/ Clip light
• RCA Pass Thru
• Linkable

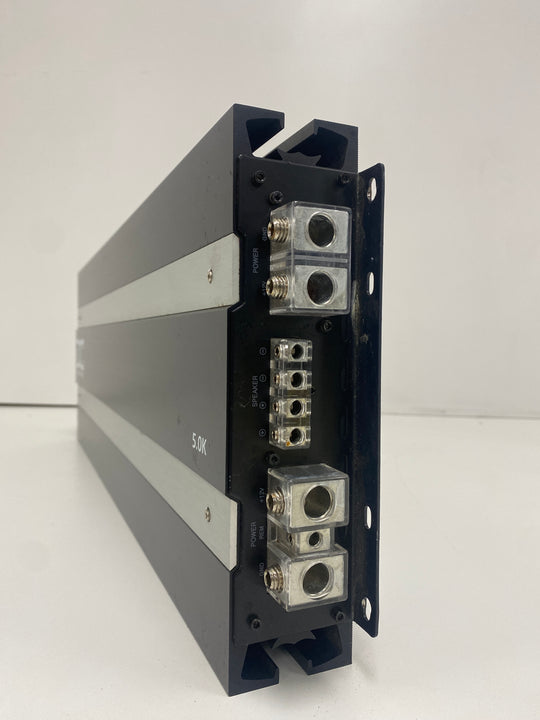

• Dual 0 Awg Power Ground Inputs
Recommended for installation :
Upgraded Alternator or 250 amps of charging power
Upgraded under hood Battery
650ah of AGM Batteries in the trunk or 80ah Lithium
Dash mounted voltage meter
0 Awg OFC power and ground
Power & ground runs from front to back batteries.
DO NOT mount to subwoofer box. (will void warranty)
AMP SPECS:
| DC Amp Model: | 5.0k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 20Hz~250Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 200< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 500 amp |
| LED Status Lights | Power and Protect |
| Master/Slave | YES |
| Heatsink Length | 25.596"/650mm |
| Heatsink Width | 9.38"/66mm |
| Heatsink Height | 2.35"/59.6mm |
As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.
