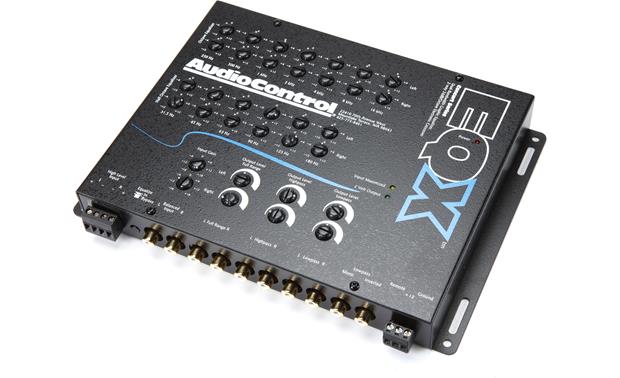

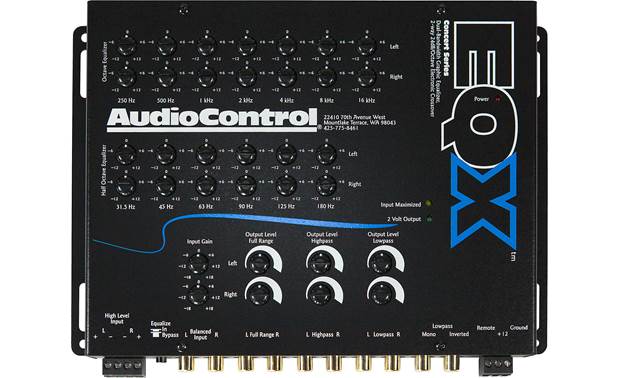

Audio Control EQX

  • Sale
  • Regular price $339.99


2 Channel Trunk-Mount Equalizer With Crossover

An impressive update of the first serious car equalizer/crossover. Thirteen-band dual bandwidth equalization plus Programmable Frequency Match (PFM) filter. Steep 24 dB/octave slope 2-way Linkwitz-Riley electronic crossover easily lets you control a subwoofer for high-impact bass. Accepts speaker level inputs for easy OEM integration.

Features

  • Stereo Equalization with Crossover
  • 6 Band, 1/2 Octave Bass EQ
  • 7 Band, Octave Equalizer
  • Two-way 24 dB/Octave Linkwitz-Riley Crossover
  • Programmable Frequency Match (PFM) Subsonic Filter
  • Line and Speaker Level Inputs
  • Balanced Inputs
  • Input and Output Level Matching Controls

Specifications

Inputs

  • Preamp Inputs: 1 (2 channels)
  • Input Gain: ±18dB
  • Speaker Level Inputs: 1 (2 channels)

Outputs

  • Preamp Outputs: 1 (2 channels)
  • Maximum Output Level: 7.5Vrms

Performance

  • Total Harmonic Distortion: 0.005%
  • Frequency Response: 10Hz-20kHz ±1 dB
  • Signal to Noise: 110dB at full output
  • Crossover Type: 24dB/octave Linkwitz-Riley

Control

  • Remote In

General

  • Power Supply: Variable Isolation Transformer Switching Supply
  • Recommended Fuse Rating: 2A

Weights & dimensions

  • Dimensions: 8.9″W x 6.9″D x 1.25″H
  • Weight: 2.7lbs (1.2kg)

In the box: EQX, Power and Speaker Connector, Manual, Warranty
