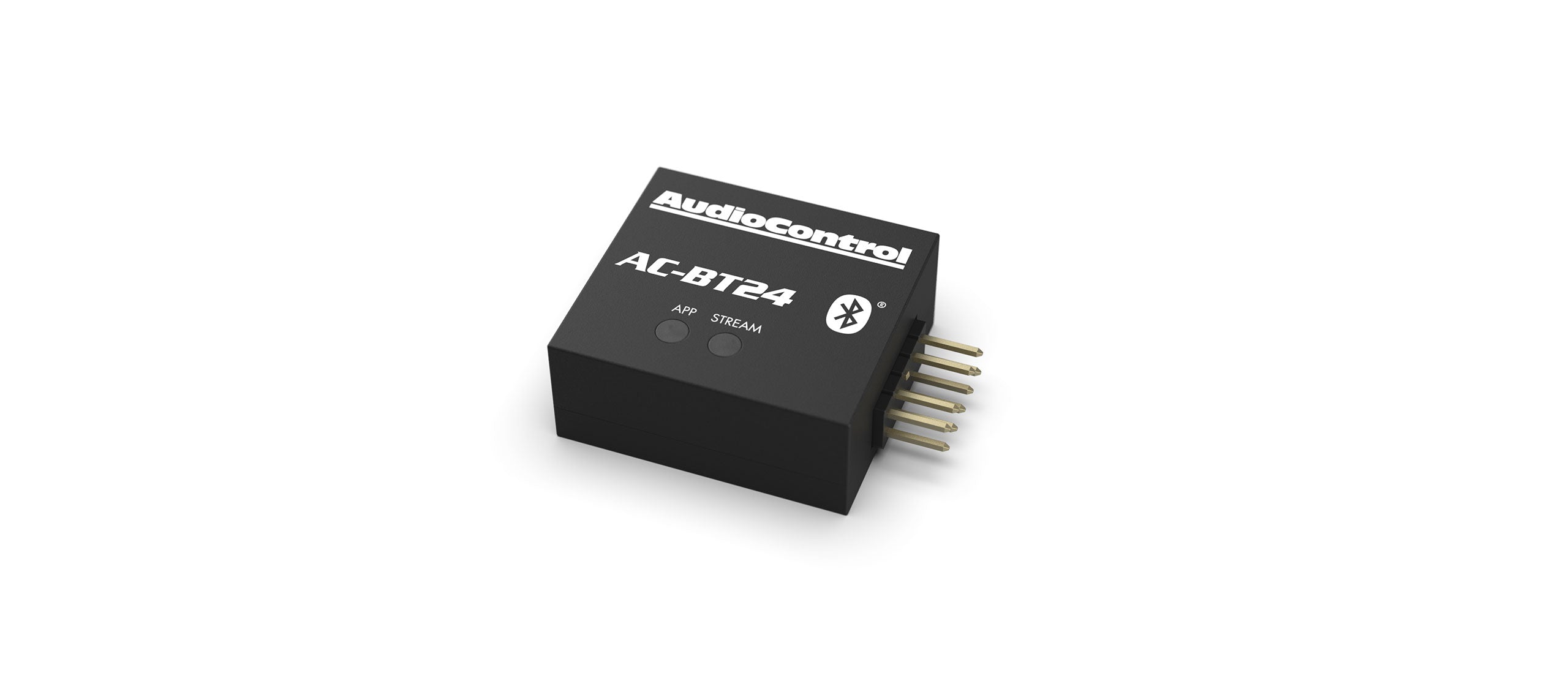

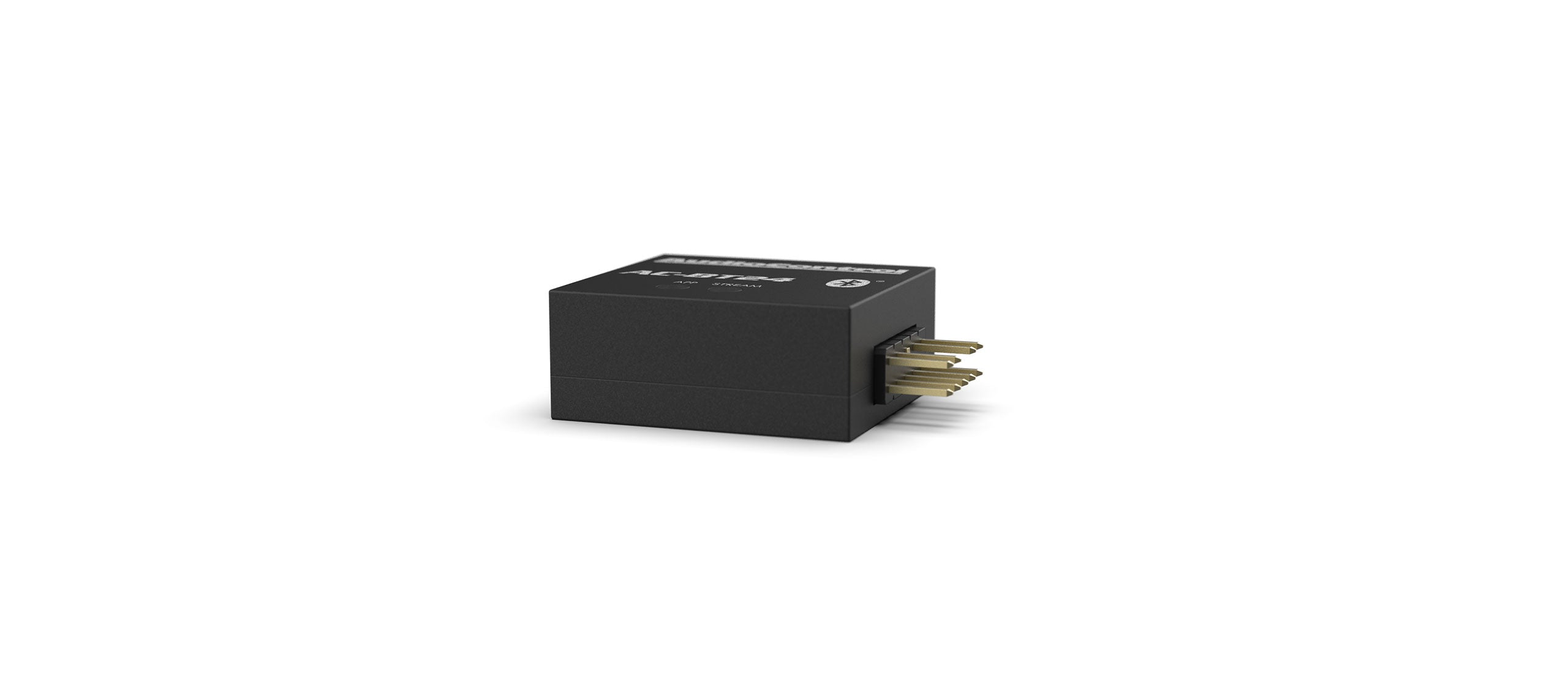

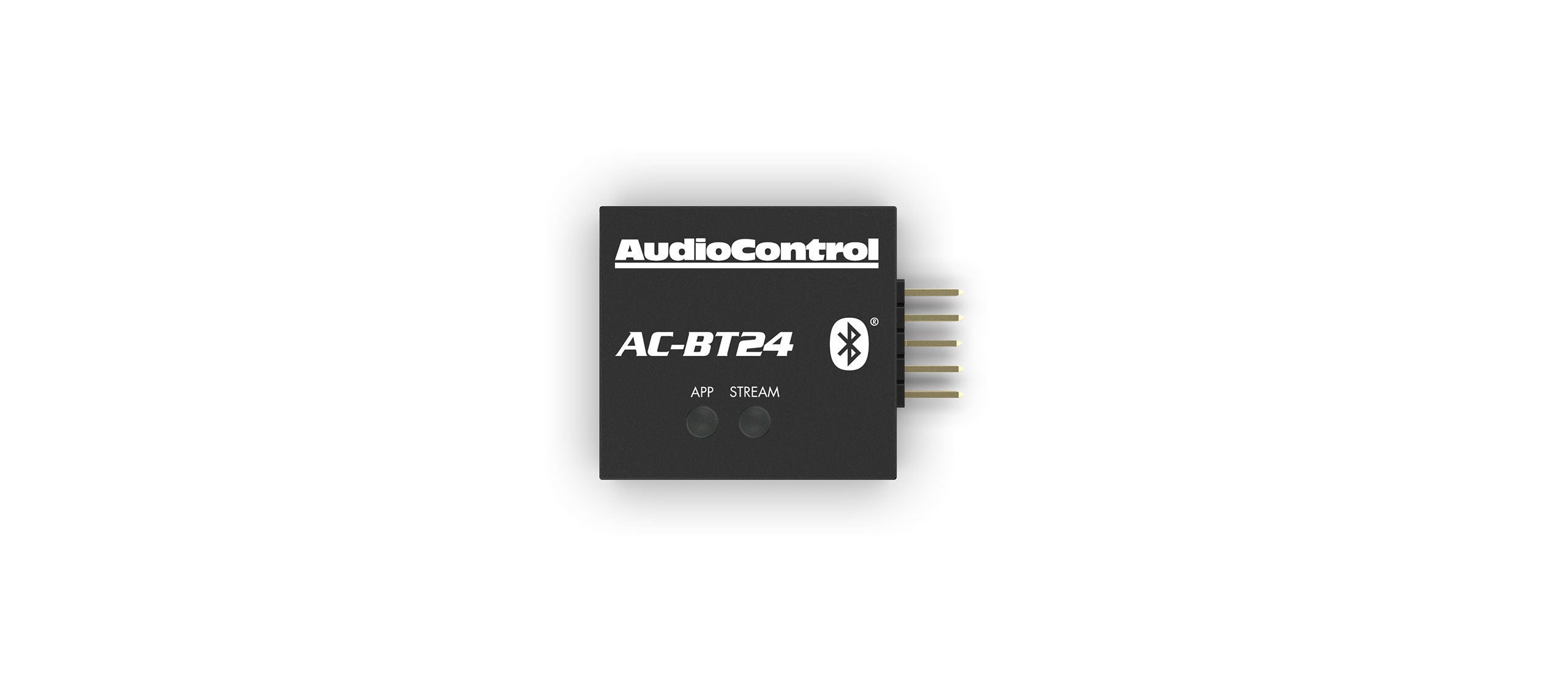

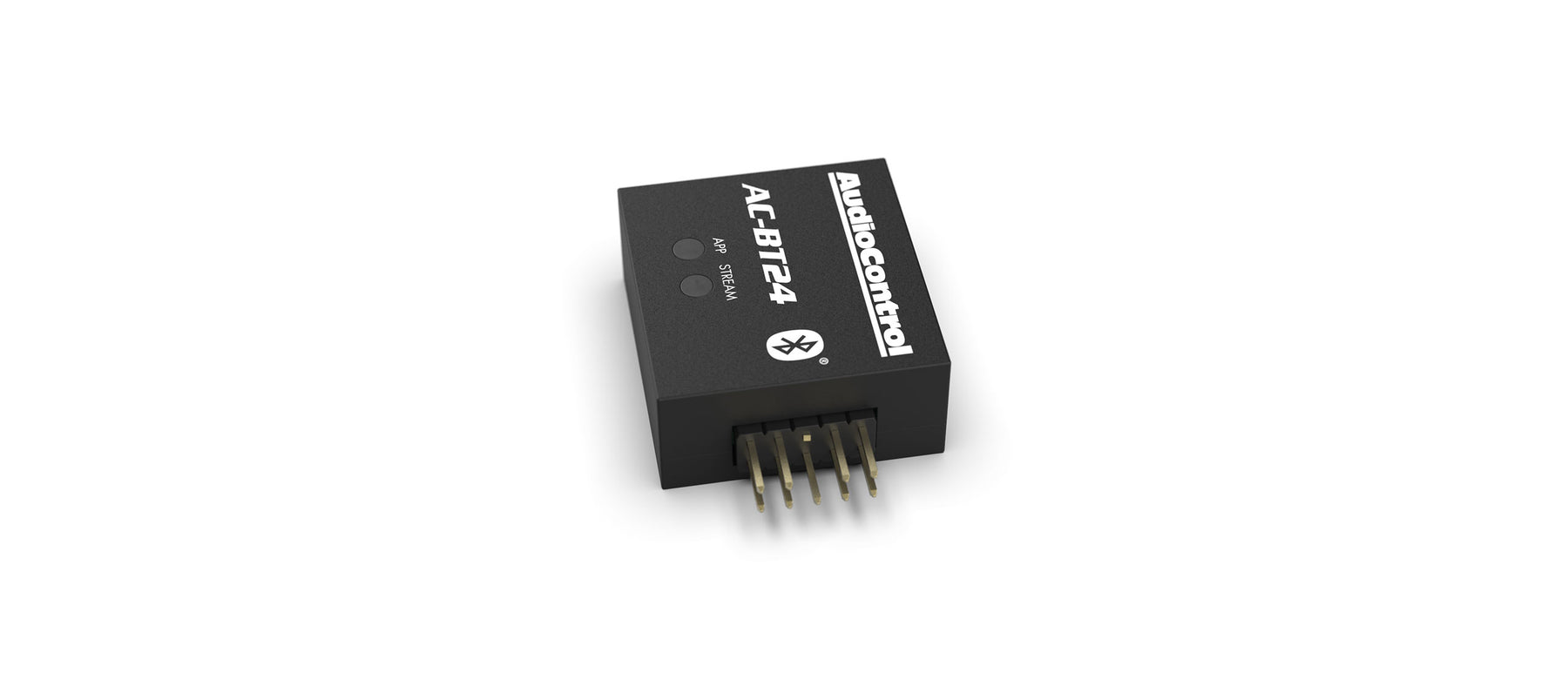

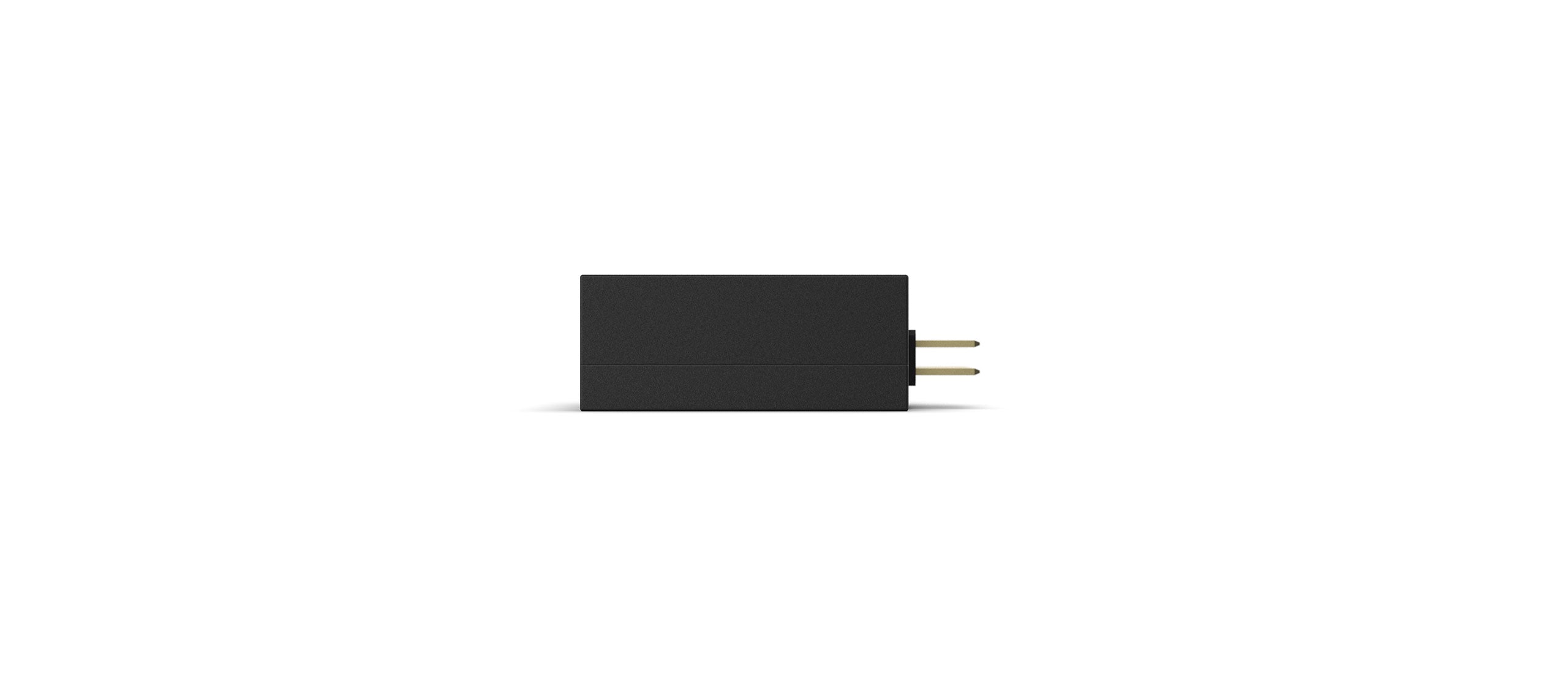

Audio Control AC-BT24

  • Sale
  • Regular price $128.99


Bluetooth® Streamer & Programmer

The AC-BT24 enables high definition Bluetooth® audio streaming (aptX HD support) and programming for AudioControl DSP products featuring the Option Port. Stream hires audio directly to the DM-810 and DM-608 DSP or the D-6.1200 DSP amplifier and program the DSP simultaneously. The AC-BT24 also allows for complete DSP setup and programming using the DM Smart DSP app for iOS and Android.

Features

  • High Definition Low-Latency Audio Streaming
  • aptXTM HD Support
  • 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
  • Wireless DSP Programming via DM Smart DSP™ app for iOS/Android
  • Simultaneous Audio Streaming and DSP Programming

Specifications

Bluetooth

  • Version: 4.2
  • aptX HD Compatible
  • UART Interface

Output

  • Dual Differential Class AB Output Stage

Performance

  • Signal to Noise Ratio: 96 dB
  • Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
  • Operating Range: 10+ meters (depending on environment)

General

  • Power Requirements: Provided by Option Port

Weights & dimensions

  • Dimensions: 1.4”L x 1.0”W x 0.5”H
  • Weight: 0.3 oz (9 g)

In the box: AC-BT24, Quick Start Card, Warranty
